Epson Stylus Photo 820 Ink Cartridges Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Replacing your ink cartridges.

  1. GRMFVXlvgSVfOkBA

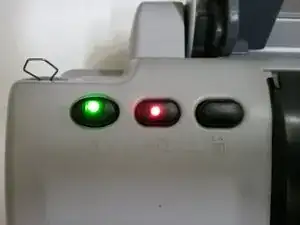

    • When you are low on ink your green power light will be flashing and your error light will stay a solid red.

  2. PspKVROgEsfSunSu
    PspKVROgEsfSunSu
    dKVBqK2qs3UgUHm2

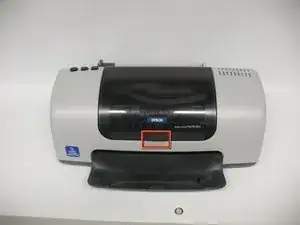

    • Lift the printer window open by pulling up on the tab.

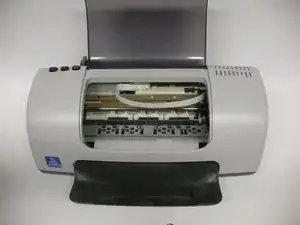

    • Your printer should now be in the same state as shown in the second picture.

  3. TkrvZsvHuQPjXFwS
    TkrvZsvHuQPjXFwS
    eNAsQB1AlV5MZi3s

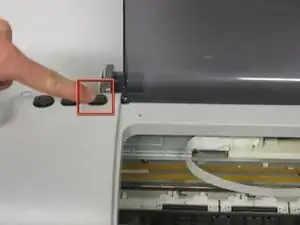

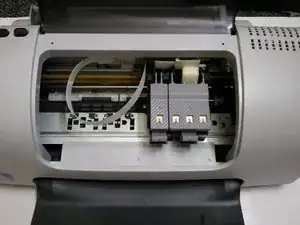

    • Press the button on the far right to get your ink cartridge holders to slide over. (See the second picture)

  4. iCsOrFgN1dOLMttx
    iCsOrFgN1dOLMttx
    BIyygWcw1YNlUOa2
    LltTuoUICOSNokQH

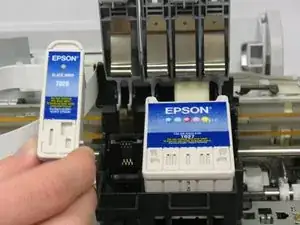

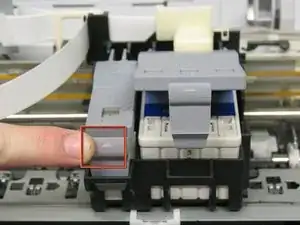

    • Press the tabs with the upward facing arrows to open the hatches as shown in the first picture.

    • Remove the ink cartridge(s) that needs to be replaced. The black cartridge is on the left and the color cartridge is on the right.

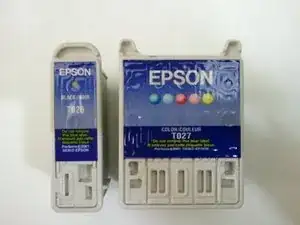

    • Make sure your cartridges are the same as the ones shown in the third picture. Non-Epson ink cartridges may not be recognized by your printer.

  5. tMZIiNPrq3iLy6Ho
    tMZIiNPrq3iLy6Ho
    dNZneweWOx5AQMCm
    JokGq5ArcKBwmh2h

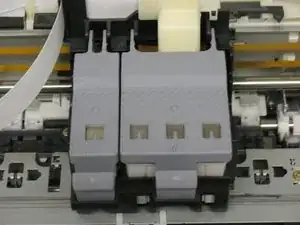

    • Insert your new ink cartridges and close the hatches.

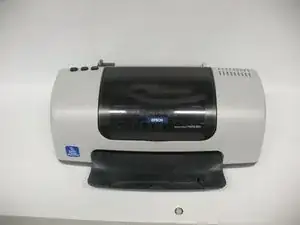

    • Close your printer door and push the ink cartridge button on the far right and again.

    • After your ink charges you're ready to print!
