Epson TM-U300 Cutter Blade Replacement

Geschrieben von: Fifo F
  • Kommentare: 0
Epson TM-U300 Cutter Blade Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

15 Minuten

Einleitung

Does your Epson TM-U300 printer not cut paper as well as it used to? Does the cutter keep jamming/making strange noises?

This guide shows you how to replace the blade.

Please go easy on me since this is the first guide I’ve ever submitted on iFixit. Thanks!

  1. LRwX2URFHUfU4aAh
    LRwX2URFHUfU4aAh
    u1xihbuYsV4t52RN
    6GZAw4LEWQok6VpM

    • Make sure the power supply/interface cables are disconnected before proceeding!

    • Open the print head/ribbon cartridge cover.

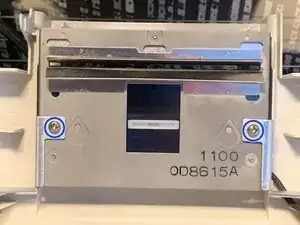

    • Remove the two Phillips screws securing the two grounding brackets which hold the cutter unit in place.

    • Set the metal brackets aside.

    • Do not pull on them forcibly – you risk tearing the grounding wires.

    • Remove the cutter, being careful not to tear/pinch the cable coming from it.

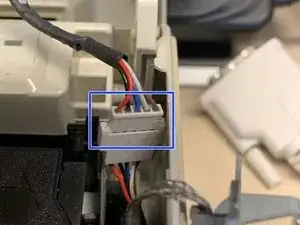

    • Disconnect the cable connecting the cutter to the printer.

  2. pO3aKcPOfUZ6IXUB
    pO3aKcPOfUZ6IXUB
    mmRfMNoiSl2CpcEr
    hY2Tj1pWkOrVawXT

    • Caution: The screws are quite soft and easy to strip.

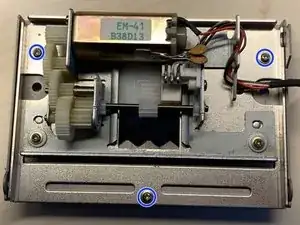

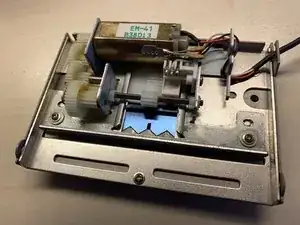

    • Make sure the cutter assembly is oriented so that the motor/gears face you.

    • Remove the three screws holding the two halves in place.

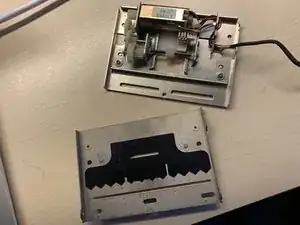

    • Separate the two halves, making sure not to damage the wires.

  3. lZ3ua1DChqXnbDWO
    lZ3ua1DChqXnbDWO
    sUupILOaXmUL1JZA
    JH4poREVIuYTQVWY

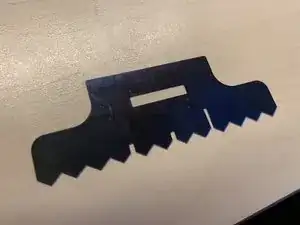

    • The blade will be accessible after separating the two halves.

    • The blade is sharp! Be careful not to injure yourself.

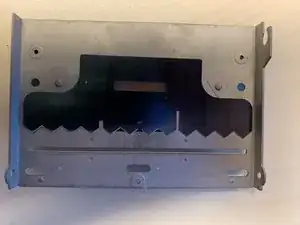

    • Make sure to note the position the blade is installed in.

    • The toothed edge should be facing the opening for the paper, with the longer of the three notches on the right (assuming the frame is oriented as pictured).

    • Make sure to route the wires coming from the cutter assembly through the groove in the left hinge of the print head cover when reinstalling the assembly into the printer.

Abschluss

To reassemble your printer, follow these instructions in reverse order.
