This guide assumes the node is already built. The guide for error-proofing starts on step 19.

  1. IUhK1QrJMvJGjR1b
    IUhK1QrJMvJGjR1b
    slJr2LuerJfRr1l4
    Hxpm5rnJtqcfvmaG
    • open Anaconda Navigator

    • launch Spyder

    • click 'Open File' and select "node_builder.py" under "\Documents\anvil"

    • click the 'Run' button

    • visit this link to get started: Node Builder

  2. BbmZUYtKKFN2ctZe
    BbmZUYtKKFN2ctZe
    RMBC1e6rYjatxeCx
    CSvlw4vsQANGPVPx
    • Obtain a solar panel with the appropriate metal plate.

    • Obtain the correctly bend metal plate.

    • The enclosure is the box where the sensor board, and wires are kept to protect from the environment.

    • Obtain the enclosure with the predrilled holes.

  3. wb4wOZeHVW6WgwoQ
    wb4wOZeHVW6WgwoQ
    NkfC6XZZtw5AZvFv
    T56MfKLTvPiDfOsa
    • Obtain the solar panel extension cable

    • Obtain heat-shrink tubing and place it around the cable

    • Cover the connection between the solar panel wire and the extension cable with the heat-shrink tubing. Then, use a heat gun to shrink the tubing, creating a water-tight seal around the connection

  4. nX6cUlCTmNS2CmXg
    nX6cUlCTmNS2CmXg
    AhEnmw6KASDwaGjf
    • Trim the solar panel extension wire so there is approximately 20 inches of wire from the connection point

    • Strip the wires as shown in the image

    • Twist the ends of the wires

  5. wAUf6bwuFFWWmNh3
    wAUf6bwuFFWWmNh3
    eEYFq3t2TuRPkbX2
    O2JrAIUXwJpGqHZt
    • Attach the solar panel onto the metal plate.

    • Using screws and a screw driver, screw the solar panel into these holes. Now that the solar panel is attached to the metal plate, attach the metal plate onto the lid of the enclosure

    • Note: the tall side of the metal plate should be on the same side of the enclosure as the holes for the ultrasonic sensor and cable glands.

    • The screws and nuts should be screwed in this matter in the holes on the sides of the box lid (meaning the nut is on the outside)

  6. fvMAAGsDhJQADyel
    fvMAAGsDhJQADyel
    MPXQC2wFCqCRCkGw
    • Obtain velcro

    • Add velcro with soft side inside the enclosure in the following places

    Don't we not need the velcro on the inside of the lid since the battery is not kept there anymore? (aka a new pic may be needed). Also shouldn't the velcro for the GPS and Cell be higher up because of the offsets? -Meagan

    Lamar King -

  7. svQFaTECDLvYpD4h
    svQFaTECDLvYpD4h
    tyZVkMkXyin4UIuP
    c4A3IbVWLaBeF2CF
    • Now we need to insert the red extension wire from the solar panel into the enclosure box

    • Obtain a cable gland

    • Screw the cable gland into the wall of the enclosure, through the small hole, as shown

    • Place an o-ring between the cable gland and outer-wall of the enclosure

    • Insert the solar panel extension wire into the cable gland as shown, leaving approximately 8 inches of wire inside the enclosure

  8. JLjvjiW2VRgbPmMg
    JLjvjiW2VRgbPmMg
    fhpHyMqoLJmJSfYK
    • Obtain a plugable header and ensure the ends of the wires are twisted

    • Screw the wires into the plugable header as shown in the picture

    • Note: hand tight is just right.

  9. UPQsYgWnOEKcqJi1
    UPQsYgWnOEKcqJi1
    TUiB1PltVLRGfDFH
    kncqhETJLPinUnvU
    • Solder a 3-prong terminal block to the ground, power, and data (#5) through-holes on the depth sensor

    • For organization, bind three wires (red, white, and black) with a small piece of shrink wrap

    • Connect the wires as shown in the picture (black to ground, red to power, white for data)

  10. wmQGEmQ5bdZAMXuO
    wmQGEmQ5bdZAMXuO
    OUHhFFm54LqgdwZL
    f4c3kSN6fkFRJ2JG
    • Assemble the depth sensor by adding the o-rings, and the connective wires in the order pictured, leaving the nut ring to the side

    • Note that the connective wires connect the depth sensor to the sensor node board. Remember, red wire is responsible for power, black is for ground, and white is for data

    • Place the depth sensor through the larger hole, and secure it firmly by tightening the nut ring

    • Make sure the nut ring is tightened securely as it will keep the enclosure water-tight

  11. 1lGyXNuhQmQn1IiL
    1lGyXNuhQmQn1IiL
    Zv2SRuZDFVEtondE
    XIOJIpxZRpQdicrk
    • Obtain the cell module (modem), GPS, and antenna

    • Insert Super SIM card into cell module

    • Attach the GPS to the connection shown (grey wire)

    • Attach the antenna to the connection shown (black wire)

    If you are swapping out a regular SIM for a super SIM, make sure to either store it in a bag labeled which node it came from and/or let Meagan know that you are replacing the SIM card.

    Ken Ferrell -

  12. XKVU1YFhTqpIowW4
    • Attach rough-sided velcro on the antenna and GPS as shown in the picture.

  13. UaMRLUL1hDHlXPtd
    UaMRLUL1hDHlXPtd
    fPHTyn6rMWPVC4LC
    gXjRYPbTdSoOqsvs
    • Obtain velcro and lithium ion 3.7V battery. Attach rough side of velcro on battery

    • Be very careful not to short the battery by touching the two wires together.

    • Obtain a block plug.

    • Twist the wires of the battery so they fit nicely in the plugable-header block

    • Screw the wires into the block plug

    • Note: hand tight is just right.

    Don't need rough side of velcro on battery? Remove 1st sub step

    Lamar King -

  14. JZZmvFkKlUN613Y2
    JZZmvFkKlUN613Y2
    qJsAGEuwQvpB2ZhT
    XDW1eSbbVk1GWEsx
    • Obtain one battery, 4 zip ties, foam, and a pair of scissors

    • Cut out two battery-sized pieces of foam

    • Sandwich the battery between the two pieces of foam and secure it using the zip-ties. Connect the zip-ties to make two extra long zip-ties

  15. WCMJLTPVuR5YbhLq
    WCMJLTPVuR5YbhLq
    nCGMwd1hHSoQMUah
    XhVbbQP4BkapPEp1
    • Obtain eight 1.5-inch long standoffs. Screw the standoffs together as shown, to make four 3-inch long standoffs

    • Screw the standoffs into the enclosure

    • Insert battery into the enclosure. Make sure the wire is on the sensor-side of the enclosure

  16. p52XmPLR6bjx2pEm
    p52XmPLR6bjx2pEm
    RmBPxGThGA5j3G2y
    4uEOtWIX2UrxN6PH
    • Obtain Open-Storm board and place 4 jumpers in the spots shown

    • Insert microSD card into board

    • Attach the cellular module onto the sensor node board in the appropriate place

    the two jumpers on the bottom left of the first image are wrong. the one nearer the charge light should span two terminals so that the charge light comes on when the solar panel is charging the battery


    not sure what the jumper on the far left on the bottom does. seems to be unnecessary as it's not included on 017A that was cleared for deployment

    Travis Dantzer -

    We could definitely edit this picture. We leave some terminals unhooked for troubleshooting if needed. If we leave them hooked all the time, we use battery (it flashes the led lights). But we could just add those if we need to troubleshoot. The ones currently connected in this photo are the only ones we need if I remember correctly.

    Brooke Mason -

  17. 1taD4LIVmJqFBLAS
    1taD4LIVmJqFBLAS
    2eHL6KBDmHMVFtxv
    • Put the board on top of the standoffs in the enclosure, and screw it in using a screw driver

    • Connect the depth sensor wire as shown

    • Connect the solar panel wire to the board as shown

    • Connect the battery wire to the board as shown

  18. PnQw1XDBm2nyTlnu
    • Attach the antenna, and the GPS on the velcro to the closest wall on the inside of the enclosure

    The board in this picture is rotated 180 degrees from typical assembly

    Brandon Wong -

  19. 33f2eHKHnTuKLWtU
    33f2eHKHnTuKLWtU
    eprF3YqhPUBSpIE4
    CmwYAAOX1GdfWLCn
    • apply the open-storm sticker to the side of the enclosure as shown

    • apply the unique node ID sticker to the two spots shown

    • print a label with the unique node ID that appears on the sticker using the label maker

    • apply the label to the board as shown

  20. ZEZDovDKixBcEvl2
    ZEZDovDKixBcEvl2
    SCpSHnfnDEDhCZaF
    inMKEIfRvVGaynGv
    • Fold wire over itself so that the portion above the hose clamp won't have slack when the black wire section is pressed against the inside of the panel

    • Obtain a hose clamp, and secure the red part of the wire to the black section using a drill fitted with the drill bit

    • Wrap a zip tie around the wire as shown.

    • Use a second zip tie to connect the ends of the first one

  21. crMXfwiyJDLLndPh
    crMXfwiyJDLLndPh
    3OQv2w2BQVEOISix
    odlbWaFxtpeZNmB3
    • Use a clamp to tighten the zip tie

    • Position each zip tie head as shown while tightening

    • Clip excess zip tie as close as possible

  22. uOZt6vxcoAtPKYCH
    uOZt6vxcoAtPKYCH
    ykAtHNX2MmOQwtVF
    ela1GsvHXWjSOKSK
    • Obtain USB power supply, plug into a laptop, and set output to 5.9V

    • Check the voltage with a voltmeter (you may have to set the power supply to ~5.8V for the voltmeter to read 5.9V)

    • Plug in the green terminal block from the power supply into the Open-Storm board solar port.

    • Confirm the solar charge LED is off.

    • Plug in a dead battery to the battery port. This step will not work with a charged battery

    • CAREFULLY turn the silver potentiometer next to the charge controller IC with a small flathead screw driver until the charge light turns on.

    • Although the screw has a phillip screw head, using a phillip screwdriver may damage the potentiometer. The hole in the center is too shallow for most screwdrivers. It is easier to use a flathead screwdriver!

    • Resource: 1. How to Select MPP Voltage on a Solar Charge Controller 2. Sunny Buddy Solar Charger V13 Hookup Guide

    *Potentially move this step up to before the charged battery and solar charger wire is plugged into the board to avoid confusion.

    Meagan Tobias -

    If the light is already on, should it be adjusted to be off and then redone to make sure the pot wasn't turned too much? Also, put direction to turn pot to increase or decrease it.

    Meagan Tobias -

    we need a step here to plug in the solar panel and charged battery again, in my humble thoughts, aka. my confused state - Jack, transcribing Meagan

    Meagan Tobias -

  23. HsPSEI5Dn4wQrgBA
    HsPSEI5Dn4wQrgBA
    tK32jBvUDLVSuxGu
    nN4WnfCSbRvh4F1u
    • obtain a master lock and a pair of scissors

    • cut the lock and key out of the packaging

    • set the lock to the default combination, 0-0-0-0, open the lock

    • put the key into the lock and twist clockwise 90 degrees

    • while the key is still twisted, set the combo to 2-2-4-5

    • remove the key, and the lock is ready to go

  24. w656tjBOaiCPPDK1
    w656tjBOaiCPPDK1
    QsJegxOyuyHUYIWT
    YFeLsqhxGMZjmiMF
    • obtain the materials in the quantities shown

    • screw the U-bracket onto one of the 8" strut channels, using one of the 1/2" hex bolts and the 1/2" strut channel nut

    • attach the remaining 8" strut channel piece to the U-bracket, using two 1/2" hex bolts and two 1/2" hex nuts

    • be sure not to center the strut channel you are attaching the the U-bracket, instead make one side of the U-bracket flush with end of the strut channel (as shown)

  25. gKSkgpTkbNcuCcaH
    • insert the two 5/16" strut channel nuts into the back of the horizontal strut channel as shown

  26. TtYU51DhwhbvmuPV
    TtYU51DhwhbvmuPV
    PXgVMSdJPqNWNuVY
    bVhFLNIVcisn6n5x
    • attach the winged strut channel bracket to the 8" telespar using the remaining two hex bolts and hex nuts

    • when tightening the hex nuts, ensure the edge of the nut points directly outwards (as shown), or else the struct channel piece will not slide inside

    • confirm the T-shaped strut channel piece slides into the telespar, and the handle is now finished

  27. ExQmq1fPchVjIwKw
    ExQmq1fPchVjIwKw
    iOAjyKpGHZXejVmJ
    • Attach the reinforcement rails to the back of the node using two 5/16" hex bolts, two 5/16" hex bolts, and two 5/16" 1.25" OD washers. Insert the bolts the bottom two holes of the node enclosure, using the bottom holes of the rails as shown in the image.

    • Line up the top holes of the rails with the top node enclosure holes and then tighten the bottom bolts.

  28. oGs4BOeCr2lDuIgH
    oGs4BOeCr2lDuIgH
    X6YkHDiR2p6RjMIq
    tixBJQHwCGL5dUGg
    • screw the node enclosure onto the strut channel using the two 5/16" hex bolts and two 5/16" 1.5"OD washers. Be sure to put bolts through the reinforcement rails.

    • removing the T-shaped strut channel piece from the telespar makes this step easier

    • slide the T-shaped piece back into the telespar

  29. MiSgbULywQJpFehN
    MiSgbULywQJpFehN
    UDYjxXqO5S3S3Hhl
    h5fpLjieEOIAMyHC
    • this is what the node should look like on the inside

    • make sure the battery is plugged in

    • attach the lock to the outside of the enclosure

    • return to Node Builder for instructions on how to drop off the node at the testing rack

    The board in this picture is rotated 180 degrees from typical assembly

    Brandon Wong -

  30. Wh1STqN6WEHu2eyM
    Wh1STqN6WEHu2eyM
    cXuo46HYMdSsvo4Z
    fCf44Rd1IWKhCNVs
    • In-lab: Make sure the sensors node is connected to the cell network. Ask administators to connect it if it's not.

    • If doing this by yourself then follow the next steps:

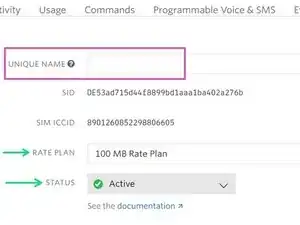

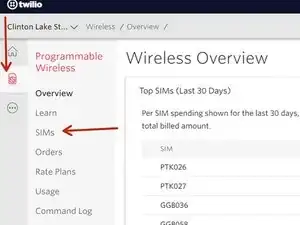

    • Step1: Check for "Active" on the Twilio website. Use the MEID to search the SIM repositoy on Twilio. If it's active then you are done.

    • Step 2: If the search on Twilio did not return anything then check the Node has a SIM card. If yes, then check and update the 'SIM-Node ID pairings' spreadsheet here. If the Node does not have one, get a SIM from an admin and fill in the spreadsheet linked above.

    • Step 3: After the node gets a SIM card and the infomation is logged in the 'SIM-Node ID pairings' spreadsheet proceed to activate the SIM card. You will have to log into the Twilio website and activate it. Consult the attached picture to see how the setting should be set.

    • Unique Name = Node ID (i.e PTK001). If the Node ID is already taken then doulbe check the ID parings here. If it's all good, then edit all the Twilio unique names accordingly.

  31. dCAWpjSCu5dcLNvw
    dCAWpjSCu5dcLNvw
    EITVIgfqgFY4JMaf
    KrExV5nTjIVhBwXf

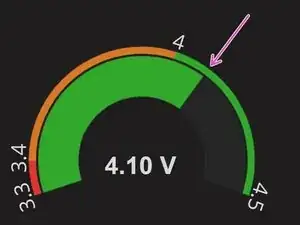

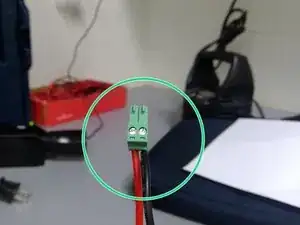

    • Insert a fully charged battery into the sensor node. Plug in the battery before the solar charger.

    • Make sure the battery leads are wired correctly. The terminal block and leads are shown here.

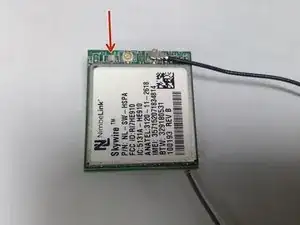

    • A green LED light on the cell modulem should turn on.

  32. iWa3AD6HTNQTGqY5
    iWa3AD6HTNQTGqY5
    PKLeLDhmTCGlXlWX
    Q3YWORyfBlAArLtJ

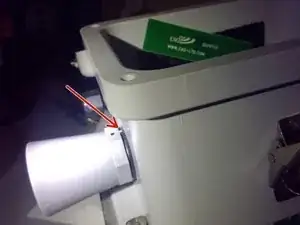

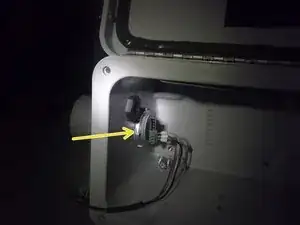

    • Make sure that there is an O-ring on outside of the node.

    • make sure to tighten the screw on the inside snuggly.

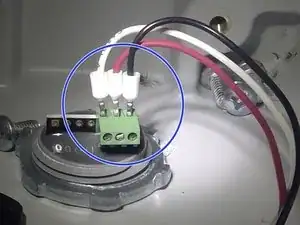

    • Make sure the wires are connected in this manner. From the edge it should be "black, red, white". The ultrasonic sensor has labels on it and GND (ground) is on the very end. Hence, the black wire on the end.

    • The other ends of the wires are connected to a 5-prong terminal block. That terminal block should be connected to the board at the following pins: P12.3 : White wire, P12.4 : Red wire, GND : Black wire.

  33. AY1dovPdgLRvHeIF
    AY1dovPdgLRvHeIF
    jBPpqOZeMRmxLWj2

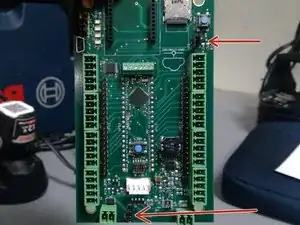

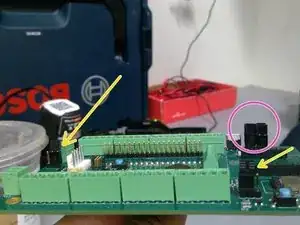

    • Make sure all the jumpers on the board are connected properly. They are labeled JP1 and JP2

    • can use the mnemonic "top-down, bottom-up".

    • Another view.

    • These jumpers should be disconnected when ready to deploy. This is done to save battery.

  34. YnTTar1RPZpO4Znt
    YnTTar1RPZpO4Znt
    QSDsdfnJnFPi6YyV

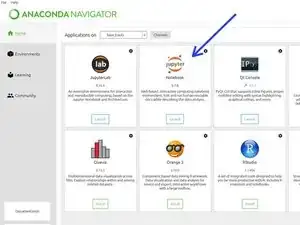

    • The Node ID is determine by the location where the node will be deployed. Ask and administator where to deploy. Then, find all the site details here.These include site visits, pictures, addresses, and notes.

    • Ask admin to do this step. Alternatively, ask admin for the scripts that assigns the Node ID and the reporting time interval. Assign both using the Anaconda Navigator's Jupyter Notebook feature. You will need the sim card's MEID and the desired Node ID to do this. The google drive has a spreadsheet with MEID's and Node ID's here. Keep this updated.

    • Set the reporting frequency to 5 minutes!

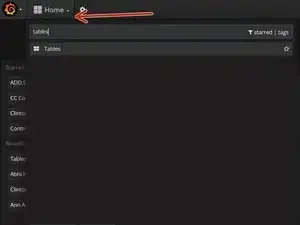

    • Once assigned, the readings will be pushed to Grafana. To double check that it was assigned successfully you can consult the 'Tables' Dashboard on Grafana. Ask administarator for Grafana credentials.

  35. bCNLkD3hAmSNbJK5
    bCNLkD3hAmSNbJK5
    OKYwHp4lTAbXhKSR
    ngFjisDWgl2YTfdT

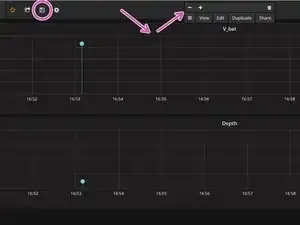

    • Assumption: you have the Grafana credentials.

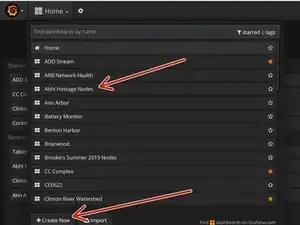

    • Use an existing Dashboard (i.e. Abhis Hostage Nodes) or create one.

    • To enter the edit panel click the header and it will appear. If you created a new dashboard, then you must create a 'v_bat' panel and a 'maxbotix_depth' panel. They should be labeled to indicate battery voltage and depth. Always save changes frequently.

    • Once inside the edit panel: It's possible to edit an already existing entry and only update the Node ID and alias. Alternatively can click on 'add query'. When adding a new query get an admin to supervise while you do it.

    • Use this dashboard exclusively for testing and delete already deployed nodes. Sensors that have been deployed should be promoted to their permanent Grafana Dashboard. i.e: Cinton River, Huron River,...

  36. PBdWbWvMY3QOBa4S
    PBdWbWvMY3QOBa4S
    ZBr5vAKYOpKuQG5o

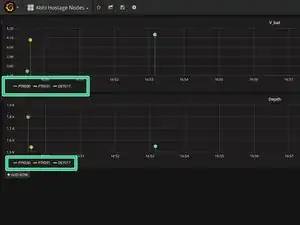

    • Click on the nodes INDIVIDUALLY to see that the reported values are sensible. If the depth reading is -1 then there is an ultrasonic sensor problem. If the depth value is 0, then the ultrasonic sensor does not have 0.5 meters of required space between itself and what it's reading.

    • Node must report successfully for 12 hours

    • Bring at least 1 extra working nodes when deploying!

  37. ZxhMFqOANHLaI6rb
    • Find the address by viewing the site visit documetation here. Read the notes about the potential hazards and where to park.

    • prepare emergency phone numbers and note the closest urgent care.

    • Choose nodes that are close near each other. Use Google Maps 'add-a-stop' feature to check proximity.

  38. KvjKJsjyEaG63Ubd
    • Make sure to take all required tools. The tools required should be deduced from the site visit inspection and notes corresponding to the location.

    • The van already has a tool kit. The google drive has a document specifying which tools belong in the van.

    • Collect hardwarespecific to sites, enough fully charged batteries for nodes, at least one fully charged 12v battery, enough locks, and drinking water.

    • Hardware inlcude strut channel, bolts, nuts, brackets, C-clamps, etc.

    • Pump gas here.

  39. gXBjbT1Dd4LAJpjG
  40. hJKl3YgVhOJG1siL
    • After the node is deployed and there is no interference from it being hadled, wait for a reading.

    • The reporting frequency should have been set to 5 minutes! As required in step 21 of this guide.

    • If the reading doesn't appear or it's -1, then reach out to someone in lab to reassign a working node to that location. Take the faulty node back to lab. Donnot diagnose in the field.

    • Assumption: You brought extra working nodes.

    • Requirement: Bring extra nodes.

Gerardo Longoria

Mitglied seit: 02/08/18

328 Reputation

0 Kommentare
