Ersa i-CON 1 Display Replacement

Geschrieben von: Sebastian Dorr

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

2 Minuten

Einleitung

If your Ersa i-CON Display is broken, use this guide to get your soldering station working again with a new display.

Replacement displays are available from kurtz ersa under the part number 3EBLCD128X64 and Orient Display under the part number AMG12864PR-G-B12WTDW.

Pull off the control knob using a nylon spudger.
Alternatively, a flat head screwdriver can be used, but be cautious of potential scratches on the metal faceplate.

Flip the station over and remove the 4 T20 screws.
Flip the station back onto its base and lift the top cover up and off the station.

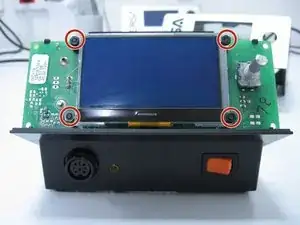

Use pliers or a wrench to unscrew the 4 plastic nuts holding the display in place.

Carefully flip the display upwards.

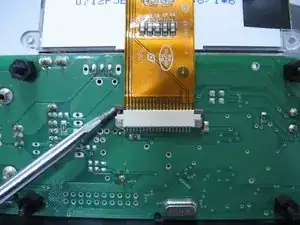

Loosen the display connector by pushing up the small brown bars on both sides of the connector with a spudger or similar tool.
Pull the ribbon cable from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
