Escort Passport 9500IX Button Board Replacement

Geschrieben von: Kennedy Morales
  • Kommentare: 0
Escort Passport 9500IX Button Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

8 Minuten

Einleitung

Are the buttons on your radar not responsive? If so, the button board could be damaged. Follow this guide to replace your button board.

  1. MlYNlfLwIqFInckN

    • Remove the three 1.2 mm Phillips #1 screws on the back of the device.

  2. q3KytcKK2BDUo1Uy

    • Pry off the back panel of the radar using the nylon spudger.

  3. lQBbxHDcL1goYVBb
    lQBbxHDcL1goYVBb
    pvxkp1BVDCqf4jCO
    FTg52Pr3xidqfXfL

    • Carefully pry the grey frame off the black plastic covering using the nylon spudger.

  4. DV13vHOiKRvybOja
    DV13vHOiKRvybOja
    jRbIBukDfhGThMu5

    • Slowly peel the buttons off the button board.

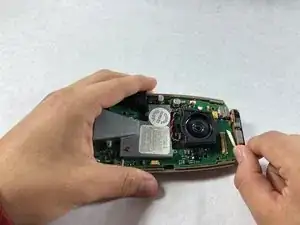

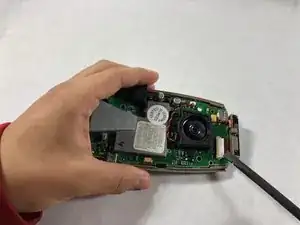

  5. vlXI1ITRVARUWnMA
    vlXI1ITRVARUWnMA
    RRwf3gMMDGr2EDyt
    Pib32x3qtELqOJNv

    • Detach the orange flap on the motherboard.

    • Carefully remove the motherboard from the grey plastic frame.

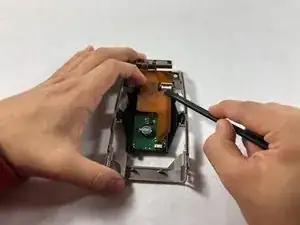

  6. WieJ1tNSDHMCKBXI

    • Detach the orange flap directly behind the button board.

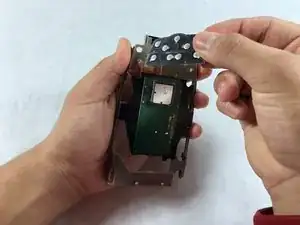

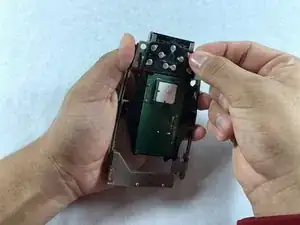

  7. YRU5Ox2PeLmeoMwI
    YRU5Ox2PeLmeoMwI
    IKjSQbyeoBbIW6C5
    6eOWsAZVwrT4onZ3

    • Carefully pull out the button board from the grey frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
