Escort Passport 9500IX Button Replacement

Geschrieben von: Kennedy Morales
  • Kommentare: 1
Escort Passport 9500IX Button Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Are the buttons on your Escort Radar 9500IX's cracked or jammed? If this is the case, then follow this guide to replace the buttons on your radar.

  1. MlYNlfLwIqFInckN

    • Remove the three 1.2 mm Phillips #1 screws on the back of the device.

  2. q3KytcKK2BDUo1Uy

    • Pry off the back panel of the radar using the nylon spudger.

  3. lQBbxHDcL1goYVBb
    lQBbxHDcL1goYVBb
    pvxkp1BVDCqf4jCO
    FTg52Pr3xidqfXfL

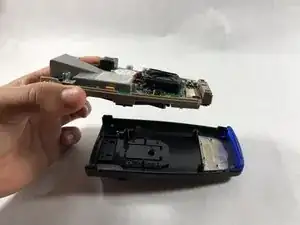

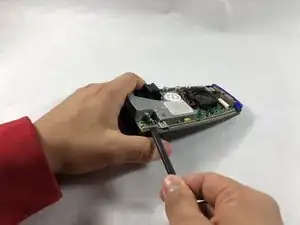

    • Carefully pry the grey frame off the black plastic covering using the nylon spudger.

  4. DV13vHOiKRvybOja
    DV13vHOiKRvybOja
    jRbIBukDfhGThMu5

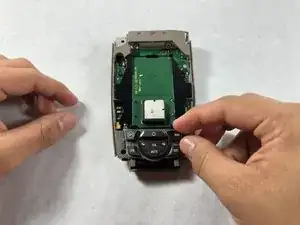

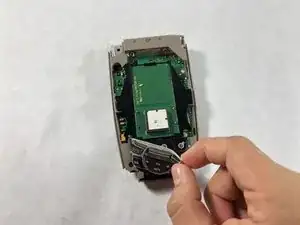

    • Slowly peel the buttons off the button board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
