Escort Passport Max2 Display Replacement

Geschrieben von: Kelsey Ferrenberg
  • Kommentare: 17
Escort Passport Max2 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

If the device's screen has distorted images, or is blank and the troubleshooting guides don't seem to fix it, or if the device's screen is cracked, this guide will explain how to replace it.

  1. RND4wDSsOGehEDM1
    RND4wDSsOGehEDM1
    4vr5umwpvjOkbrl2

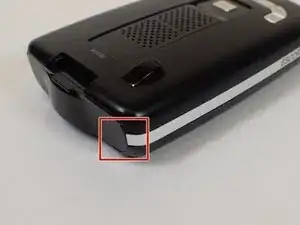

    • Inser the flat end of a spudger into one of the two notches and pry off the case.

  2. QQIkFZ1kjLMRUIQU
    QQIkFZ1kjLMRUIQU
    QDJ2XiqjlXYcrnpP

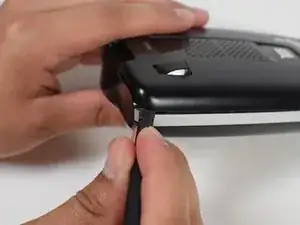

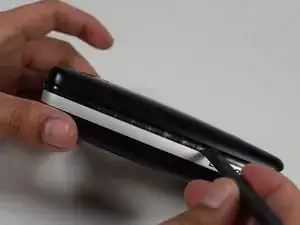

    • Slide the spudger around the perimeter of the radar housing until the case separates.

  3. r6NEaLNTx1F2V2KM
    r6NEaLNTx1F2V2KM
    wMwGklQnRQOD2En5

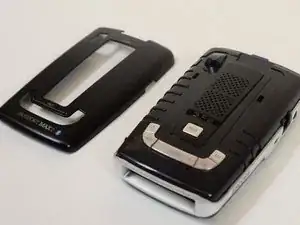

    • Repeat these steps to remove the other side.

  4. yLNLbNUrIWvG2xbQ
    yLNLbNUrIWvG2xbQ
    HaakxkfMk1O2fUJw

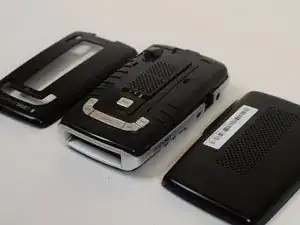

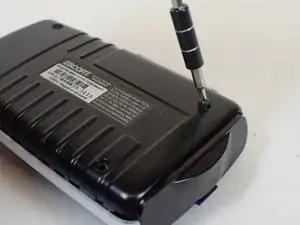

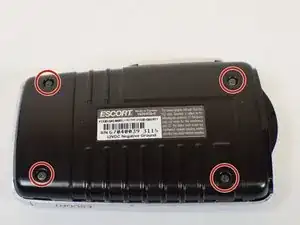

    • Remove the four 9mm Phillips #1 screws from the bottom of the radar.

    • Remove the bottom case.

  5. DosUPHDcmGYaUKRu

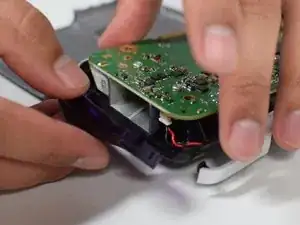

    • Gently spread apart the thin silver frame that wraps around the device and remove the dark purple lens.

    • The silver frame can easily pop off of the device now that the bottom metal case has been removed. Don't worry if it comes off all the way. It can easily be put back in it's place.

  6. Sj3Yei2rhWVhqBmX
    Sj3Yei2rhWVhqBmX
    aUredATyrURfphdU

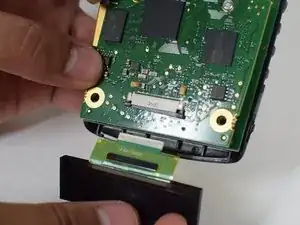

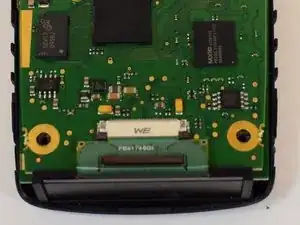

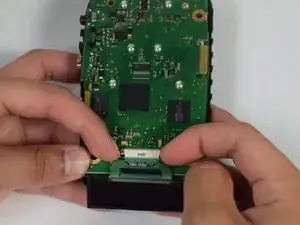

    • Push the two black tabs down to release the ribbon attached to the display.

    • The display ribbon should now easily slip out from under the white strip.

    Hola qué tal , necesitaba comprar el display de passport detector radar

    Carlos medico -

    Donde puedo comprar el display de passport Max

    Carlos medico -

    Va aqui para display, possible…

    go here for the display, possibly.

    https://www.raystar-optronics.com/oled-g...

    Kenye -

    Se mea estallando el display

    Carlos medico -

    Hello, i want to buy display for my escort passport max. thank you

    b3sty3_24 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
