Etón Scorpion Battery Replacement

Geschrieben von: Bobrobot1
  • Kommentare: 3
Etón Scorpion Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

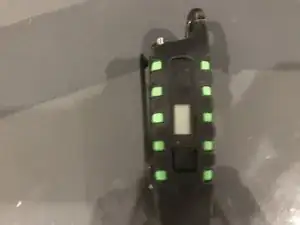

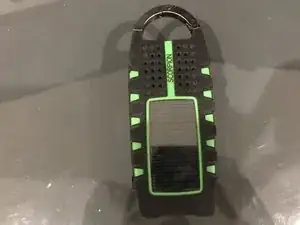

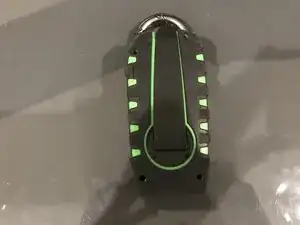

  1. CgulyStGuf2en6QB
    CgulyStGuf2en6QB
    HDKf6YtRCOx5XfPX
    ILtY6iCqjmXJHBXh

    • Your device should look like this.

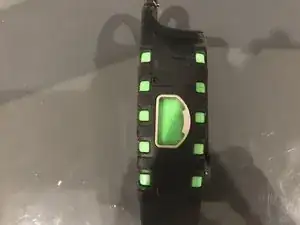

  2. SEmcZS4b6Tb1nqpF

    • Turn the unit on its side and look for this panel.

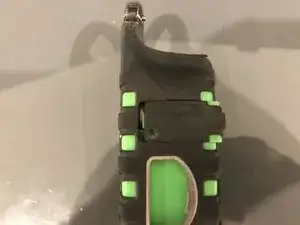

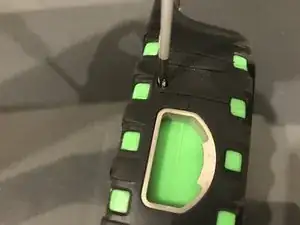

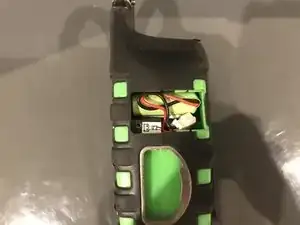

  3. exVxyoeCNfWEhNWc
    exVxyoeCNfWEhNWc
    GbhwpmVZChP2xAel
    pUXesoGjkvhY11q1

    • Unscrew this screw with a Phillips head #0 screwdriver.

    • Remove the panel.

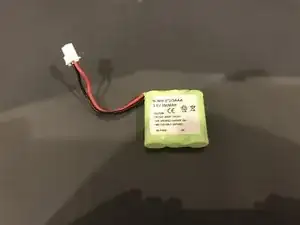

  4. fRvwXsrLrbwsHJek
    fRvwXsrLrbwsHJek
    GvE4EKR21YyHbOOT
    Ja41FmM1X236MnXV

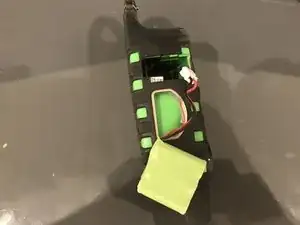

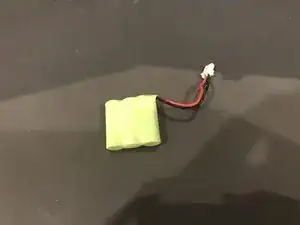

    • Pull out the battery and disconnect the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order, and remember to connect the connector when putting in a new battery.

Tinte & Feder

Bobrobot1

Mitglied seit: 13/07/18

4358 Reputation

3 Kommentare

What specific battery did you purchase to replace the original battery pack? My battery needs to be 1.25” by 1.25” to fit into the compartment. Many of the batteries I have found on Amazon that claim to be replacement are much larger an won’t fit into the compartment.

Mark Chapin -

https://www.amazon.com/South-33053-Cordl...

This battery seems to be a good fit. It says in the question and answer section that it’s 1.2"" x 1.15"x 0.42".

Bobrobot1 -

Need to switch the wire positions. What's the best way?

David -
