Etekcity Lasergrip 1080 Battery Connector Replacement

Geschrieben von: Patrick Crawford
  • Kommentare: 0
Etekcity Lasergrip 1080 Battery Connector Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

3 Minuten

Einleitung

This guide will show you how to replace the battery connector. This replacement is necessary if a new battery is installed and the device still won't work or if the wires break. This will use a screwdriver and a soldering iron. Be careful when using the soldering iron as it is very hot. There is a link to a soldering guide in the Troubleshooting section of the device page.

  1. obB3lByTCoqYvRUO

    • Pull the battery cover away from the handle by gripping near the thumb groove.

  2. ctmGSaQ2TGtifROG

    • Gently pull the battery out of the handle.

    • Excessive force could damage wires.

  3. a2LiF3NQYAQUaPYB
    a2LiF3NQYAQUaPYB
    eLLJoJqEoxf2FdSI

    • Disconnect the battery by pulling the connector away from it.

    • Positive first

    • Negative second

    • When replacing the battery, this order is reversed.

  4. 1FA4PUHdCJVkbtZf
    1FA4PUHdCJVkbtZf
    sCEGVNcVRN5YjESj

    • Remove the battery cover from the device by pulling it straight out.

  5. 2pkWvb1qcFBSAqnd
    2pkWvb1qcFBSAqnd
    15wgfHxNNV4sxM3j

    • Using the plastic opening tool remove the front and rear yellow covers.

    • When removing the back cover, be careful not to lose the buttons as they are not connected.

  6. lWONdPGophDfPJTo

    • Remove the two 3.1 mm Phillips #0 screws.

  7. 4RWtuOUvAwpZZp2F
    4RWtuOUvAwpZZp2F
    YEQFh6oXMhtSdxgh

    • Pull the two halves apart.

    • Be careful not to lose any components on the inside.

  8. kLZHcrQCSHEtn3RP

    • Realign the buttons with the button terminals.

    • Red terminal to red button.

    • Orange terminal to orange button.

    • Yellow terminal to yellow button.

  9. PArZmmUkKXKSgBbb
    PArZmmUkKXKSgBbb
    mOPTdZYgxcILEZTs

    • Carefully pull the trigger out.

    • The trigger is spring loaded, so be careful that you do not lose the spring as you pull the trigger out.

    • To put the trigger back in, align the peg with the hole in the handle and align the shaft with the button terminal.

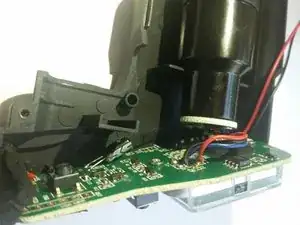

  10. BJhokEH53Bn1IEPm

    • Pull the motherboard out of its slot in the device.

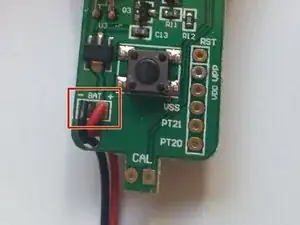

  11. xfEtxE3HJCMmOrNW

    • Use a soldering iron and melt the solder where the battery connector's wires are attached to the motherboard.

    • Soldering irons are hot and should only be handled by those who know what they are doing and are wearing proper safety equipment. There is a link to a soldering guide in the Troubleshooting section of the device page.

Abschluss

To reassemble your device, follow these instructions in reverse order.
