Etekcity Lasergrip 1080 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace a faulty screen. This will use a screwdriver and a plastic opening tool. There are no hazards involved with this guide.

Werkzeuge

Schritt 1

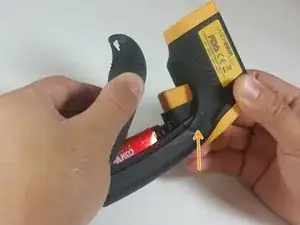

Pull the battery cover away from the handle by gripping near the thumb groove.

Schritt 2

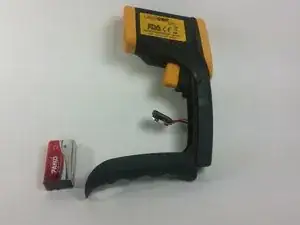

Gently pull the battery out of the handle.
Excessive force could damage wires.

Schritt 3

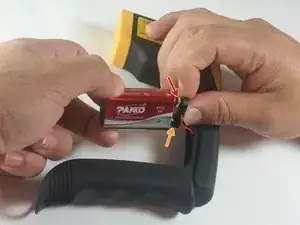

Disconnect the battery by pulling the connector away from it.
Positive first
Negative second
When replacing the battery, this order is reversed.

Schritt 4

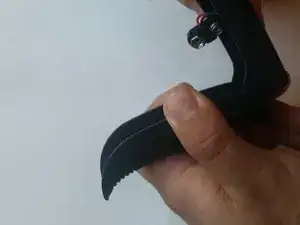

Remove the battery cover from the device by pulling it straight out.

Schritt 5

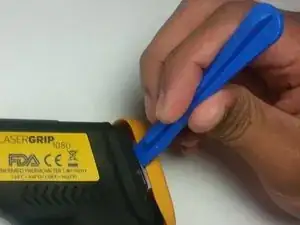

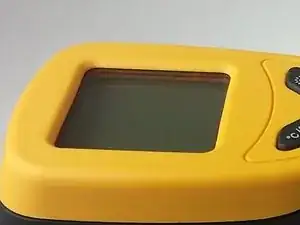

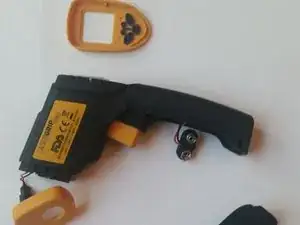

Using the plastic opening tool remove the front and rear yellow covers.
When removing the back cover, be careful not to lose the buttons as they are not connected.

Schritt 6

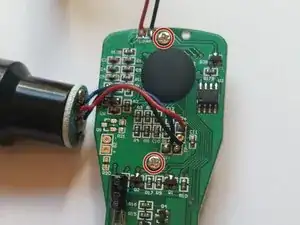

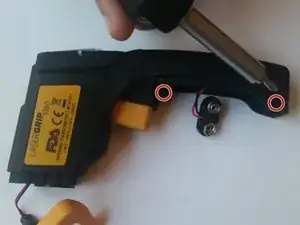

Remove the two 3.1 mm Phillips #0 screws.

Schritt 7

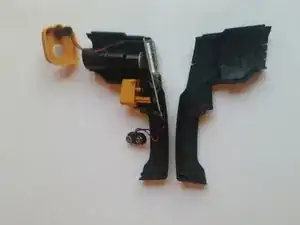

Pull the two halves apart.
Be careful not to lose any components on the inside.

Schritt 8

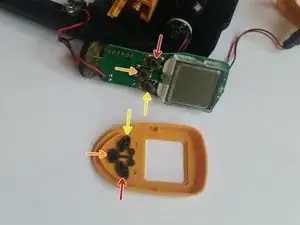

Realign the buttons with the button terminals.
Red terminal to red button.
Orange terminal to orange button.
Yellow terminal to yellow button.

Schritt 9

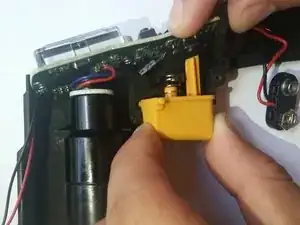

Carefully pull the trigger out.

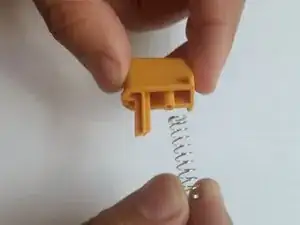

The trigger is spring loaded, so be careful that you do not lose the spring as you pull the trigger out.
To put the trigger back in, align the peg with the hole in the handle and align the shaft with the button terminal.
