Einleitung
In the case that your solar panel is damaged or malfunctioning, you may need to swap it out. But no need to worry, it's actually a very straight forward fix that just involves 6 screws and 4 plugs!
Werkzeuge
-
-
Pull the plastic tab on the battery compartment cover panel to loosen it, then pull the panel off.
-
-
-
On the bottom of the device case's face are two T10 screws. Use a T10 Torx screwdriver to remove the two screws.
-
-
-
While using the T10 screwdriver, remove the two T10 screws on the back of the device's case.
-
-
-
On the bottom of the device's case there are two rubber feet. Pry the rubber feet off of the case.
-
-
-
The solar panel is connected to the motherboard through a simple socket, just pull up to unplug.
-
-
-

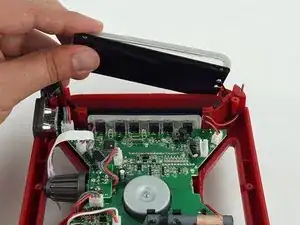

The solar panel is not glued or soldered in place, you can simply lift the panel straight up from it’s seating to remove.
-
To reassemble your device, follow these instructions in reverse order.
