FLSUN QQ Print Surface Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

1 Stunde

Einleitung

Note: This guide is for the FLSUN QQ not the newer QQ-S

If you own a FLSUN QQ and the original bed is worn out, or if you simply want to upgrade for easier print removal, this guide will walk you through the process.

Recommended: If you have not upgraded to the leveling switch I recommend the FLSUN QQ Leveling Sensor Replacement guide first so that you can more easily level after installing the new print surface.

  1. qJvRrvtPUiKXPOTN
    qJvRrvtPUiKXPOTN
    eYS2ntUXBb1pubOC
    hJ5FZ3OhZpMDtGtm

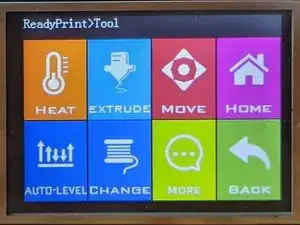

    • Power up printer

    • Tap Tools

    • Tap Heat

    • Tap Extrude 1 to switch to Bed

    • Tap + till the bed temp is set to 70º

  2. lucpk24fBbfJFtoj

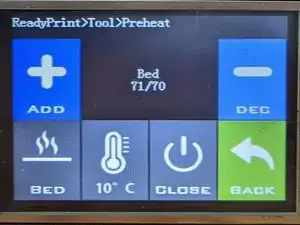

    • Heating the bed will melt the adhesive and make removing the old print surface much easier

  3. WIsqDsRYHhaNdKeS
    WIsqDsRYHhaNdKeS
    EaZUqcafmPBM5waI
    EVT4ZK4xQ4cxKfmf

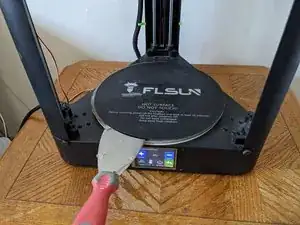

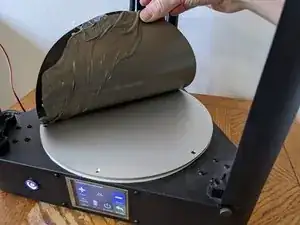

    • Use the putty knife to start peeling up the old bed.

    • Once you get the edge started you should be able to peel the rest by hand.

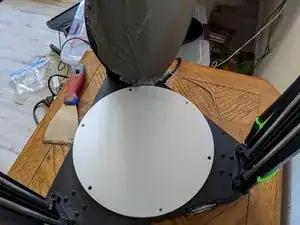

  4. nqDRqEWnVS3oKZYL

    • One side of the bed will have a wire taped in with the conductive sticker.

    • If you have upgraded to the leveling switch you can cut this wire.

    • If not, you could carefully peel the wire off of the conductive sticker to save it for later...

    • Without the leveling switch there are various techniques to do conductive leveling.

    • aluminum foil stuck to top of bed and connected to leveling wire

    • homemade leveling switch

    • etc.

    • Power down the printer

    • Use mineral spirits, gloves, and cotton balls to clean the bed

    • Leave the steel plate and magnetic sticker together.

    • Remove the backing from the magnetic sticker.

    • Be sure to align the plate exactly how you want it. Once the sticker is applied it is very difficult to remove and repositioning is not recommended.

    • Carefully apply the sticker and plate from one edge to the other.

  7. YjgjwHt6kXX4PyUq

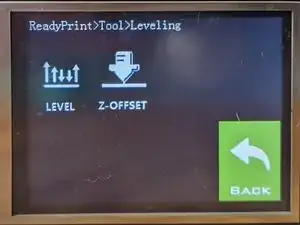

    • If you have upgraded to the leveling switch this step will be easy.

    • Attach Leveling Switch

    • Heat Bed to Normal Printing Temperature

    • Tap Tools

    • Tap Leveling

    • Tap Level

    • Do not forget to adjust Z-Offset

  8. kNq1KS22nqYYEJc4

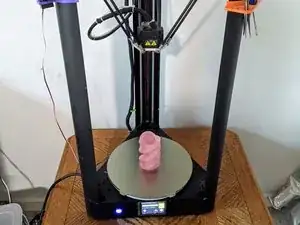

    • Watch the first layer go down smoother than ever.

  9. wsgRIlSbobSbLEpQ
    wsgRIlSbobSbLEpQ
    1AQPICIAf4dKQrDa

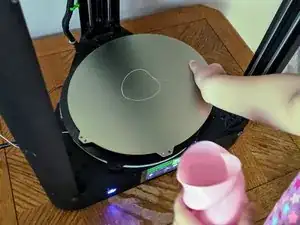

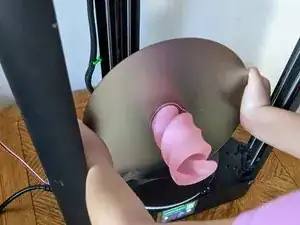

    • Peel spring steel plate off of magnetic sticker.

    • Flex plate gently to detach print.

    • Retrieve print (I dropped the first one)

Abschluss

You have successfully upgrade the print surface of your FLSUN-QQ

Print Happy
