Einleitung
Is the device not turning on when plug in? This guide will help you replace the power cord to fix the issue.
Werkzeuge
-
-

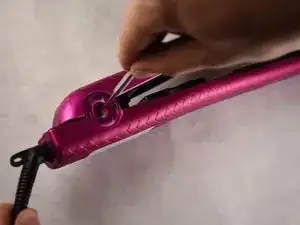

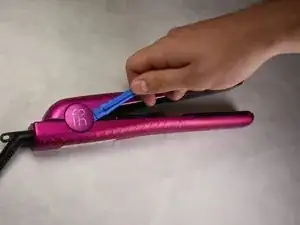

Use your fingers or a plastic opening tool to open the side hinges on both sides of the device.
-
-
-
Using a Philips head #2 screwdriver remove the 7mm black screw from the hinge of the device.
-
-
-

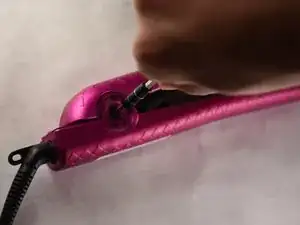

Using the metal spudger, push through the hole the screw was removed from. Doing this will push the copper pin out of the other side.
-
When the pin is removed the two sides of the device can now separate.
-
-
-

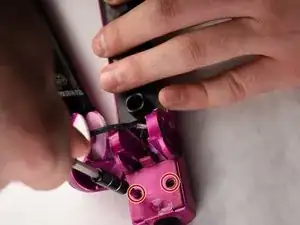

Use the Phillips Head 1 screwdriver to remove the two screws on the back where the power cable exits the device.
-

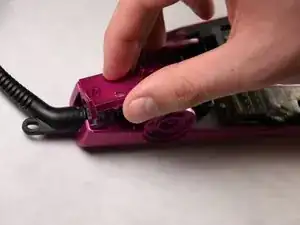

Once the two screws are removed; simply lift the case up and off to have access to the power cable.
-
-
-
To remove the power cable, grab the clear plastic holding and the base of the power cable and pull apart.
-
To reassemble your device, follow these instructions in reverse order.
