Fan Replacement

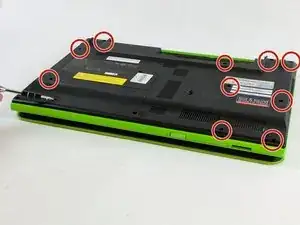

Remove all the screws that hold the plastic bottom cover on. There are some more screws that cant be seen in the photo.

Once screws are removed, remove the back cover.

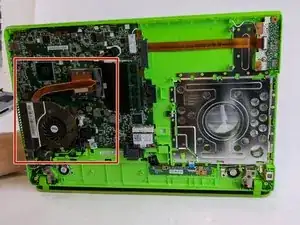

Encased in red is the area where we are working on

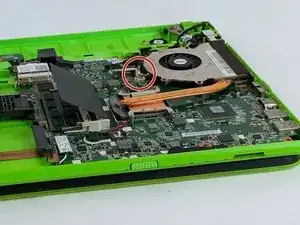

Locate the two strips of cables projecting from the fan to the white holders circled in red.

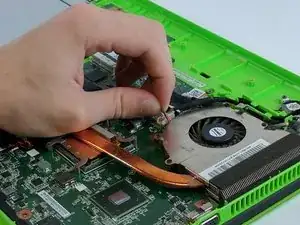

Using your hand carefully remove the two strips of cables from the white sockets. Preferably grabbing the strip by the head(the white section where the cables are engulfed). If unable to gingerly pull on the cables.

Make care to not rip the connectors and the cables

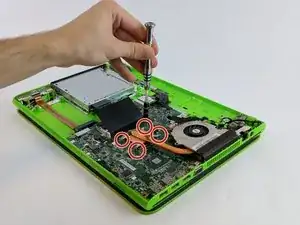

Unscrew the four screws surrounding the heat sink.

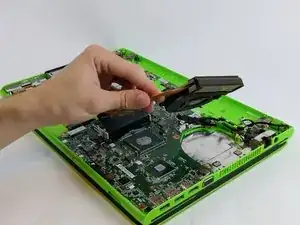

You are now clear for liftoff. The fan may fly freely.
