Farberware FSTO100 Indicator Light Replacement

Geschrieben von: Tony Wang
  • Kommentare: 0
Farberware FSTO100 Indicator Light Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

Use this guide to repair the clear indicator light. This guide will help you through replacing the light bulb.

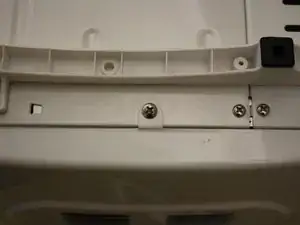

  1. hcYmVDd3iJaaF3sK

    • Make sure toaster is unplugged.

    • Turn toaster upside down so screws on bottom side are facing toward the ceiling and the door is facing towards you.

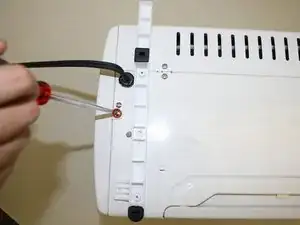

  2. hVmaO1rUTrGA6WyG

    • On the left hand side, unscrew the middle screw.

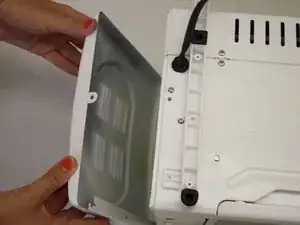

  3. Kt3utPoK2NipNaHB

    • Remove the panel on the left hand side. The indicator light is located in the red tube that has wires covered by black tubing coming out.

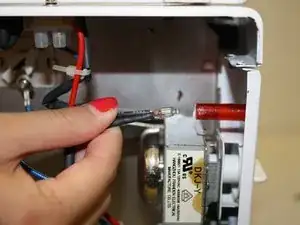

  4. KuJnPSqKmYLL4XMG

    • Pull the black wires to remove the indicator light from the red tube.

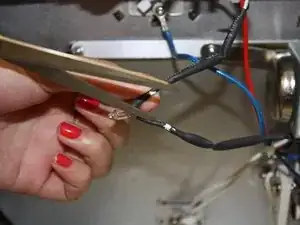

  5. ERy5pgnaQNf2KJjA
    ERy5pgnaQNf2KJjA

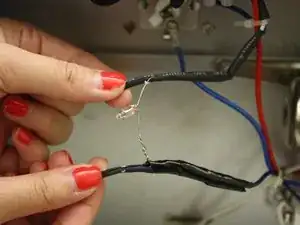

    FUTFa4kyyhjJpeAZ

    • Use scissors to cut open cord sheathing and peel back.

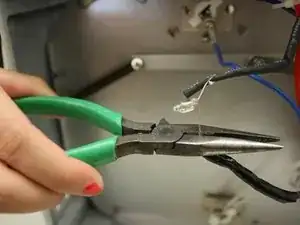

  6. lVCYSUwgvVL4UyUW

    • Use the wire-cutters to remove the light bulb.

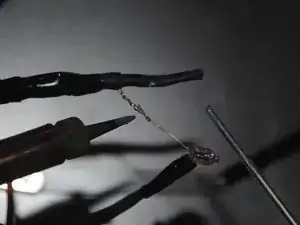

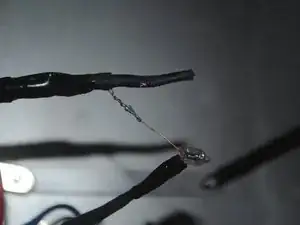

  7. KVdXVRGOHWqmrCmD
    KVdXVRGOHWqmrCmD
    PctY1BuASF66lLmH

    • Solder the replacement light bulb back onto its original position.

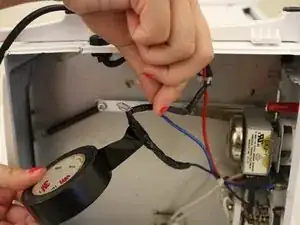

  8. qPRWlkiRrJgbi2JJ

    • Use electrical tape to reseal the sheathing.

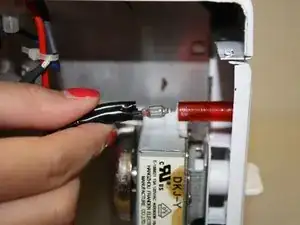

  9. lkO3TuRDrZjVnJZa

    • Reinsert the indicator light back into the red tube.

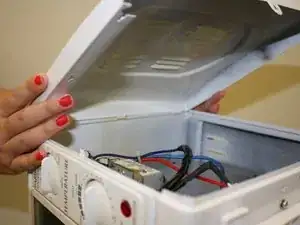

  10. nDwWnJEbKFfKhTDY

    • Turn toaster upside down so screws on bottom side are facing toward the ceiling and the door is facing towards you.

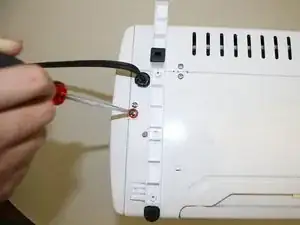

  11. QvKcIAKgoOTSVWhY

    • On the left hand side, screw the middle screw back in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
