Fast Fix Screen Replacement

Geschrieben von: Carl Kangas
  • Kommentare: 2
Fast Fix Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide can be used to remove and replace a screen on a Dell Insprion 15-3521. The tools needed are a small Phillips screwdriver, and a small flat screwdriver or like prying device.

  1. Oi1BrjNGfpHLuJKN
    Oi1BrjNGfpHLuJKN
    X1kFlIXp6bakqZbf
    1IYfyb5CelIK11Fn

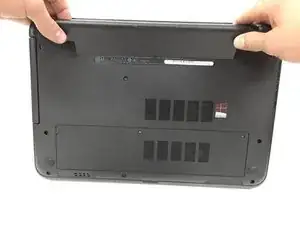

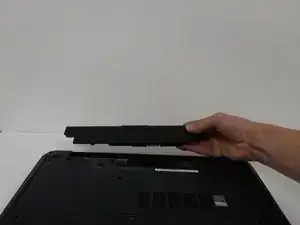

    • Slide both battery latches to release cover.

    • Remove battery.

  2. mpkFEnNLTPXCryWL
    mpkFEnNLTPXCryWL
    RdB2VobUB1N1QrWE

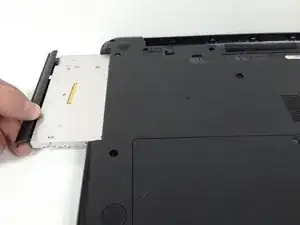

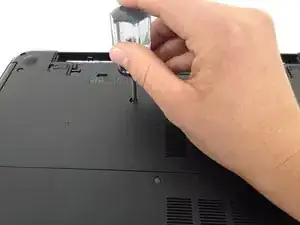

    • Remove the M2.5 X 5mm phillips screw for the CD drive.

    • Remove the CD drive.

  3. UDEOjuXYmyRCFWSA
    UDEOjuXYmyRCFWSA
    fLg1lLnWbBROYMGp

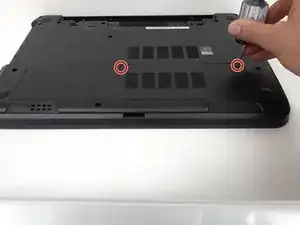

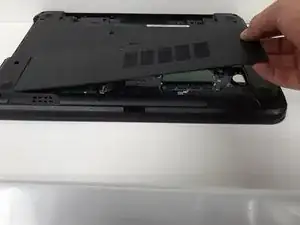

    • Loosen 2 screws on access door.

    • They cannot be removed

    • Remove the access door.

  4. roNU6WbOnRoDCxnZ

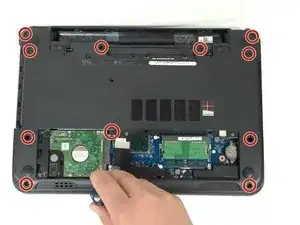

    • Remove 12 M2.5 X 5MM Phillips bottom palm rest screws.

  5. TYKYcpTEoHSaEoeF
    TYKYcpTEoHSaEoeF
    tqGkh6BAvZOyMIVJ
    siARHqfYqKYvhWAD

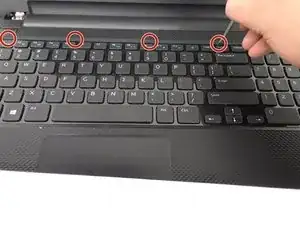

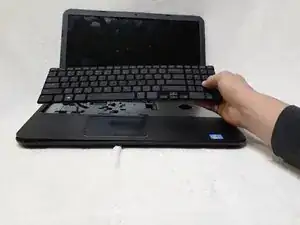

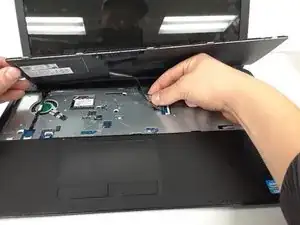

    • Use a small screwdriver to press in the keyboard latches.

    • Remove the keyboard.

    • Unplug the keyboard cable at the ZIF connection.

    The Zif Connector has to be opened before taking the cable out

    this applies to any Zif connector

    Tech, Tunes And Textures -

  6. L3nnqOtVhWBXMtV1
    L3nnqOtVhWBXMtV1
    aGvOlhXAsuvFyiua
    XehVP2ANMOqxCXlJ

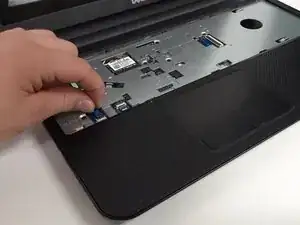

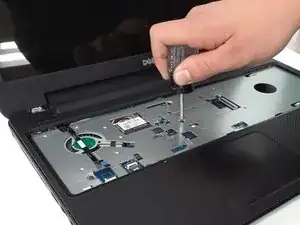

    • Remove the palm-rest cable by releasing the ZIF latch and pulling the wire out.

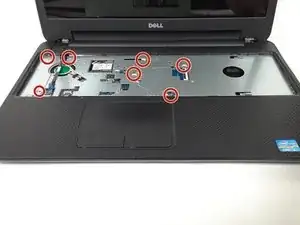

    • Remove 5 M2.5 X 5mm Phillips and 2 M2 X 3mm Phillips palm-rest screws.

  7. ANuEwGcVYv1i3OWA

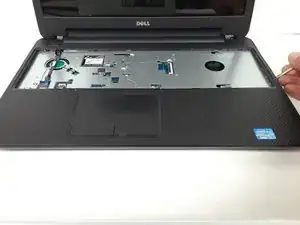

    • Use a small flat screwdriver to pry the palm-rest off of the computer.

  8. vpAuS4diSExLXZwC
    vpAuS4diSExLXZwC
    VKuTDIwNpH4RhOnT
    kRYrddxINIHZ2JYD

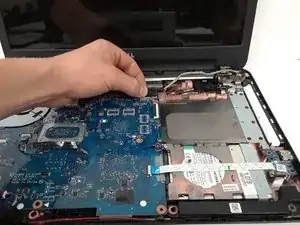

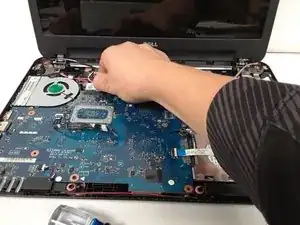

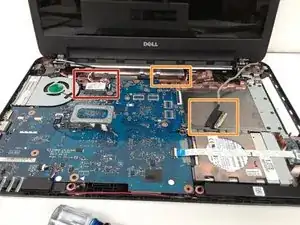

    • Remove the wireless antenna

    • Remove the LCD cable

  9. anqNFYE3dPDARsfo

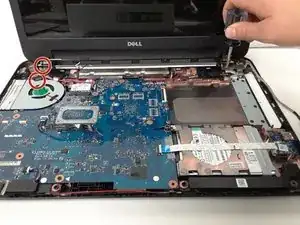

    • Remove the 1 M2.5 x 5mm Phillips left hinge screw and 2 M2.5 x 5mm Phillips right hinge screw.

  10. 2EANdXcu4E1DLAt3

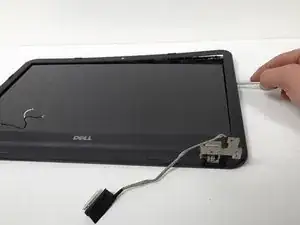

    • Pry off the LCD bevel using a small flat screwdriver.

  11. NSyLeQQ1YL3lgdvE

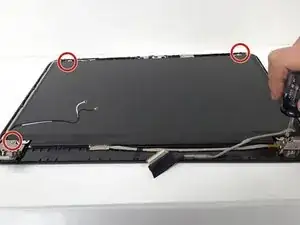

    • Remove the 4 M2 X 3mm Philips LCD screws.

  12. 2cZUfYUmimOScVBs
    2cZUfYUmimOScVBs
    iZrAP6rlimjORixs

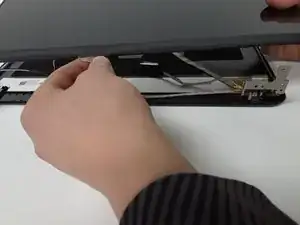

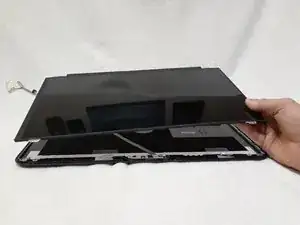

    • Unplug the screen cable and remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
