Einleitung

  1. ep3XRhZ2rULdAFkN
    • Be sure to unplug the device before proceeding.

    • Use a Phillips #0 screwdriver to remove the four 21.7mm screws holding the back panel to the frame.

  2. kWXx3tHiDBTqRFam
    • Once the screws are out, use a plastic opening tool or spudger to pry the top of the back panel open. There may be some resistance, but it will eventually pry loose.

  3. aUKhpprZXvNQnf1B
    • Once the top is separated, use your hand to remove the back panel from the unit.

  4. GF5ZLJFJ4kZH4GiT
    GF5ZLJFJ4kZH4GiT
    pspcZR312Srjcwfk

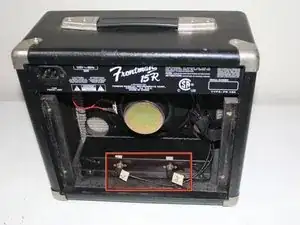

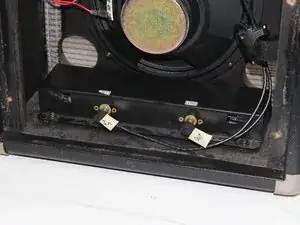

    • There will be two black wires connecting the top mounting bracket to the reverb box at the bottom of the unit. Label the wires to prevent crossing upon re-installation, then unplug the wires from the reverb box.

  5. mxV5rgABBFPaIjMd

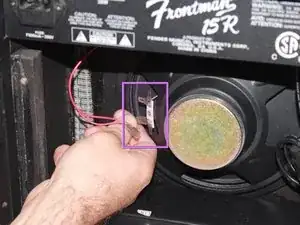

    • Label and unplug the two red wires connecting the mounting bracket to the speaker by pulling them off the nodes.

  6. lKxukacdXmTNHWP4
    lKxukacdXmTNHWP4
    NX2EH4ho4yfPbZfu
    4CshbiuJJ4ZwLUhw

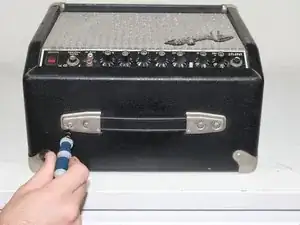

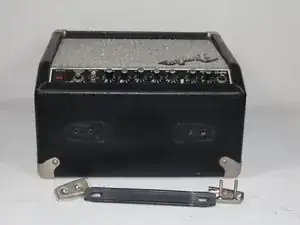

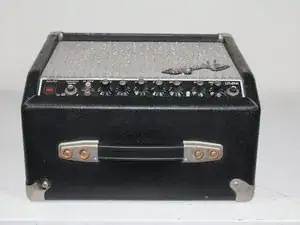

    • Use a Phillips #1 screwdriver to unscrew the four 36.4 mm screws holding the mounting bracket to the top of the amp.

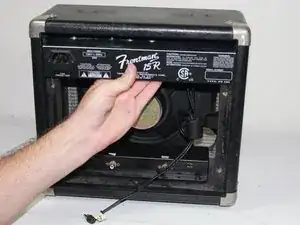

  7. fLYEMt6KCU6BepTu
    fLYEMt6KCU6BepTu
    govBoPFuPqGAGeXh
    LlswmMO2gsPtv46E

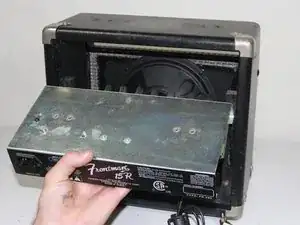

    • Pull the mounting bracket free from the frame. It may be wedged in very snug, in which case, use a plastic opening tool/spudger to pry it loose from the front.

Abschluss

Once the old bracket is removed, install the new one by following the instructions in reverse.
