Einleitung

If the speaker is dead or blown, install a new one.

  1. ep3XRhZ2rULdAFkN
    • Be sure to unplug the device before proceeding.

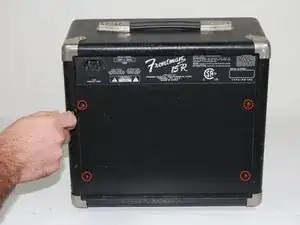

    • Use a Phillips #0 screwdriver to remove the four 21.7mm screws holding the back panel to the frame.

  2. kWXx3tHiDBTqRFam

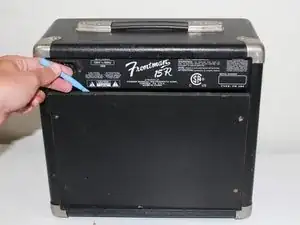

    • Once the screws are out, use a plastic opening tool or spudger to pry the top of the back panel open. There may be some resistance, but it will eventually pry loose.

  3. aUKhpprZXvNQnf1B

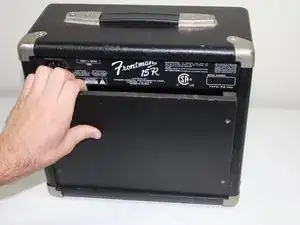

    • Once the top is separated, use your hand to remove the back panel from the unit.

  4. orSZZj1IZdTct6tT

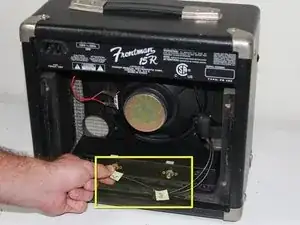

    • Using tape or a post-it, label the input and output wires on the reverb. Remove these wires from the box.

  5. PdLZSAXeayoOaRnY

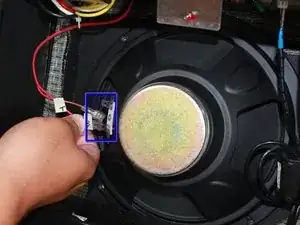

    • Remove the two female connection terminals from the speaker terminals.

  6. AuN32aQZmfyBNKLp

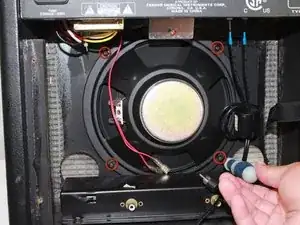

    • Use a Philips #1 screwdriver to remove the four 21.9 mm Phillips screws from the perimeter of the speaker.

  7. tRTwx5yKpyOTA6rF
    tRTwx5yKpyOTA6rF
    IncwhqqTrl6QwEDE

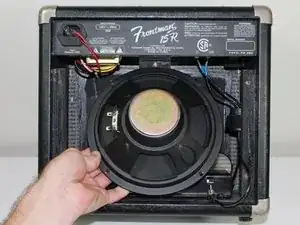

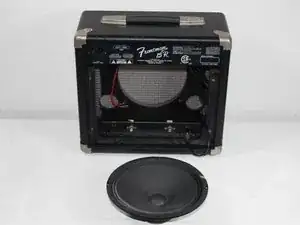

    • Gently remove the speaker.

Abschluss

To install the new speaker, follow the instructions given in reverse.
