Einleitung

  1. pSERVscAJAVE1Nek
    pSERVscAJAVE1Nek
    emYSlGJRkbuuMx5N

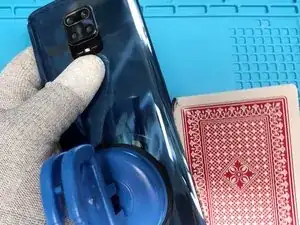

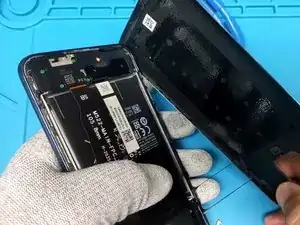

    • Warm up the device to soften the adhesive.

    • To separate the back cover, use plastic tools, a playing card, isopropyl alcohol and a suction cup.

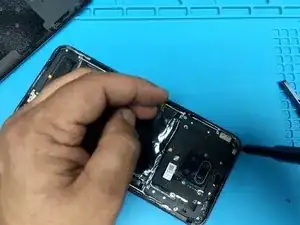

  2. DXnRFYYZjIX2vpKf
    DXnRFYYZjIX2vpKf
    CHpNMntWMfIGMflw
    ryFCnNJRrsXwFOoL

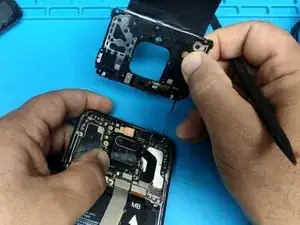

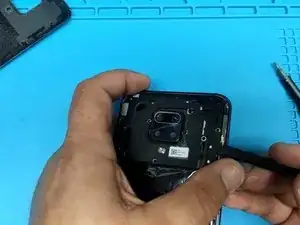

    • You can now remove the screws holding the plastic motherboard cover.

    • Pry the cover free.

  3. QL3VSZsC1Ep2PvFv
    QL3VSZsC1Ep2PvFv
    cjkVXkTpWNqG4lYP
    yGM2gFpaBJkCYNJF

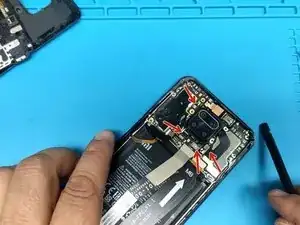

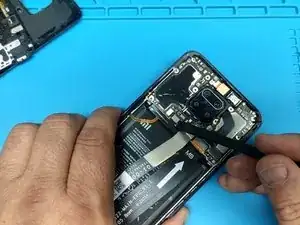

    • Disconnect the battery.

    • Disconnect all cameras flex cables (x4) and remove them.

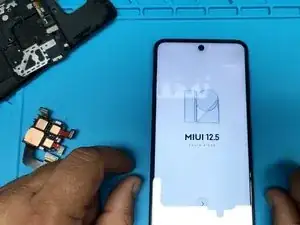

    • Now test the device without the camera.

  4. 22EtLKdMgyTkgKDP
    22EtLKdMgyTkgKDP
    vZDsGK2IWEZGwPSo
    lKG4Q1mm2UYQFa11

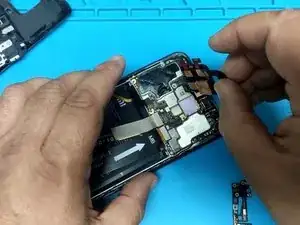

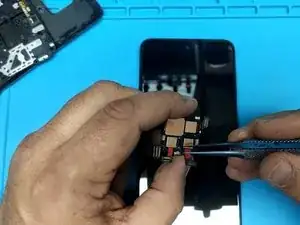

    • If the phone starts normally, check and clean main camera connectors.

    • Check all conductive adhesive tapes and recover them.

    • Now you are ready to assemble the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
