Einleitung

  1. 6LQcnvfFXrsXixW4
    6LQcnvfFXrsXixW4
    CcNeImO3U21GvKXm

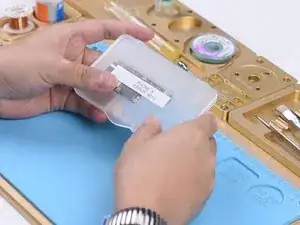

    • Here it says: iPhone X Error 4013.

    • Run cosmetic inspection of the motherboard first. The motherboard is not deformed or water damaged.

  2. RIWQpYFZICCAKCWn
    RIWQpYFZICCAKCWn
    nNFxkXhDKPU3D14p

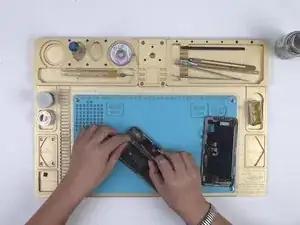

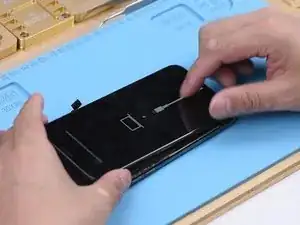

    • Let's get the motherboard installed and check.

    • Press the power button. The phone enters into recovery mode automatically. Judging by this, the motherboard comes with restore failure. And therefore the phone cannot enter into the system normally.

  3. WRiM2IqXovhNFbGl
    WRiM2IqXovhNFbGl
    tYBiPZ2gkBuIO2YH

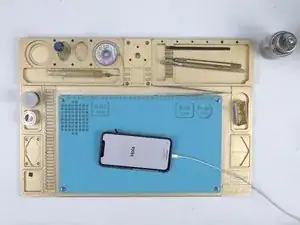

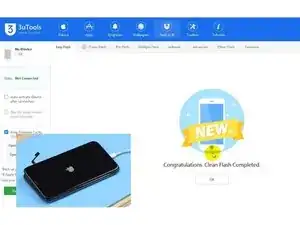

    • Let's restore the phone and check whether it comes with error 4013. Connect the phone to the computer. Restore the phone with 3U Tools.

    • The phone can be restored normally. What's more, the phone can be normally activated after restore.

  4. 41R6TUBfL3gjQ4vO
    41R6TUBfL3gjQ4vO
    MLhCtYafqutVpbY4
    DsQeh4MBnbJwoiJG

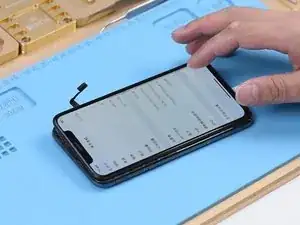

    • Go to Settings>General>About. We can check baseband info here. We can confirm now that the motherboard is normal. The fault is probably related to other parts.

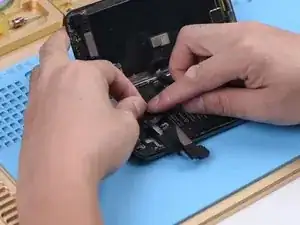

    • Get the earpiece speaker and sensor flex cable and front camera flex cable installed.

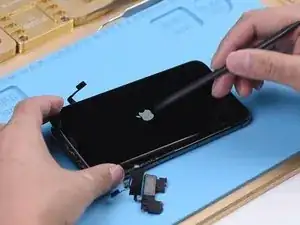

    • Turn on the phone. The phone is stuck on Apple logo and keeps restarting.

  5. GX2TEetaLU3Hb2lW
    GX2TEetaLU3Hb2lW
    n25AdrluEdysrdrn

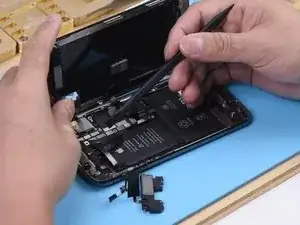

    • Judging by this, the fault is related to the earpiece speaker and sensor flex cable or the front camera flex cable. Now we need to rule out one by one. Disconnect the earpiece speaker and sensor flex cable.

    • Press the power button to turn on the phone. The phone turns on normally. We can confirm now that the fault is related to the earpiece speaker and sensor flex cable.

  6. f5KvrDruTIPUJMlm
    f5KvrDruTIPUJMlm
    COhSoKMvtxfvmIQB
    ZTPG2rvO3oiYbxpG

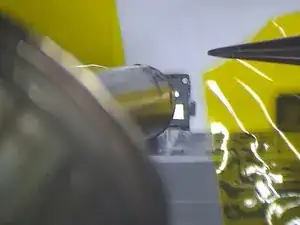

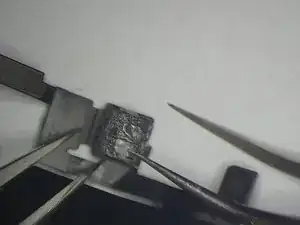

    • Check the earpiece speaker and sensor flex cable under the Microscope. The Flood illuminator module is moldy.

    • Fix the earpiece speaker and sensor flex cable with High-temperature tape. Heat with Hot Air Gun at 320℃, air flow 35. Remove the Flood illuminator module.

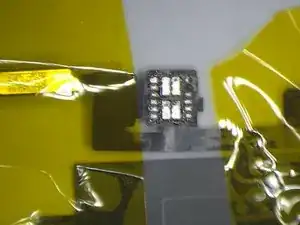

    • We can see that its bonding pad is severely corroded.

  7. oTJni4tPepjQVQBG
    oTJni4tPepjQVQBG
    OkyqFhvQkjTKurqO
    aVMPRyqqvZrgbN4Z

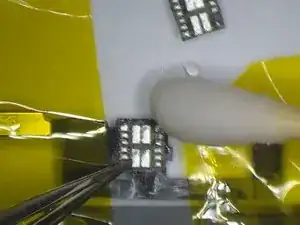

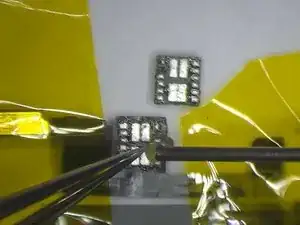

    • Apply some paste flux to the bonding pad. Clean the bonding pad with Soldering Iron at 360℃. Then continue to apply medium-temp solder paste to the severely corroded pad. Clean with PCB Cleaner afterwards.

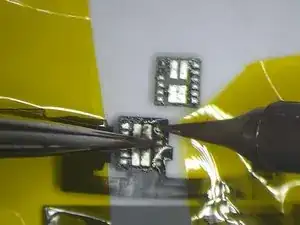

    • Continue to apply paste flux to the Flood illuminator module. Apply medium-temp solder paste to the severely corroded pad. Clean with PCB Cleaner afterwards. Once done, apply some paste flux to the bonding pad.

  8. 2RXep2tx1sDYDDS1
    2RXep2tx1sDYDDS1
    jT4aVmtIMQCQmdZQ

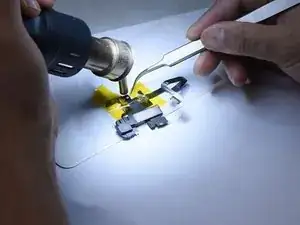

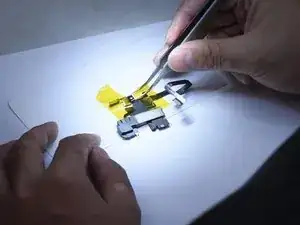

    • Get the Flood illuminator module in the right position. Solder with Hot Air Gun at 320℃, air flow 35. Once finished, wait for 2 minutes.

  9. 36IdoYL2Tc4xSMcm
    36IdoYL2Tc4xSMcm
    gxILsndeL6vYNvCC
    nqHjDXekhGuMoQwA

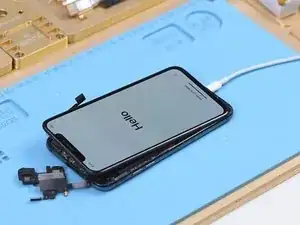

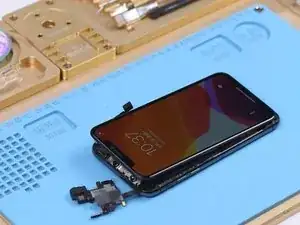

    • Then get the earpiece speaker and sensor flex cable installed. Connect the battery. Press the power button. The phone turns on normally.

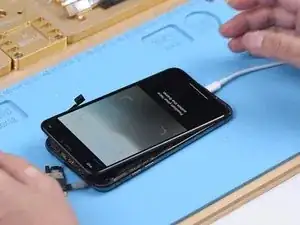

    • Since the two flex cables were not connected during previous restore, we need to restore again with the two connected. So that Face ID can work normally. Put the phone into DFU mode. Then connect the phone with the computer.

    • Restore the phone with the help of 3U Tools. The phone can be normally restored. Once completed, the phone enters into the system normally. Face ID setup is also normal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
