Einleitung

  1. DXDfhadoVeGlrHJR
    DXDfhadoVeGlrHJR
    E6KNRCqrfKXDbZv1

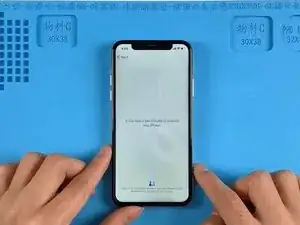

    • The iPhone X has been dropped and can’t work normally. After restoring, the phone can’t be activated. Next, we try to activate the phone with 3uTools.

    • Connect the phone to the computer and open 3uTools. Click Activate Now and Start.

    • The activation normally takes several minutes. After about 20 minutes, the phone is stuck in the activation interface. The phone is still unable to be activated.

  2. DdXalswd3OrVkBVD
    DdXalswd3OrVkBVD
    iChOM2IYJklNwVRX

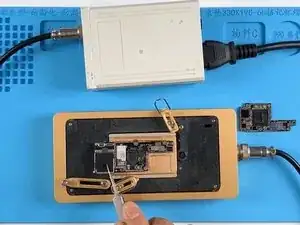

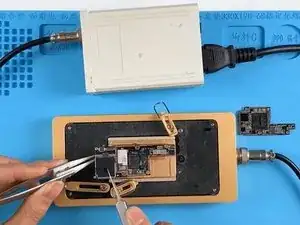

    • Next, we need to separate the motherboard for further check.

    • Put the motherboard on the 165 °C Heating Platform to heat. When the temperature reaches 165 °C, remove the logic board and signal board with tweezers.

  3. R2UhjInBCKQHFfD1
    R2UhjInBCKQHFfD1
    mSgoo2o2kxdJwqFJ
    ZU6LagLEwFmFlDrB

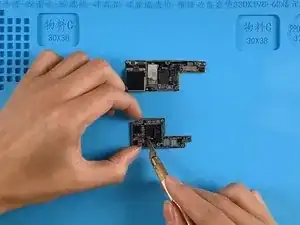

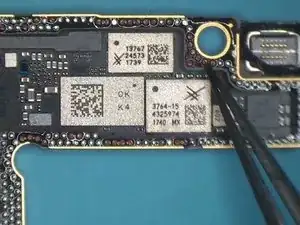

    • Clear thermal grease with a Sculpture Knife.

    • After separation, it is found that there are many missing pads. Then we restore useful pads from missing pads with jumper wires.

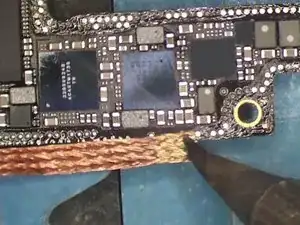

    • Attach the logic board to the holder and remove tin on the bonding pad with Soldering Iron at 365 °C and Solder Wick.

  4. FEYlJTwtb2bj5a6R
    FEYlJTwtb2bj5a6R
    nuDqrB3FFaW6KMAd
    MPNpFuSZEZbSyWKT

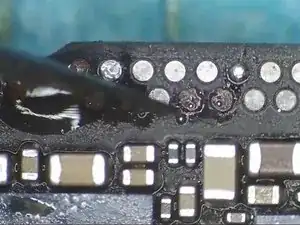

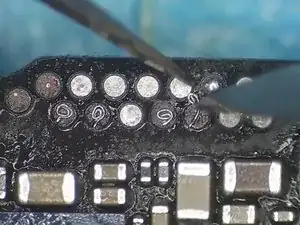

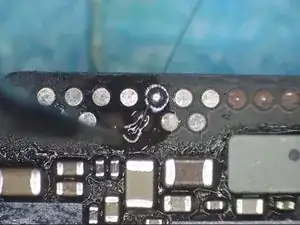

    • Apply some Solder Paste to the missing pads and apply tin with Hot Air Gun at 340 °C. Clean the bonding pad with PCB Cleaner and apply some Paste Flux.

    • Solder 0.02 mm copper wires to the bonding pad with Soldering Iron. Please be noted that copper wires must be soldered firmly.

    • Clean with PCB Cleaner again and curl the copper wires to make pads with Tweezers and Sculpture Knife.

  5. WwZ1LBIUuZxSKGOK
    WwZ1LBIUuZxSKGOK
    TVFlHDWSHEaKCqXD
    iXrOZTTORVUOgCHD

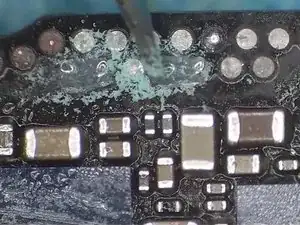

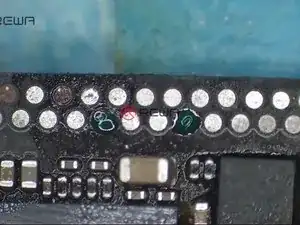

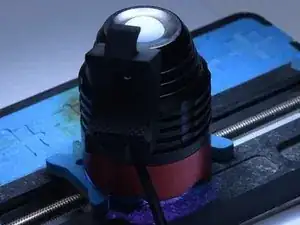

    • Apply Solder Mask to the bonding pad to fix the copper wires and solidify the solder mask with UV Lamp for 5 minutes.

    • Scrape away excess solder mask with Sculpture Knife to show the copper wires.

    • Next, remove tin on the bonding pad with Soldering Iron at 365 °C and Solder Wick. Clean the bonding pad with PCB Cleaner.

  6. gjkgiNVMoZ22Tqjj
    gjkgiNVMoZ22Tqjj
    FtrgGEvKYyypXrDM
    Re3rrVF6RSqSoiMh

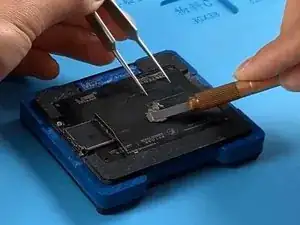

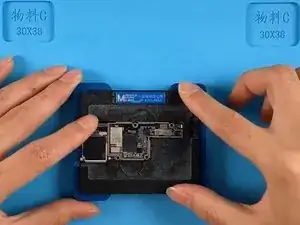

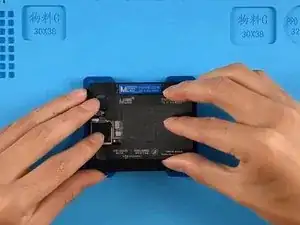

    • Attach the signal board to the Reballing Platform and put the reballing stencil in position.

    • To prevent solder paste from flowing into the motherboard, insert a metal plate.

    • Apply evenly a layer of low-temperature Solder Paste.

  7. aJeqNFlrASBSQiF6
    aJeqNFlrASBSQiF6
    4pBA1SmYOyALkDPm

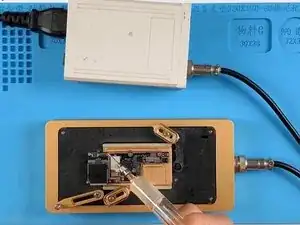

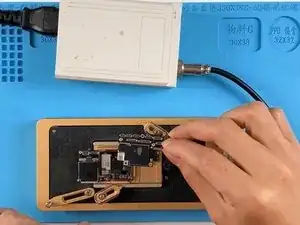

    • Put the motherboard on the 165 °C Heating Platform to heat.

    • After the solder balls are formed, turn the power off and cool the signal board. Apply some Paste Flux and align the logic board with the signal board.

    • Keep heating for 1 minute when the temperature reaches 165 °C. Turn the power off and cool the motherboard.

  8. MtIjKGCkVfVGBPhX
    MtIjKGCkVfVGBPhX
    HLY3XcldhTZkUVeh

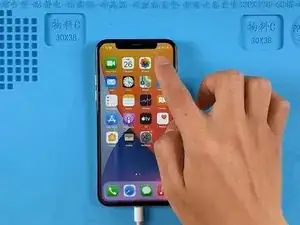

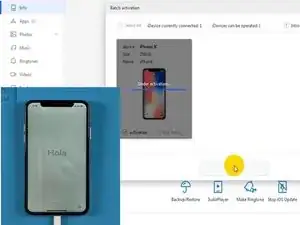

    • Then we install the motherboard to the phone. Open 3uTools to activate the phone. The phone is successfully activated.

    • Test other functions and other functions work well.

Abschluss

To reassemble your device, follow these instructions in reverse order.
