Einleitung

Follow this guide if you are having issues with your audio output with your Kingston HyperX CloudX.

NOTICE: This guide requires taking apart your headphones, if you have not already, please check your audio settings.

Troubleshoot Audio - Mac

Troubleshoot Audio - Windows

Troubleshoot Audio - Linux

  1. CUiaSySnG4QfCh4a

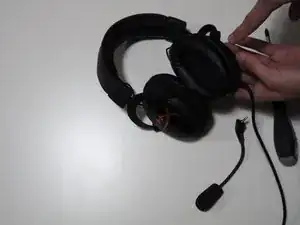

    • Remove the microphone from the left side of the headphones.

    • The microphone is removeable from the headphones themselves and does not require any disassembly

  2. Z6DvWboIFJjgDAJF
    Z6DvWboIFJjgDAJF
    V4uBCtJXvjnAyhaF
    424WEnVxbKxNp6AA

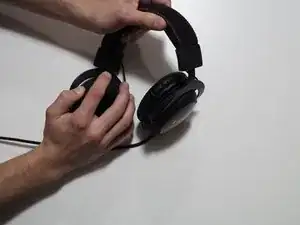

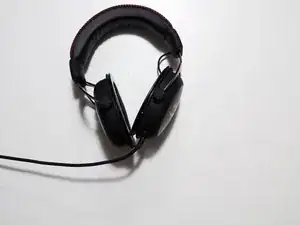

    • Remove the memory foam from the side of the headphones that are giving the audio problem

    • Both sides come off easily! All you have to do is pull the memory foam from the headset and it should come right off.

  3. XGP2CTVFtYsGDfVY
    XGP2CTVFtYsGDfVY
    xZiJiNZ4ATTDpdiw
    R2hTTLJpd6PqDuJU

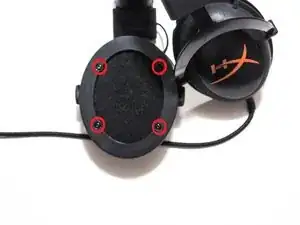

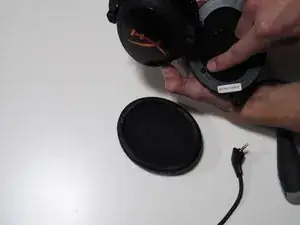

    • Remove the four 5.0 mm screws located under each memory foam using a Phillips #1 screwdriver.

    • Make sure to hold onto the screws, as you will need them to put the headset back together.

  4. URe4ESmkeQCb5QoV
    URe4ESmkeQCb5QoV
    VnmSbHATjYi2YdqK

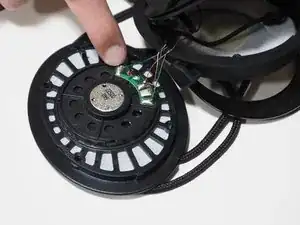

    • Look for wires that are missing from the circuit board.

    • For this repair, our headset was missing a green wire so we will solder that back to the board

  5. UXIsJWqe66tLcQjl

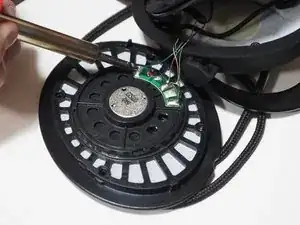

    • Solder the missing wire back to the headphone's circuit board

Abschluss

To reassemble your device, follow these instructions in reverse order.
