This replacement guide will walk you through on how to remove the camera lens. The tools needed are the Phillips #1 Screwdriver and Tweezers. It should roughly take about 15 minutes.

  1. vjWwRsmaRCJtFELo
    • Unlock the battery cover by sliding the switch to the unlock position.

  2. OxsYsDXBRDQcu6SO
    • Remove the battery cover by sliding it down the camera.

  3. VtrDSNkGMHVrIs33

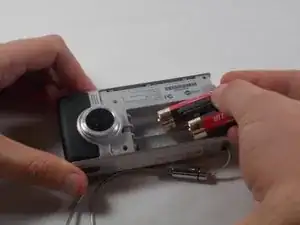

    • Remove the batteries

  4. ZDWOxdIW2iBnL3bv

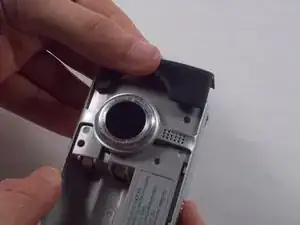

    • Slide the black upper casing off from the device.

  5. WlvJ3Ddw6qSiTnYW
    WlvJ3Ddw6qSiTnYW
    JQqWEqPJapMAIMbg

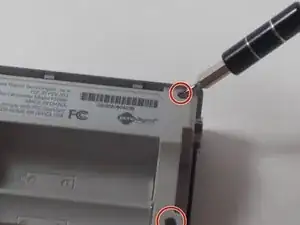

    • Remove the six 1mm screws from the back and upper casing with the Phillips Head screwdriver.

  6. tiiK3yVDrDVhoZux

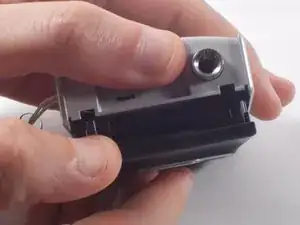

    • Remove the top casing from the bottom to reveal the inner circuit board.

  7. mElhKDhCrUZZgmtv
    mElhKDhCrUZZgmtv
    LqGGBpsE1KsPxk2q

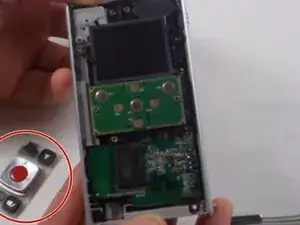

    • When removing the back panel, the rubber buttons will become loose and likely fall off the board. This is normal and can easily placed back on the board once finished.

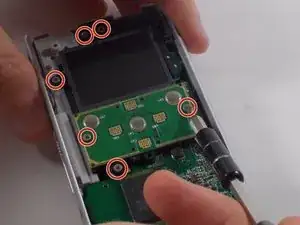

    • Remove the six 1mm screws with the 1 Phillips head screwdriver.

  8. 2B4RMRgHGADOaMpG

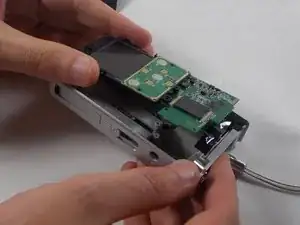

    • Gently separate the circuit board from the casing.

  9. BZsi2GHIRPD4bD6P
    BZsi2GHIRPD4bD6P
    qMjykMu6peP4tNYC

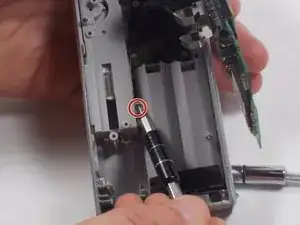

    • Unscrew the single 1mm screw from USB housing unit.

  10. PvxmgPN5FJRJLBJC
    PvxmgPN5FJRJLBJC
    fgvqCdGPEZNhaKqi

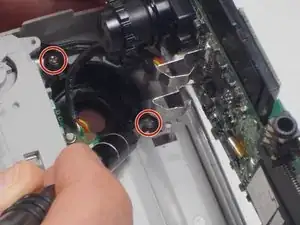

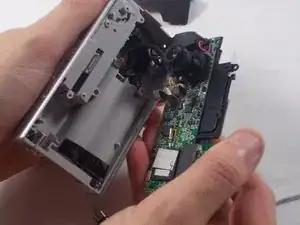

    • Unscrew the 2 1mm screws and gently separate camera wires from plastic casing.

  11. 45XMCBt3dUNOmRkZ
    • Gently pry out the USB housing unit with the Ifxit Opening Tool.

  12. P2PJnS6vJxDisXQ2
    P2PJnS6vJxDisXQ2
    J1cS5aTUtAof2JBp
    VFiWb2GKAOvZUfBt

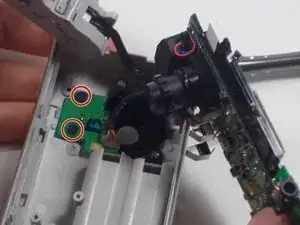

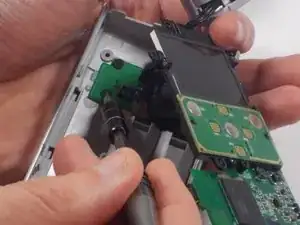

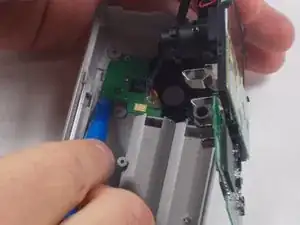

    • Remove the two 1mm screws and separate the circuit board and camera from the plastic casing.

  13. ENs3MRPTxAkKVaCs

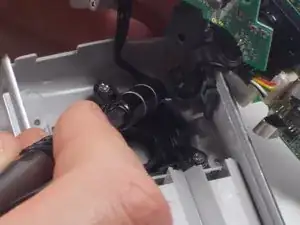

    • Unscrew the camera housing unit from the plastic case.

  14. oKMosZFedFESftVO
    oKMosZFedFESftVO
    iEOhQViI2NkNjBg3
    uCVcAm2K1sCMBhxC

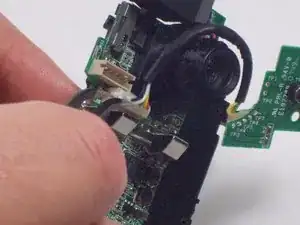

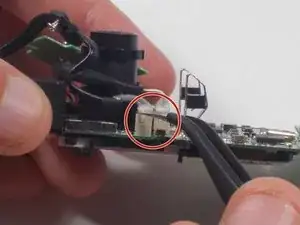

    • With tweezers, remove the microphone and USB connections.

  15. De1I13WuFcZS4SUL
    De1I13WuFcZS4SUL
    rDugVEPLFyt2XT4l

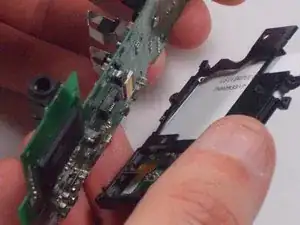

    • Unscrew the two 1mm screws from the board shown. Remove screen from circuit board.

  16. Pjnp2G1jlst4RkO1
    Pjnp2G1jlst4RkO1
    SJOIUBCWGZ6IValS

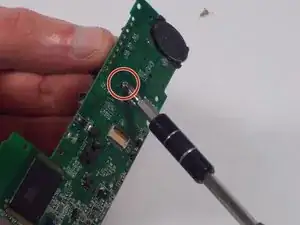

    • Remove the single 2.1 mm screw and separate camera from the circuit board.

  17. Siq4CJP5UX2KnUXF
    • Camera lens is now separated from the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
