Floor Pump O-Rings Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

You may notice that your pump is not able to achieve the pressures it used to be able to. Your pump may be even making unusual sounds while pumping. This could be an indication that the O-rings in the pump are worn and can't make a proper seal. Use this guide to replace your worn O-rings.

  1. gPmYjKdZUKXXkCLe

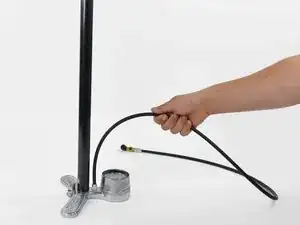

    • Detach the hose from its holder.

  2. Vi3kH1MlKqsjOukI
    Vi3kH1MlKqsjOukI
    jhDNLTXtHsFFQdrR

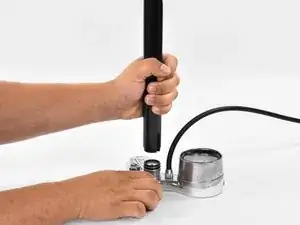

    • Hold the base of the pump steady and twist the barrel counter-clockwise by hand until it completely unthreads.

    • If you are having troubles stabilizing the base and twisting the barrel, try standing on the base and using both hands to loosen the barrel.

    • Lift the barrel off the base.

    • When removing the barrel, be sure not to lose the bump stop O-ring. It may stick to the pump base, may be stuck inside the barrel, or may fall out when you remove the barrel.

  3. KVNA4ucg3oNDJ3wR

    • Lift the pump handle until the top cap is expsoed

  4. 53mPVWTegRNt3KQO
    53mPVWTegRNt3KQO
    GEPbi3pcclQQjTSo
    clCAKB3MEVUSHfBH

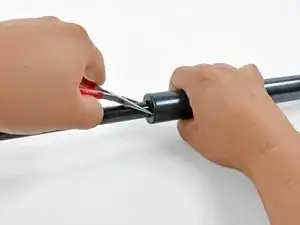

    • Place the ends of needle nose pliers into the top cap holes and turn counter-clockwise until the cap is loose.

    • Finish removing the top cap by hand.

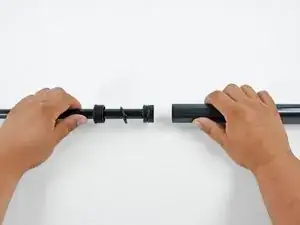

    • Pull the pump plunger out of the barrel.

  5. ecgUDAvViSMWh6TK
    ecgUDAvViSMWh6TK
    BoaNXmXtwFAPo3LX

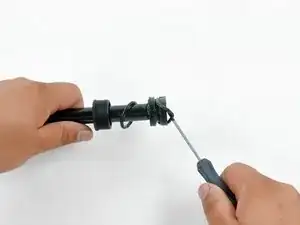

    • Use a small flathead screwdriver to remove the plunger O-ring.

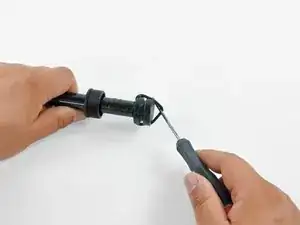

    • Use the screwdriver to remove the upper bump stop O-ring.

    • Install new O-rings.

    • Be careful not to over-stretch or cut the O-rings if you are using the screwdriver to install them.

  6. xALkW4grLNuMStlE
    xALkW4grLNuMStlE
    NJritpRDDlxaBnSH

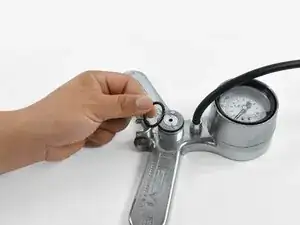

    • Remove the lower bump stop O-ring from the pump base.

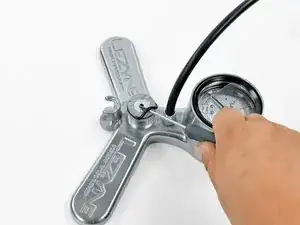

    • Remove and replace the base O-ring.

  7. uAf4ejEknurrBYrb
    uAf4ejEknurrBYrb
    ovQRAkK1NJ1yNwMY
    rAQeF2xAOlm46Ab3

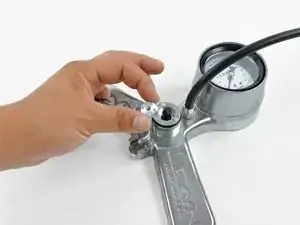

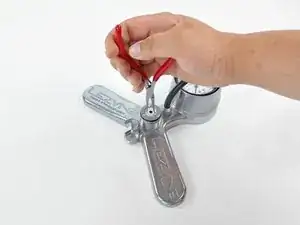

    • Insert the tips of needle nose pliers into the base cap holes and turn it counter-clockwise until it completely unthreads.

    • Remove the base cap from the pump base.

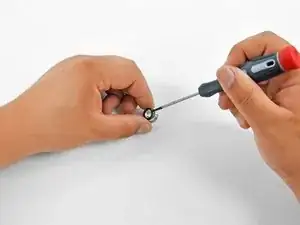

    • Remove and replace the base cap O-ring.

    • Re-assemble the pump using these instructions backwards.

    • Don't forget to set a new bump stop O-ring on top of the pump base before re-installing the pump barrel.
