Fluke 77 Series III LCD Screen Cover Replacement

Geschrieben von: Jessica Bombardier Shaw
  • Kommentare: 0
Fluke 77 Series III LCD Screen Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This is a relatively quick and easy guide that shows how to replace the Fluke 77 Series III Multimeter LCD Screen Cover. The screen cover is the transparent plastic part that protects the LCD (display) of the Fluke 77 Series III Multimeter.

  1. UEZKvKN5G41RZp4e

    • Be sure any test leads are out and the multimeter is off before opening the device.

    • Turn the multimeter so it is display side down.

    • Lift up the back stand of the device by putting your thumb in the curved well at the bottom of the device, so you have access to the two covered screws below.

  2. pi1E4ATuCGeXiKsZ

    • Use your Phillips #2 Screwdriver to remove the four black 21 mm Phillips #2 screws.

  3. BmtZv6urRe3PgYdD
    BmtZv6urRe3PgYdD
    2VZUikyocuNNxpGE

    • Turn the Fluke 77 Series III Multimeter back over so that it is display side up.

    • Pry the front panel from the back panel at the seam.

    • If the front panel does not come off easily, move a plastic opening tool along the seam until the panels separate completely.

  4. Dhooj2K5qMoWsVpQ
    Dhooj2K5qMoWsVpQ
    35oG3hHNsExglnYv

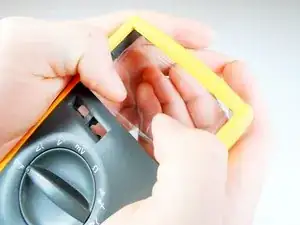

    • Hold the front panel with both hands.

    • Use your thumbs to firmly, but carefully push the LCD screen cover out and into your fingers on the other side of the front panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
