You will need:

  • Screw Driver Philip
  • Soldering iron / Heat Gun
  • USB Female Type-B Port 4-Pin
  • Solder Wire
  • *IF NEEDED* Desoldering Tool

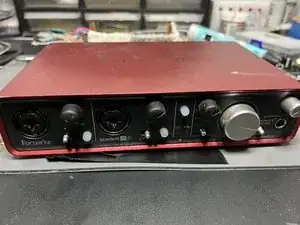

  1. fQBYVFhxwMBLZhfm
    fQBYVFhxwMBLZhfm
    3HQWRAlXSbQ3S5sn
    wCrXNmcF5VoS3vTR

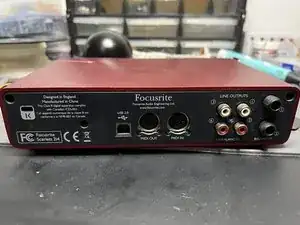

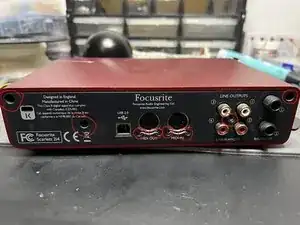

    • The Screws we all looking for are on the back of the box.

    • Use the Screw Drive and remove the 8 screws and put them in small piles.

    • Remember where the screws go, this is very important when trying to reassemble the device.

  2. vaviibuEXqQDXj4r
    vaviibuEXqQDXj4r
    W1RFIBKmPbsmBhOK

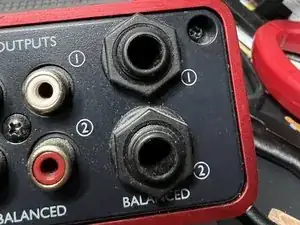

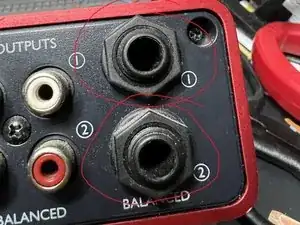

    • Next, unscrew the TRS outputs. Then put them to the side.

  3. oRvSnJllwmhaEuwO
    • Take the backplate off. and get your flashlight ready!

  4. vtQjHjkL1OaTPkox
    vtQjHjkL1OaTPkox
    EPGwKubduSALNbGj
    u1DIWkySc4KIjfYU

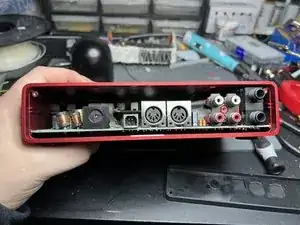

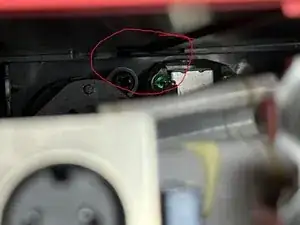

    • Now use your flashlight to look for the tabs holding the board in. They should be located on the top inner front part on both the right and left sides.

    • Be Careful undoing the tabs* You don't need a lot of force!

    • Use a FlatHead Screw Driver to undo the tabs, just slide in from the side and turn the screwdriver a bit to undo it.

    • Once both tabs are undone, you should be able to slide the board out from the front.

  5. oiJBpxXUUm35pWg1
    oiJBpxXUUm35pWg1
    2ATeYXGBd4rmxKHY

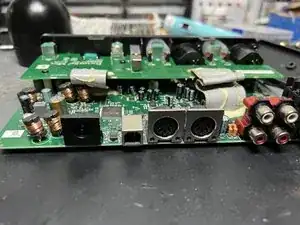

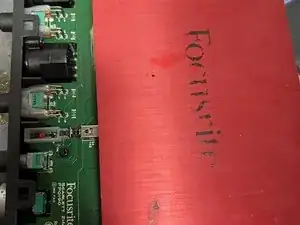

    • Like I said in the last step slide the board out the front.

    • *Notice the Tabs*

    • Ok, now that the board is free you can see more of the inner-working.

  6. BcRL6oEuNBvfgMbO

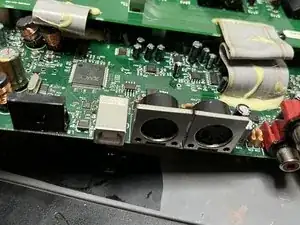

    • Next look for the soldering points for the USB Type B

    • Should be under the Type B USB.....

    • Next, use a heat gun or soldering iron and remove the port.

  7. qMeGkIt3eX2HqDEN
    • After desoldering or just resoldering the new Type-B, just follow the step to open the box backward. If done right everything should be good to go!

Abschluss

To reassemble your device, follow these instructions in reverse order.

WinterFreezeRecords-Aaron

Mitglied seit: 19/10/21

145 Reputation

Ein Kommentar

60 watt or above soldering iron is required. Couldn’t get it to melt with a 30 watt. I worked on a scarlett 2i2 second generation.
