If you have a foldable grocery cart or shopping trolly, that has its front wheels all worn out, then this guide will assist you in replacing the tattered wheels with new ones so you don’t have to worry about buying another cart. Damaged wheels of your grocery cart can cause your cart to not steer properly or even worse, collapse on the spot. It is important to replace them to avoid such situations and unnecessary expenses.

For the replacement, you can get an extra pair of wheels by buying new ones or use wheels that are in good condition from another cart that is not being used anymore. Just make sure that the wheels are of similar size to the old ones and that the hole is big enough to slide through the axle of the cart you’re currently using (some wheel sizes and center hole sizes may vary, so get a pair of wheels that are compatible with your grocery cart). Before starting, make sure your work area is open and free of any obstacles.

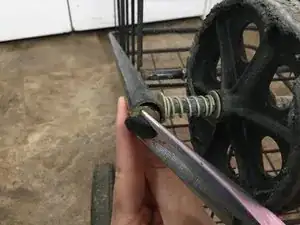

  1. 2eDclVMP21lDfnOQ
    2eDclVMP21lDfnOQ
    v5o2kXHtIUDxAf1D
    3wHZrkGRSglLHmHZ

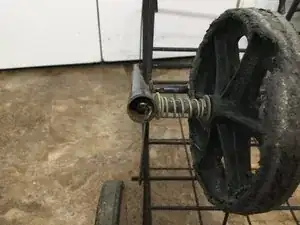

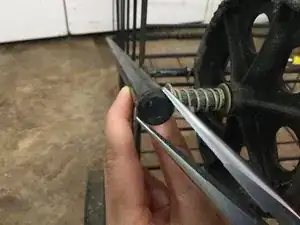

    • Using a large needle nose plier, take out the stoppers from each side of the axle.

    Hello, where can I find a axle rod for mini folding cart?

    Linda -

    Hello, where can I find an replacement axle rod for my mini cart .

    Linda -

    Hello, I've been raking my brain on the internet for a mini cart axle rod replacement. What internet or store sell them. Can you e mail me or call me #(334)412-6735 thank you

    Linda -

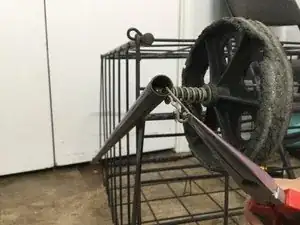

  2. M6XAbc6sG2x6gGss
    M6XAbc6sG2x6gGss
    6LJJF1aE4yRhgdeV

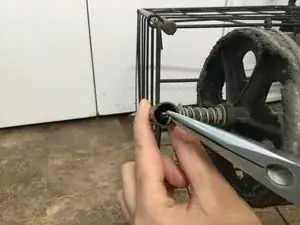

    • Use the large needle nose pliers to pull out the locking pins from the holes in the axel to detach the axel from the cart's legs.

    • Repeat for both sides.

  3. dHWQ4TZr2rFeHRub
    dHWQ4TZr2rFeHRub
    utcuiFrFkFBJJKpP
    DrShgJ5wuLWENKIZ

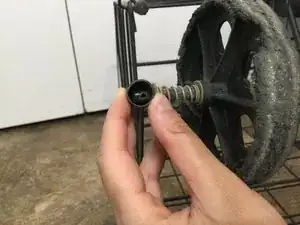

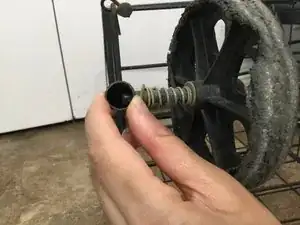

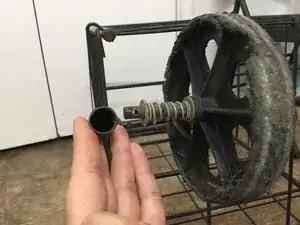

    • Carefully pull out the axle to detach it from the cart’s legs.

    • The washers and springs may fall out.

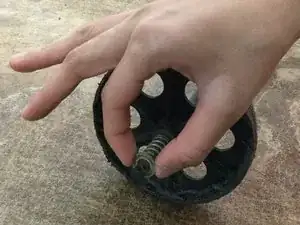

  4. hSKVhxTuMpVOKVlt
    hSKVhxTuMpVOKVlt
    1fkBupS6iVRg41IU
    J4OBeNORLMbQDYsY

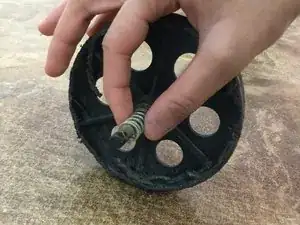

    • Slide off the first washer, the spring, and the second washer.

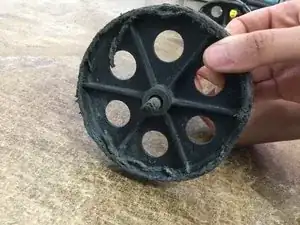

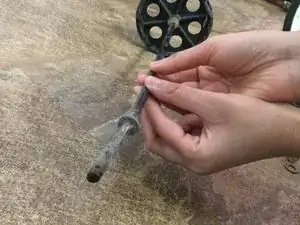

  5. 5O2u3G11GPmIZMPQ
    5O2u3G11GPmIZMPQ
    Q2rUQetDxTiB4nlJ
    • Take out the tattered wheel.

    • Make sure to keep the third washer on the axle.

    • Repeat steps 4 and 5 for the second wheel.

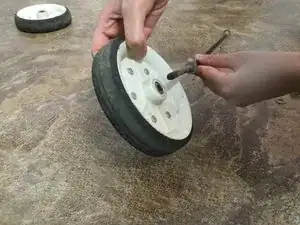

  6. 1gmfuKn4DRPPq13W
    1gmfuKn4DRPPq13W
    yy3FZIOBNeSEJQB3
    HIiGXXxEwqSbeQtL

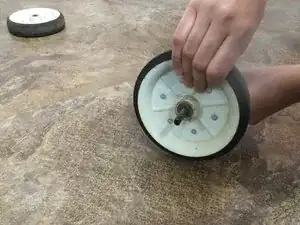

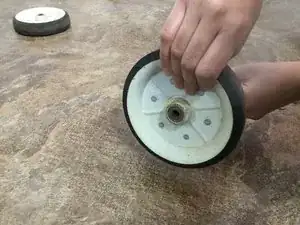

    • Take one of the new wheels and slide it on one side of the axle.

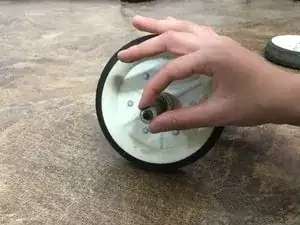

  7. 1ui5iTO1lLhgaSXq
    1ui5iTO1lLhgaSXq
    HEHUhFSF36uNlgXR
    hDRy3iMCXQmFfbp6

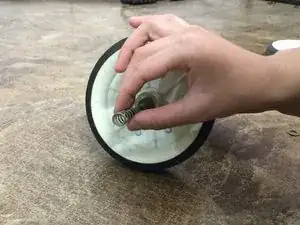

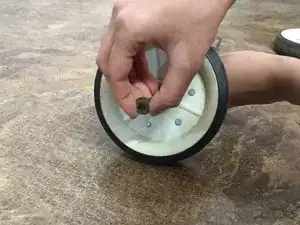

    • Slide on the first washer, the spring, and then the second washer back on the axle.

    • Repeat steps 6 and 7 for the second wheel.

  8. MvwKXLPTAbOhAPWO
    MvwKXLPTAbOhAPWO
    6BZepWjYl1gAbjp5
    y6UtSci2BBGLTeKS

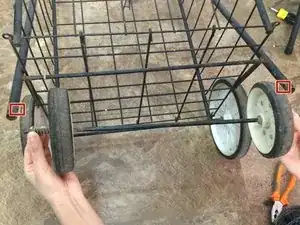

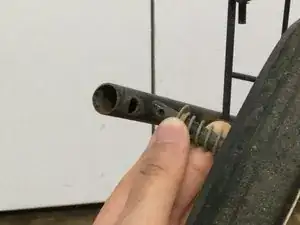

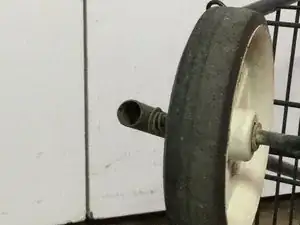

    • Carefully place the front wheel axle with the new wheels in the side holes of the cart’s legs.

  9. 5ADbxOTNkC6jXufH
    5ADbxOTNkC6jXufH
    yn2fy4BneenRWn1b
    XZjkvZmRsGTXmWDb

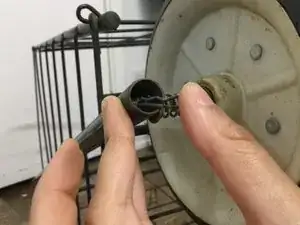

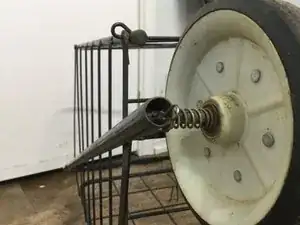

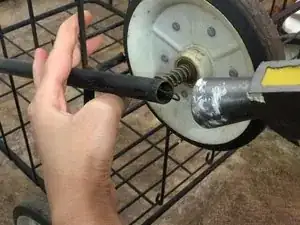

    • Insert the locking pins in each hole at both ends of the axle until the pins are halfway in the hole.

    • Using the hammer, tap the pins until they are entirely inside the hole.

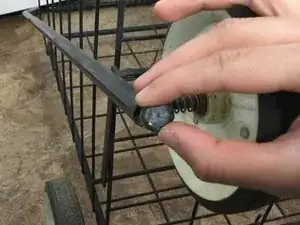

  10. JUouKZJPBuWGtrBb
    JUouKZJPBuWGtrBb
    5xTMKngiBJZvKdRF
    DPEVSWWrDNnyZbcy

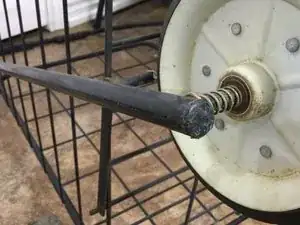

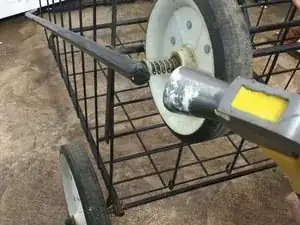

    • Lastly, push the stoppers in each hole of the cart's legs.

    • Using the hammer, tap them in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
