Ford Focus Door Interior dome light assembly Replacement

Geschrieben von: Cassidy
  • Kommentare: 1
Ford Focus Door Interior dome light assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

1 - 2 Stunden

Einleitung

The inside part of the interior dome light assembly is cracked.

  1. DhKUNkITPHrOoNH1
    DhKUNkITPHrOoNH1
    ODfVsyeVvs2uOhNc

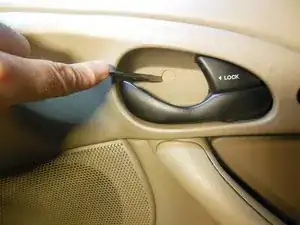

    • Remove the screw cover in the handle housing using a flathead screwdriver.

  2. Lgqp23GPnxOuRhVe
    Lgqp23GPnxOuRhVe
    cDdd6sy21joQeVYC

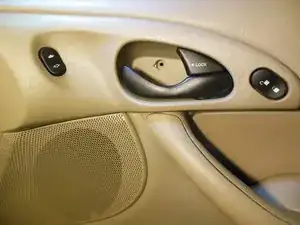

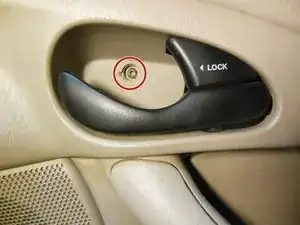

    • Remove the screw that is holding the handle housing with a T20 Torx screwdriver.

  3. flbBSWsxTeMVZGWh
    flbBSWsxTeMVZGWh
    yVmBYH6ykUB6KGUY

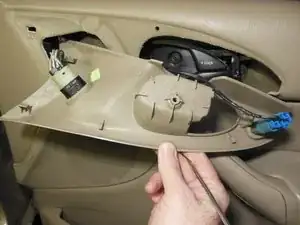

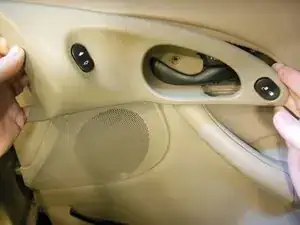

    • Carefully pull the handle housing off.

    • Do not pull too hard. There are wires attached to the back of the housing.

  4. dtplxfdZIyqLgNLo
    dtplxfdZIyqLgNLo
    O1beBqqOUjCk1OlL
    I5KySBxmpZYBkN3F

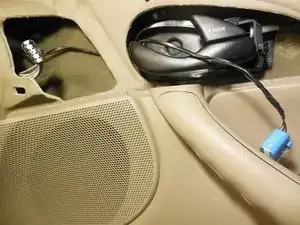

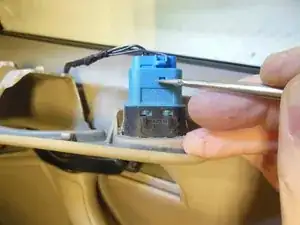

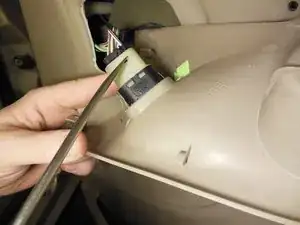

    • Detach the wires on the handle housing with a flathead screwdriver by pushing upwards on the release slot.

  5. QoWrAbcArgTTFYEd
    QoWrAbcArgTTFYEd
    hXfmrVvrugJOOj6y

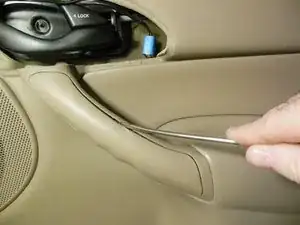

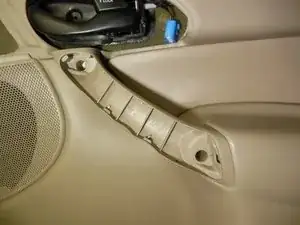

    • Remove the cover on the door grip by prying gently with a flathead screwdriver.

  6. UWwUYrNDP2eWViLQ
    UWwUYrNDP2eWViLQ
    VhWBc12VwYQ1YFhQ

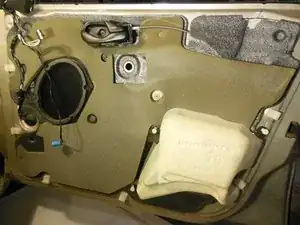

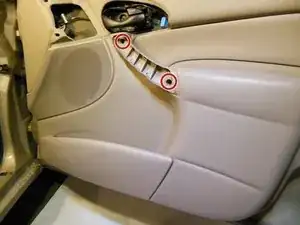

    • Take off the inside door panel by removing all screws with a T20 Torx screwdriver.

    • There are nine screws in total: two on the front, three on the outer side, two on bottom, and two on the inner side.

  7. HeD3UnAaQIli1Gog
    HeD3UnAaQIli1Gog
    oPJP6LYyfcNFoCZB
    bAQ32nmMoYaXtlX4

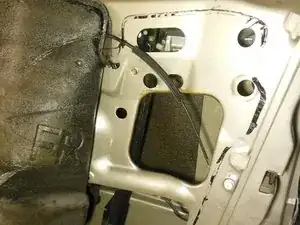

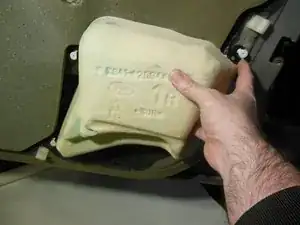

    • Pull the insulation back to access the door handle bracket.

    • Use an X-acto knife if needed.

  8. xKPAPxhW6UNejhNk
    xKPAPxhW6UNejhNk
    CVIlhhXlkQu1MR6h
    iHRHNUdPEYD22PKn

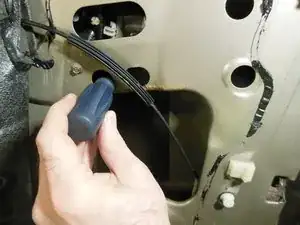

    • Remove the two screws holding the handle bracket with a T20 Torx screwdriver.

  9. NrfXQJOHFadBdJY4
    NrfXQJOHFadBdJY4
    StxAEj61k1TVuFEw
    hLtXKJ1aGGeHhKaa

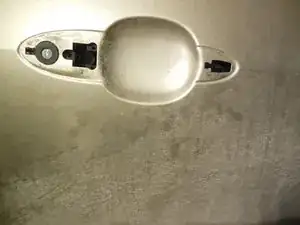

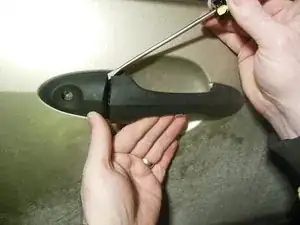

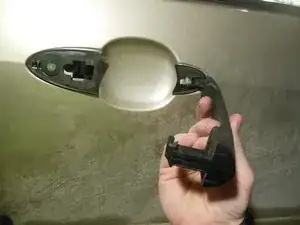

    • Remove the outside door handle by prying gently with a flathead screwdriver to loosen, and then slide it back.

  10. YTlZOkXrdlQRbIc2
    YTlZOkXrdlQRbIc2
    6MkIQZqfMFlOtDBw
    ebYTcGNI1QlCImy1

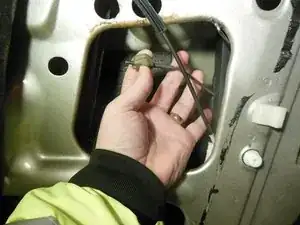

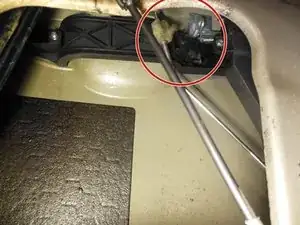

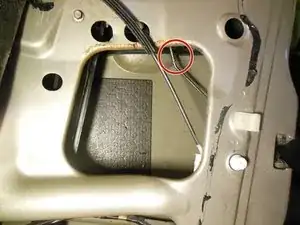

    • Detach the door latch rod from the handle bracket by pulling the plastic end out of the metal loop.

  11. q2mLgJVyqt5VOkGL
    q2mLgJVyqt5VOkGL
    3s24uIL2K2cUIxI2

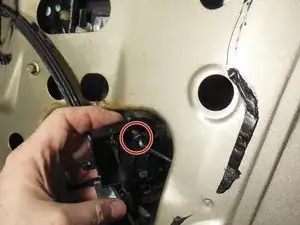

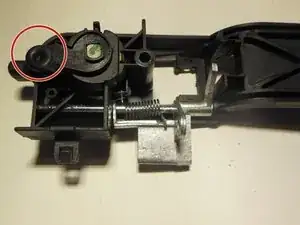

    • Pull the locking rod free from the handle bracket and remove the broken handle bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
