Einleitung
After too many charging cycles, the battery's capacity will be decreased. This is true for any Lithium-ion battery. Luckily the replacement of the battery in this device is very simple.
Werkzeuge
-
-

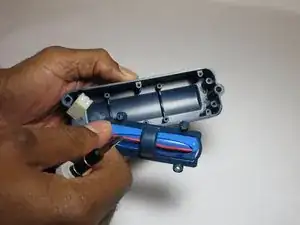

To open up the casing, you will need to unscrew the four Phillips #0 15mm screws which are accessible from the back.
-
-
-
Disconnect the battery from the motherboard by lifting up on the white plastic tab on the top of the connection.
-
Gently pull the cord out by the white plastic adapter. Do not pull from the red and black cord.
-
-
-
Slowly pull the motherboard out of the casing. Make sure the loose battery wire doesn't get snagged.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
