Fosera Scandle 200 Charging Terminal Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide will explain and show how to replace a charging terminal that has stopped working. Replacing it requires the use of a soldering iron and the Spudger. This is a fairly easy replacement guide and should only take around fifteen minutes.

  1. TKaa2Ux4SkYuSnk2

    • To open up the casing, you will need to unscrew the four Phillips #0 15mm screws which are accessible from the back.

  2. 6GBgVgWhqqT6RLwI

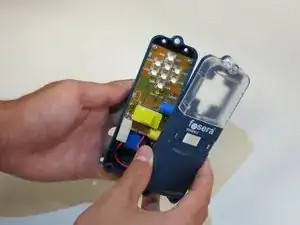

    • Gently separate the two halves of the casing.

  3. C1WVHcrHIo6rwAcI

    • Disconnect the battery from the motherboard by lifting up on the white plastic tab on the top of the connection.

    • Gently pull the cord out by the white plastic adapter. Do not pull from the red and black cord.

  4. vh2hWT5JMTE61jD6

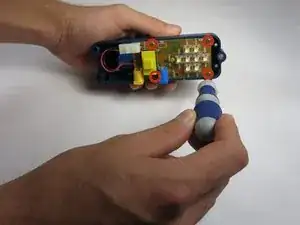

    • Unscrew the Phillips four #0 15mm screws to free the motherboard from the casing.

  5. MKaYFD5od5OTQ2la

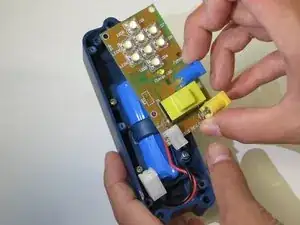

    • Slowly pull the motherboard out of the casing. Make sure the loose battery wire doesn't get snagged.

  6. IaMshSoZNKTFIA2A

    • Use caution when using a soldering iron, the tip will be very hot.

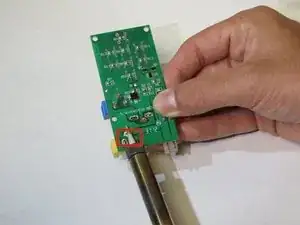

    • Locate the charging terminal's three prong connectors on the back of the motherboard.

  7. YkONdfitJbQDEpKG

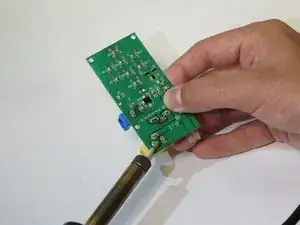

    • Start melting the solder on each prong connector individually with the soldering iron.

  8. WMRB2TvhtKM4rBBH

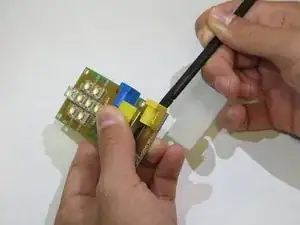

    • Use the flat end of the spudger to pry the charging terminal away from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
