Einleitung
If the lawn chair on your wheelchair is broken, learn how to replace it!
But first, familiarize yourself with tools you will be using with the Free Wheelchair Mission Tools Maintenance Guide.
Werkzeuge
-
-

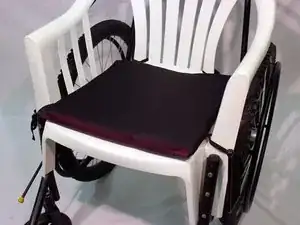

Locate the four straps on each corner of the cushion.
-

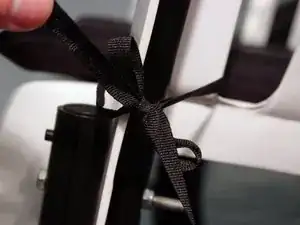

Untie each of the straps and remove the cushion from the chair.
-
-
-

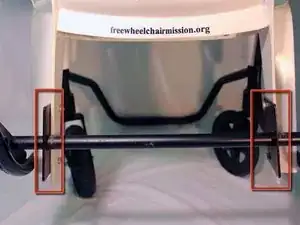

Turn the chair around and locate the two base plates that hold the axle to the back of the chair.
-

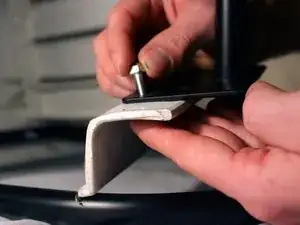

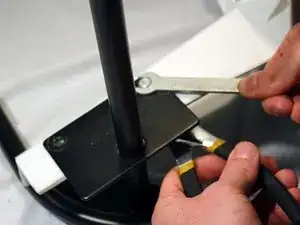

Hold the nut with the pliers. In the other hand, use the 10mm wrench to remove the screw.
-
-
-
Locate both of the brakes. They are each located on the front of the chair between the rear tire and the frame.
-

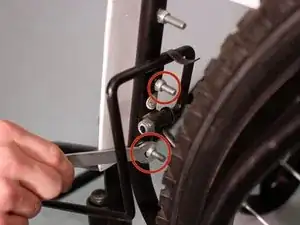

There are two screws connecting each of the brakes to the frame.
-

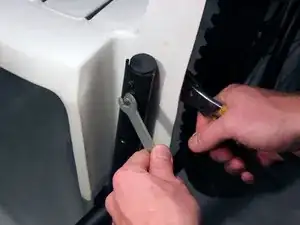

Remove both of the screws from the frame using the 10mm wrench and pair of pliers.
-
-
-

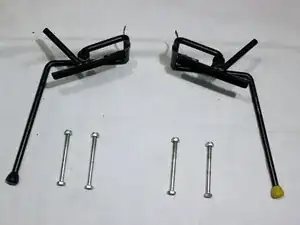

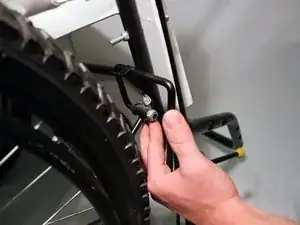

Remove the brakes from the frame.
-
Repeat with the brake on the other side of the wheelchair.
-
-
-

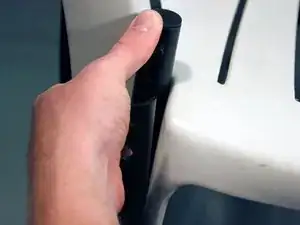

Locate the screws that hold the back frame, chair, castor wheel, and front frame together.
-

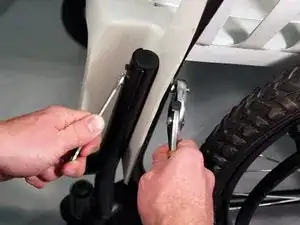

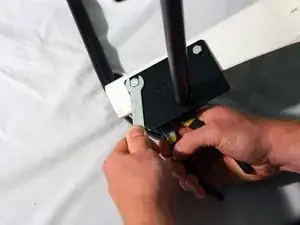

Remove both of these screws using the 10mm wrench and a pair of pliers.
-

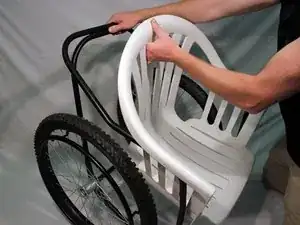

To place a new lawn chair into the wheelchair, follow these instructions in reverse order.
