Einleitung
The rear wheel axle holds the rear wheels to the wheelchair and allows smooth operation of the wheelchair.
Before maintaining the Rear Wheel Axle, familiarize yourself with tools you will be using with the Free Wheelchair Mission Tools Maintenance Guide.
Werkzeuge
Ersatzteile
-
-

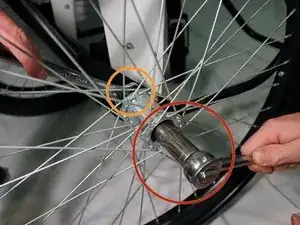

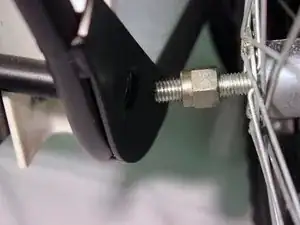

Attach the 19mm socket wrench to the head of the bolt in the middle of the wheel
-
With the other hand use the 19mm crescent wrench to hold the nut in place
-
While holding the 19mm crescent wrench in place, use socket wrench to unscrew the bolt
-
Remove the wheel from the axle
-
-
-

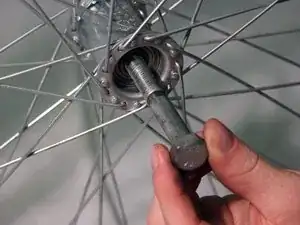

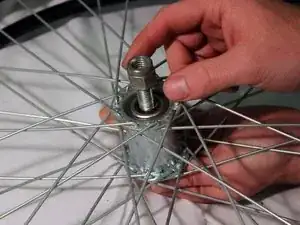

Unscrew the nut holding the bolt and wheel together using your hands.
-
Repeat step on other wheel
-
-
-

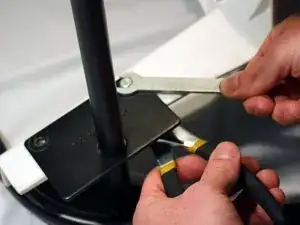

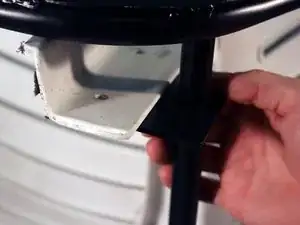

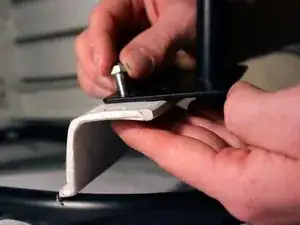

Using the pliers to hold the bolt in place, use the 10mm wrench to remove one bolt from the baseplate.
-

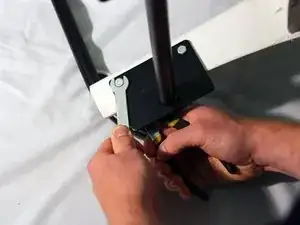

Repeat above step on second bolt
-

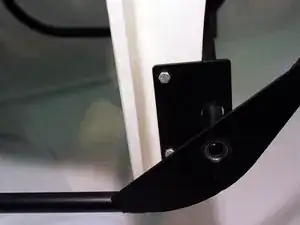

Repeat the process on the other baseplate, once one baseplate is loose from the chair and frame,
-
-
-

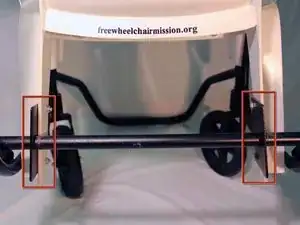

Once both baseplates are loosened from the chair, pull the axle off from the wheelchair
-

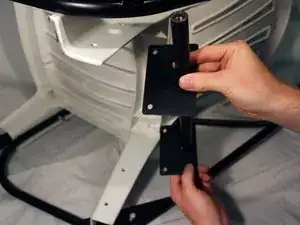

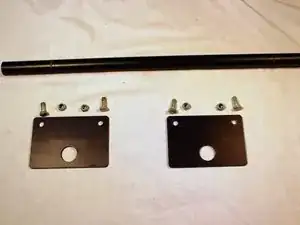

Slide the baseplates off of the axle
-
To reassemble the axle to the wheelchair, follow these instructions in reverse order.
