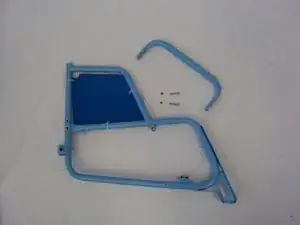

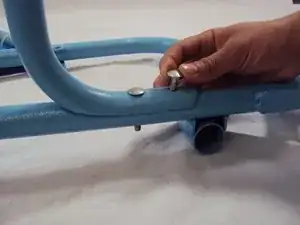

    • Align the crossbar (with the hole in the center) with the screw holes on the bottom of one frame piece.

    • Attach the crossbar to the left frame piece with two [2] frame nuts and bolts.

    • Repeat on the opposite frame piece.

  2. bKVHijBnV2TAPbm1
    bKVHijBnV2TAPbm1
    LGqWLoMdqUXBoV4m
    EhP5SaACVQLeg2aB

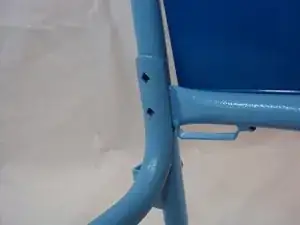

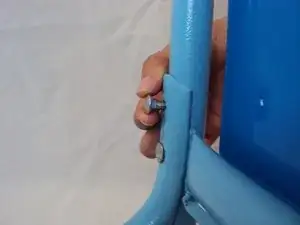

    • Align the second crossbar with the holes on the back of the frame.

    • This crossbar has two square holes on either side.

    • Attach the crossbar to the frame using four [4] frame nuts and bolts.

  3. HLLWFLEIMBFeeEQX
    HLLWFLEIMBFeeEQX
    TDVqnx5pXXDHc6nc
    XFbq1DYIKW5hyRmC

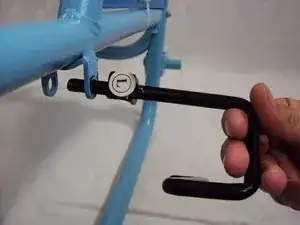

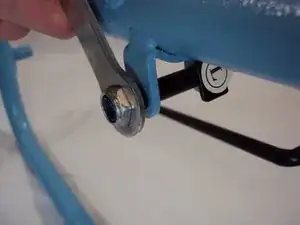

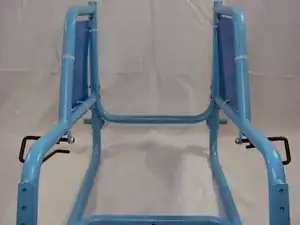

    • Align the left (L) frame piece with the brake hole on the left frame piece.

    • Insert and tighten using one [1] brake bolt.

    • Repeat using the right (R) brake with the right frame piece.

  4. 3FbOQIZeLyGTZXR4
    3FbOQIZeLyGTZXR4
    kX2RZV1Uta5xxcr1

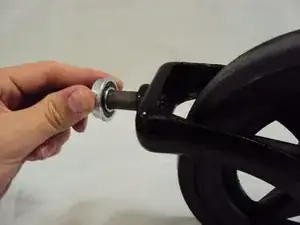

    • Slide the ring-shaped piece of one castor bearing onto the axle of one castor.

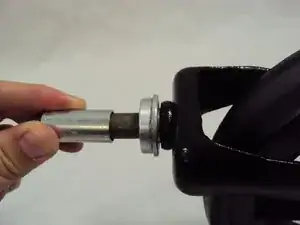

    • Slide the metal tube piece onto the axle of the castor.

    • Repeat for the second castor.

  5. mSs4Pl1VKnQIud4y
    mSs4Pl1VKnQIud4y
    knspvMPYguJVjPWn
    NBTO465cQsbRRCTX

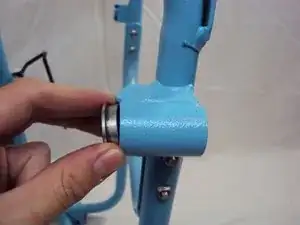

    • Slide another ring shaped bearing piece into the castor hole on the frame.

    • Insert the entire castor piece (castor, ring, and tube) into the opposite side of the hole.

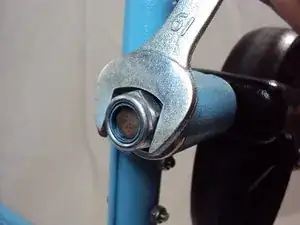

    • Secure the castor and bearing pieces with a castor bolt.

    • Repeat on the opposite side of the frame.

  6. gtILWJ4U6FiBMNqa
    gtILWJ4U6FiBMNqa
    bTgAthTRNZ1y1uKT
    fVvkfJxpexbAgwRm

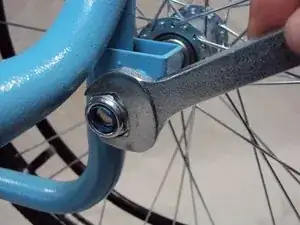

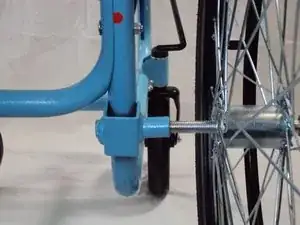

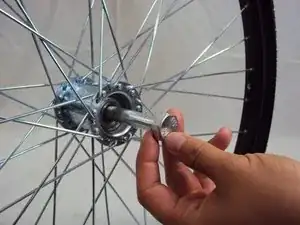

    • Insert an axle bolt through the center of a rear wheel.

    • Insert the axle bolt with wheel into the axle hole on the frame.

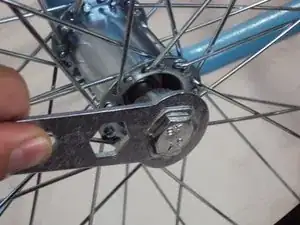

    • Tighten the axle bolt.

    • Secure the wheel with a bolt on the opposite side of the hole.

    • Repeat on the opposite side of the frame to attach the other wheel.

  7. M6ANWaVJCHJKhusK
    M6ANWaVJCHJKhusK
    3KehDS3QK6ExKJcJ
    XNWAgWZ62cNBNss4

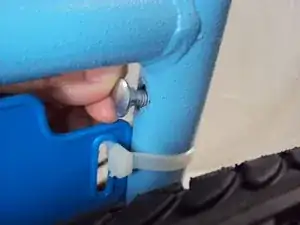

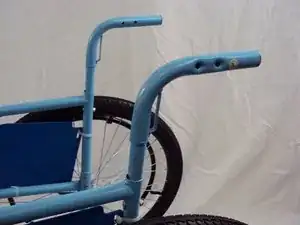

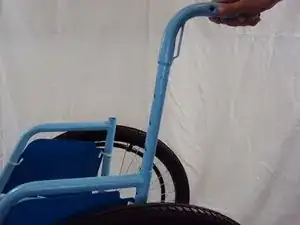

    • Slide each handle into the respective slot on the top of the wheelchair.

    • Adjust the handles up or down to your desired height.

    • Secure the handles in place with one bolt and nut for each side.

  8. DfeCuL2QATrRnHZA
    DfeCuL2QATrRnHZA
    STpqTCjZphNkvBa3

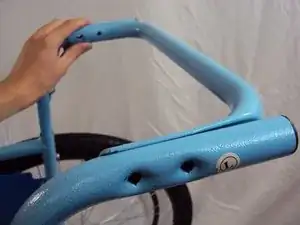

    • Insert the remaining crossbar between the handles, and align the holes on both sides.

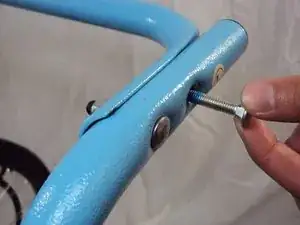

    • Secure the crossbar with four [4] blue tipped bolts and rubber tipped nuts (two on each side).

  9. s3lySWT4ZcAQjChn
    s3lySWT4ZcAQjChn
    2UQ3CGqMKISbvadq
    • Orient the plastic seat with the smooth side up.

    • The rear strap can be attached to the seat in one of three positions in order to accommodate for people of different heights.

    • Loop the straps over the bars of the frame on either side.

    • Rotate the wheelchair onto its back side.

    • Secure the seat by tying each strap together.

    • Make sure that the straps are tied tightly so that the seat does not fall off the wheelchair.

  10. NjOi1MVurmQeRcwr
    NjOi1MVurmQeRcwr
    QkwNedhy4BUOG3uT

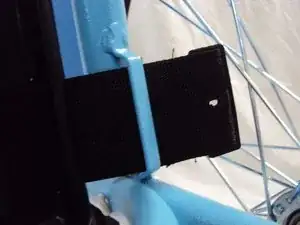

    • Reorient the chair so it is upright.

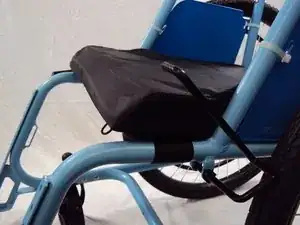

    • Place the seat cushion on top of the plastic seat with the angled side in front.

  11. YQHpQQeVVwJhhnXG

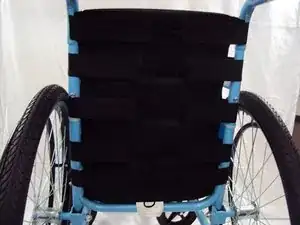

    • Place the bottom of the backrest against the back of the seat cushion.

    • Loop each strap behind the vertical bars of the frame.

    • Secure the backrest by tying each strap together.

    • Make sure that the straps are tied tightly so that the backrest does not fall off the wheelchair.

  12. H551S31XFUQXg3WM
    H551S31XFUQXg3WM
    2BEUWdLyArfaxboU
    rxYOWcRRZOec1yCo

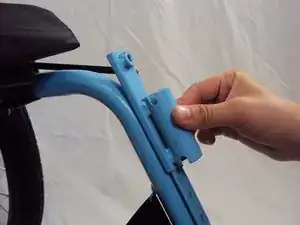

    • Slide a footrest socket over the rail located near the front of the seat.

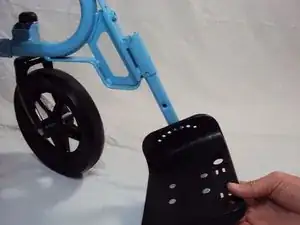

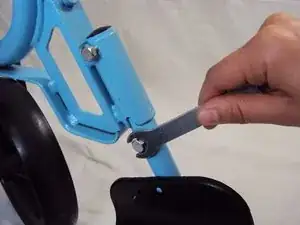

    • Insert a footrest through the bottom of the footrest socket.

    • Secure the footrest with a bolt above and below the socket.

    • Adjust the footrest socket to your desired height.

    • Align the socket's bolt with the nearest hole in the rail, and tighten the bolt.

    • Repeat this step on the opposite rail.

  13. QDYkskhPNtoSgIsJ

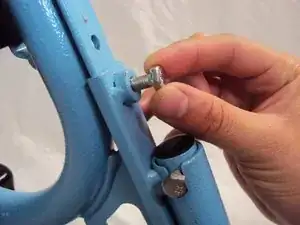

    • Adjust the footrest socket to your desired height.

    • Align the socket's bolt with the nearest hole in the rail, and tighten the bolt.

    • Repeat this step on the opposite rail.

  14. unJZMQh2OLYETeLQ

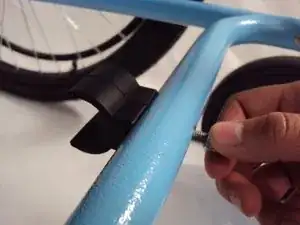

    • Insert the pump bracket through the lower crossbar.

    • Secure the bracket with a rubber tipped nut.

    • Place the tire pump in the bracket.

Abschluss

To disasemble your device, follow these instructions in reverse order.
