Fugoo Style XL Speaker Replacement

Using your hand, unscrew the large screws underneath the speaker.

Using your hand, gently lift the large plastic tab secured to the rubber holding.

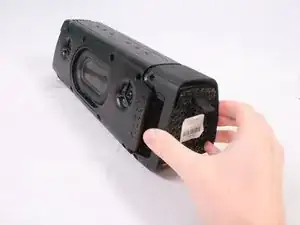

After lifting the tab, slide the speaker out of its case.

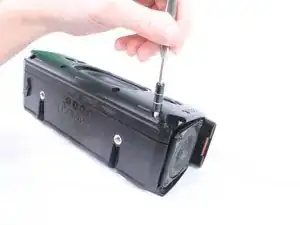

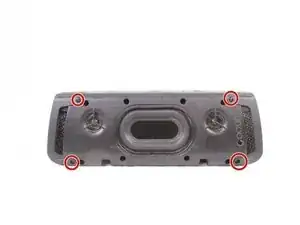

There are 8 screws (4 on each side) holding covers that conceal the bass speakers. Remove these 3mm screws using a #2.0 Hex screwdriver.

Using your hand, pull the covers away from the speaker.

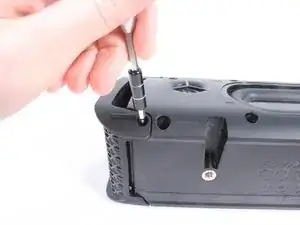

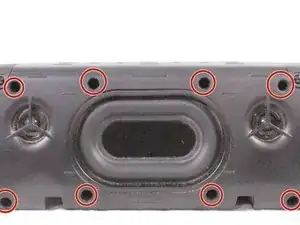

Using a #2.0 Hex screwdriver to unscrew the 8 12mm screws depicted.

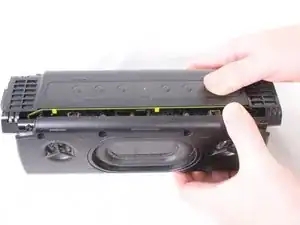

Gently pull apart the front casing from the back casing.

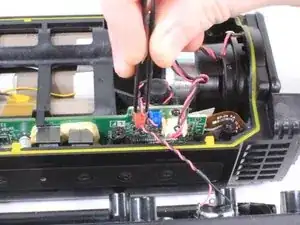

Using a pair of tweezers or your hand, carefully remove the red bundled cable connectors from the motherboard.

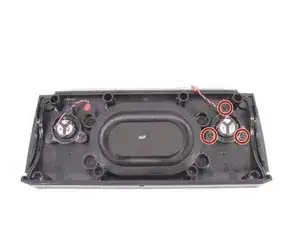

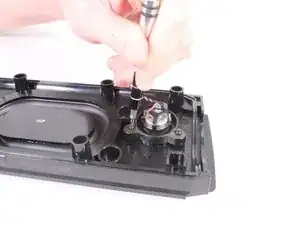

Each speaker is attached to the casing with 3mm screws. Remove the screws using a #2.0 Hex screwdriver.

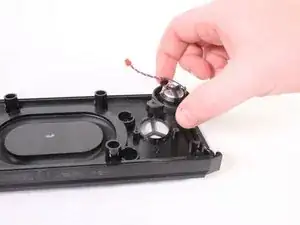

Once the screws are removed, carefully lift the speaker from the casing.
