Einleitung
This guide shows how to remove and replace the battery of the Fugoo Tough.
-
-
Begin by unscrewing the four 10.72mm corner screws using the Hex 2.0 screwdriver.
-

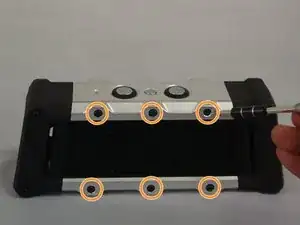

Using the Hex 1.5 screwdriver, remove the remaining six 5.79mm screws on the front of the speaker.
-

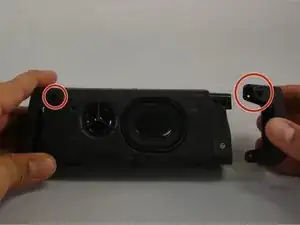

Pull the front part of shell away from the back part of shell.
-
-
-
Change to the h1.3 head. Remove all four 5.57mm screws on both speaker covers.
-

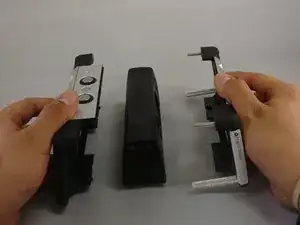

Pull on the speaker covers to remove them.
-

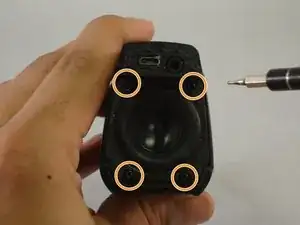

Rotate to side the speaker that has the charging port. Remove the four 5.57mm screws facing you.
-

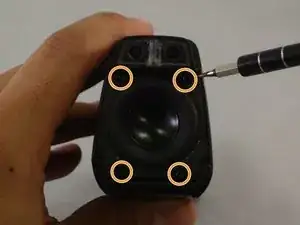

Rotate the speaker 180 degrees and then remove the four 5.57 screws on the side speaker that has the power/bluetooth buttons.
-
-
-

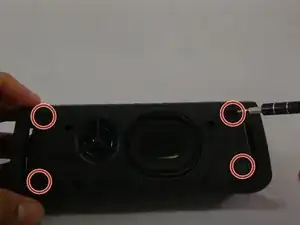

Have back of speaker facing you, remove 5-12.70mm screws using 1/16 flat head screwdriver.
-

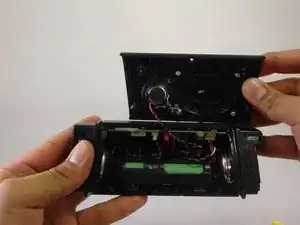

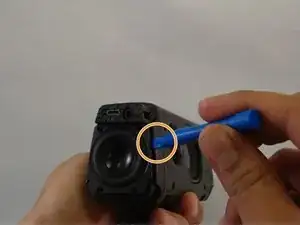

Using the plastic opening tool, you will be able to wedge back face of speaker off.
-
-
-

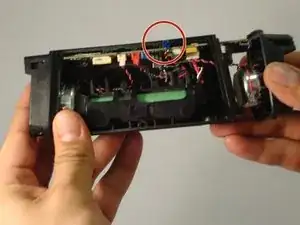

Remove the blue "clip" from the mother board, then pull the on the speaker and remove it, to give you more room to work
-

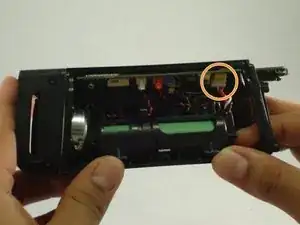

Gently pull down on the largest bundle of wires connected to the mother board by a white clip.
-
The battery can now be replaced
-
To reassemble your device, follow these instructions in reverse order.
9 Kommentare
Is it waterproof afterwards?
TM M -
what are the battery specs? where can one be purchased?
Looks like an 18650 battery with wires soldered to a plastic housing that connects the 2 poles. The battery is slightly thicker but I think it's the wrap around it to keep it as a single unit. Mine just went bad so I'm going to try to swap it out. I'll update if I'm Successful.
