Einleitung

  1. DmLKnwfTKcBDkeeG
    DmLKnwfTKcBDkeeG
    ktOSOEF1HYgcKBPf
    5R6IcjtHBHME4eqm

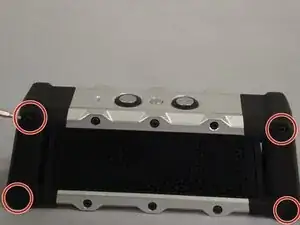

    • Begin by unscrewing the four 10.72mm corner screws using the h2.0 screw driver.

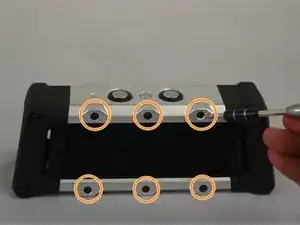

    • Using the h1.5 screwdriver and remove remaining six 5.79mm screws on the front of the speaker.

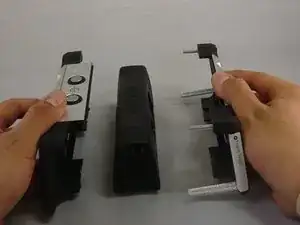

    • Pull front part of shell away from back part of shell.

  2. flBM6yaoHYrwEhDU
    flBM6yaoHYrwEhDU
    6OUiLwAxY1TyMqNG
    BG3tcRTnHmG6BLub

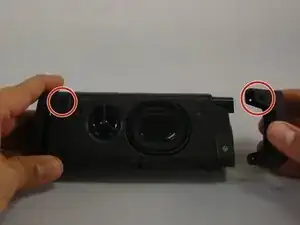

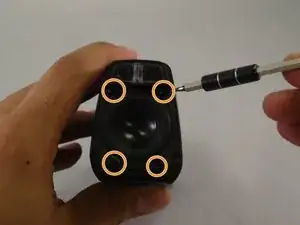

    • Change to the h1.3 head. Remove all 4-5.57mm screws on both speaker covers

    • Pull on the speaker covers, thus removing them

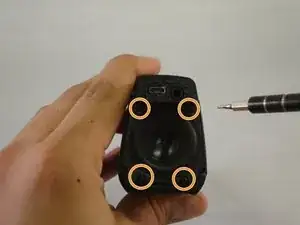

    • Rotate to side the speaker that has the charging port. Remove the 4-5.57mm screws of the facing you.

    • Rotate the speaker 180 degrees and then remove 4-5.57 screws on the side speaker that has the power/bluetooth buttons

  3. ayhtkpjTm6vmmASp
    ayhtkpjTm6vmmASp
    VDHbxKX4s34Rra22
    fgTKcAC4BNQUbHg4

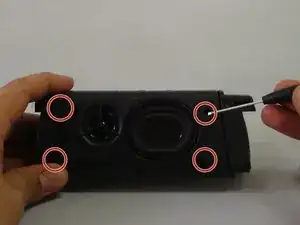

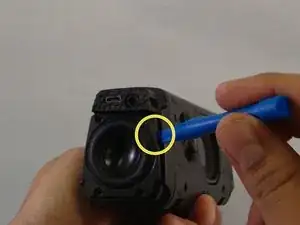

    • Have back of speaker facing you, remove 5-12.70mm screws using 1/16 flat head screwdriver.

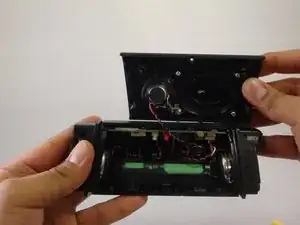

    • Using the plastic opening tool you will be able to wedge back face of speaker off

  4. eeHBRWQoHZjAG6vj
    eeHBRWQoHZjAG6vj
    MeKJsmpSlEiKMfaS

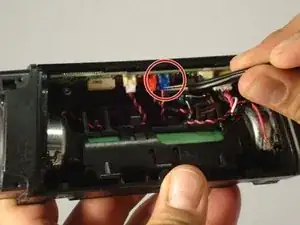

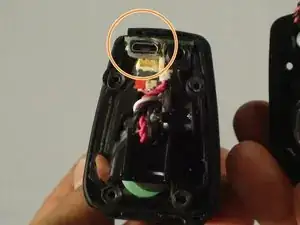

    • The circuit board will be revealed, you will notice the various individual speaker connections to the circuit board.

    • Remove blue "clip" from the circuit board.

    • From this point, pull the side panel off gently, exposing the charging port.

    • At this time, you can remove the charging port and replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
