Fugoo Tough XL Bass Speaker Replacement

Geschrieben von: Austin Coats

Kommentare: 3

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

1 Stunde

Einleitung

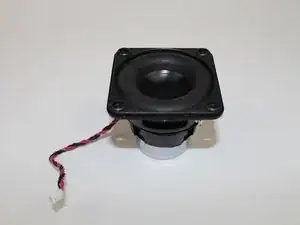

The two bass speakers are located on the left and right ends of the Fugoo Tough XL device.

Werkzeuge

Schritt 1

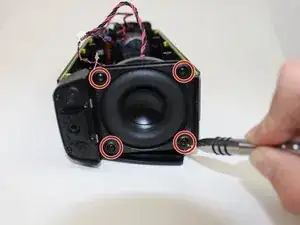

Remove four 3 mm screws using a 3 mm Hex screwdriver.

Schritt 2

Gently remove the outer casing.
It should be relatively easy to pull apart, but in the case that it is not easy, don't be afraid to apply the necessary force to pull them apart.

Schritt 3

Pull the device from the external case.
Remove four 12 mm screws using a T10 Torx screwdriver.
Remove eight 6 mm screws using a T10 Torx screwdriver.

Schritt 4

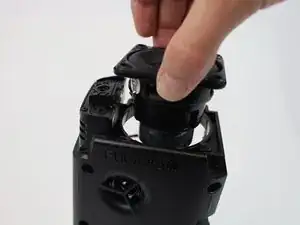

Use your hands to gently remove the side plates.
Use the plastic opening tool to pry off the back plate.
It is best to work on the side with the Fugoo trademark.

Schritt 5

Slowly pull the front casing from the back casing. If possible, try to avoid putting any tension on the connected cables.
Separate the two at a slow, consistent pace to avoid damaging the speaker cables.

Schritt 6

Carefully untangle the wires that connect the speaker to the motherboard.

Schritt 7

Use tweezers to remove the two ribbon wires on the left and right side of motherboard.
Do not pull the cables by the cord, as this could damage the cables and the motherboard. It is best to always disconnect the cables from the base, which is closest to the motherboard, using an iFixit opening tool.

Theres a second smaller ribbon cable on the underside of the board on the left in my model, for a total of *3* ribbon cables that need to be disconnected.

Rob B -

Schritt 8

Pull the motherboard halfway out.
Gently unplug the ribbon using the tweezers.
There is a hidden ribbon on the motherboard, that becomes visible once the motherboard has been pulled out.
