FujiFilm FinePix S4500 Viewfinder Replacement

Remove the two 3.5 mm Phillips #1 screws in these positions on the left side of the camera with a screwdriver.

Remove the three 3.5 mm Phillips #1 screws in these locations on the bottom of the camera with a screwdriver.

Remove the four 3.5 mm Phillips #1 screws in these positions on the right side of the camera with a screwdriver.

Use a plastic opening tool to separate the back panel from the camera on the left side.

Use a plastic opening tool to separate the back panel from the camera on the bottom.

Use a plastic opening tool to separate the back panel from the camera on the left side, then remove the back panel from the camera.

Use a plastic opening tool to separate the LCD screen from the camera.

Flip up the black tab holding the LCD ribbon wire in place and remove wire.

Remove the highlighted 2.7 mm Phillips #1 screws to release the metal cover.

Turn the camera on its side and remove the highlighted 2.7 mm Phillips #1 screws.

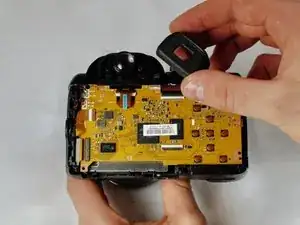

Lift and remove viewfinder cover

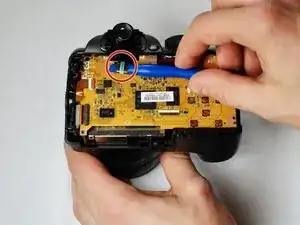

Use the plastic opening tool to remove the ribbon wire from inside the camera

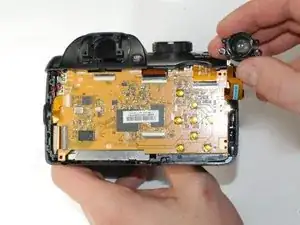

Remove the viewfinder assembly from the camera
