FujiFilm FinePix S5100 LCD Screen Replacement

Geschrieben von: Evans
  • Kommentare: 0
FujiFilm FinePix S5100 LCD Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

This replacement guide will show you how to access the LCD screen on a Fujifilm FinePix S5100 camera. It is recommended to use a magnetic pad to place the screws on in conjunction with the magnetic tools mentioned above. This is to prevent or minimize the chances of losing or misplacing a screw. The LCD screen is a delicate component so take care and use caution when handling it. Keep it away from hazardous liquids and other objects that may pose a risk to damage to the camera.

  1. wFucDfODqix3K2fT

    • Ensure your camera is in the off position.

    • Orient the camera upside down with the lens facing to the left and the battery compartment facing directly toward you.

  2. Open the battery door by pushing down and in the direction of the arrow on the door.

    • Open the battery door by pushing down and in the direction of the arrow on the door.

  3. ynkotnKLHRCXFtCf

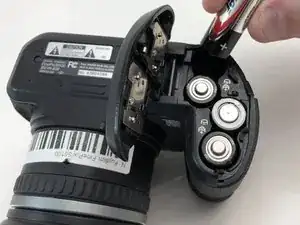

    • Remove four AA batteries from the camera.

  4. pHiesXhyIqWQUKNb

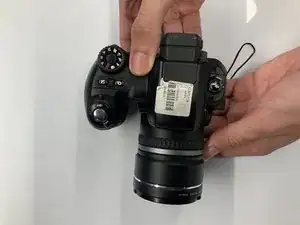

    • Turn the camera so the screen is facing you and the camera lens is facing away from you.

  5. KCTG2mZBYj3QReW2
    KCTG2mZBYj3QReW2
    GJgdbSOG6Chq1jnF
    AFRevwkvsmfKopIn

    • Remove two 0.9mm Phillips #000 screws from the right side of the camera.

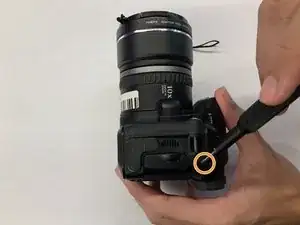

    • Remove one 0.6mm Phillips #000 screw from the left side of the camera.

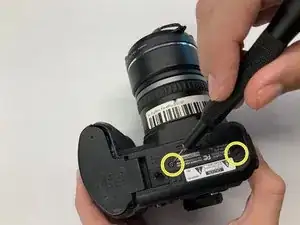

    • Remove two 0.6mm Phillips #000 screws from the bottom side of the camera.

    • When replacing the back cover on the camera, there will be an audible click which ensures the cover has completely seated with the rest of the camera.

  6. hIPnyKdB4iNkRNaG
    hIPnyKdB4iNkRNaG
    rFPi6VQK4uLqUvXu
    ZYVGMsGHZVtxmuCg

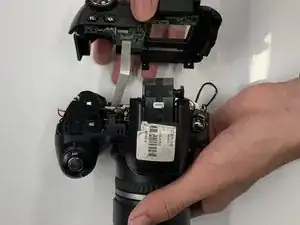

    • Carefully pull the back cover and separate it from the rest of the camera body.

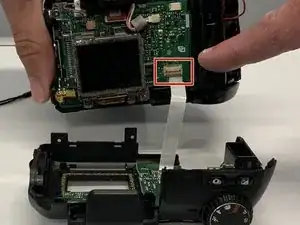

    • Carefully flip up the top of the tan colored tab to disconnect the ribbon cable and completely remove the back cover.

  7. wQYtDTcAl4NMdWCC
    wQYtDTcAl4NMdWCC
    Pr4uTNAVTw65RpfL

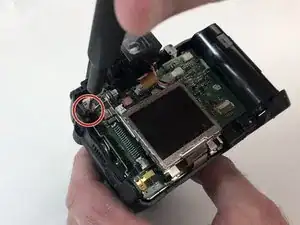

    • Remove the two 1.3mm Phillips #000 screws from the LCD frame.

  8. aSdWAlMlKQEpNoQ5
    aSdWAlMlKQEpNoQ5
    uNXbDO1klPYV5kXY

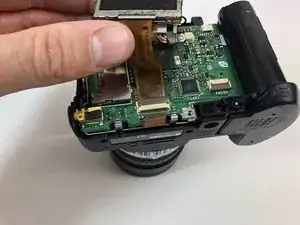

    • Carefully using your hand, grab the LCD screen and pull upward and away from the motherboard.

    • Carefully using your hand, remove the tan digital tape by disconnecting it from the receiving port.

    • Remove the entire LCD screen from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
