FujiFilm FinePix S5100 Power Button Replacement

Geschrieben von: Evans
  • Kommentare: 0
FujiFilm FinePix S5100 Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This replacement guide will show you how to access the power button chip on a Fujifilm FinePix S5100 camera. Keep in mind, the blue tab at the end of the white digital ribbon is very fragile and easy to break or misplace. It helps keep the digital ribbon tape secured in the receiving port. Take care and be mindful in handling this power button chip, as there is no clamp or part that secures it in place. The white tip of the power button chip slides into place at the top of the battery compartment.

  1. wFucDfODqix3K2fT

    • Ensure your camera is in the off position.

    • Orient the camera upside down with the lens facing to the left and the battery compartment facing directly toward you.

  2. Open the battery door by pushing down and in the direction of the arrow on the door.

    • Open the battery door by pushing down and in the direction of the arrow on the door.

  3. ynkotnKLHRCXFtCf

    • Remove four AA batteries from the camera.

  4. pHiesXhyIqWQUKNb

    • Turn the camera so the screen is facing you and the camera lens is facing away from you.

  5. KCTG2mZBYj3QReW2
    KCTG2mZBYj3QReW2
    GJgdbSOG6Chq1jnF
    AFRevwkvsmfKopIn

    • Remove two 0.9mm Phillips #000 screws from the right side of the camera.

    • Remove one 0.6mm Phillips #000 screw from the left side of the camera.

    • Remove two 0.6mm Phillips #000 screws from the bottom side of the camera.

    • When replacing the back cover on the camera, there will be an audible click which ensures the cover has completely seated with the rest of the camera.

  6. hIPnyKdB4iNkRNaG
    hIPnyKdB4iNkRNaG
    rFPi6VQK4uLqUvXu
    ZYVGMsGHZVtxmuCg

    • Carefully pull the back cover and separate it from the rest of the camera body.

    • Carefully flip up the top of the tan colored tab to disconnect the ribbon cable and completely remove the back cover.

  7. GYNGagLLM2PmFBrS
    GYNGagLLM2PmFBrS
    GhPimnxXlgbcYUmK
    1AakAMILg6LdVeRh

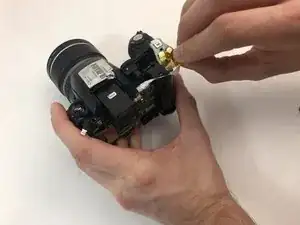

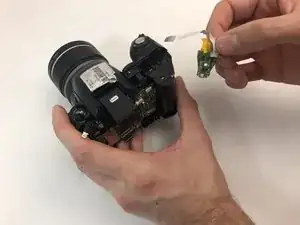

    • Use caution when removing the power button chip because the opposite end of the white digital tape may be pulled out from the receiving port.

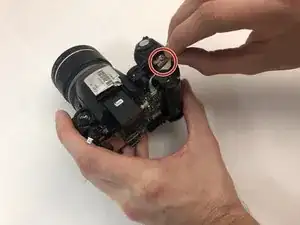

    • Using your hand, gently grab the back of the power button chip from underneath the actual power button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
