Einleitung

Although a non-functioning screen would be hard to manage with this device, replacing the LCD screen is relatively easy.

  1. 2BFXu46MZDTJcSkU
    2BFXu46MZDTJcSkU
    VmBWnp1oKRZaGAem
    TfbeMaEeGg6TO6Mp

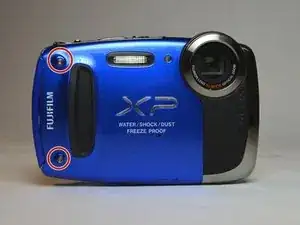

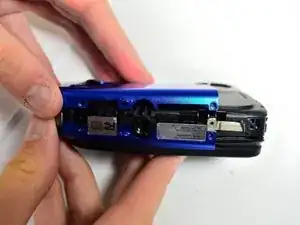

    • Using 1.5mm Hex Screwdriver, remove two 3.0 mm hex screws on the front of the camera.

    • Using Phillips #00 screwdriver, remove two 3.0 mm screws on the bottom of the front face.

  2. 66O1U2pMq262MkIB
    66O1U2pMq262MkIB
    PTSODC6JP2PyPO5y
    EEPWhZkJTXlKKXjX

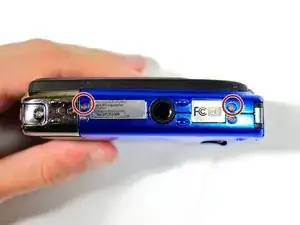

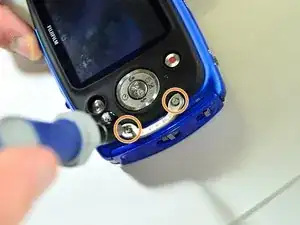

    • Using Phillips #00 screwdriver, remove 3.0 mm screws on the bottom of the camera closer to the back.

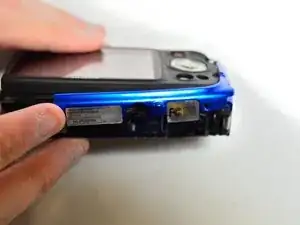

    • Using Phillips #00 screwdriver remove two 3.0 mm screws on the back of the camera. This will remove the eyelet for the camera strap and the rear cover.

  3. QrYClPSYdXbTBwhc
    • Using Phillips #00 screwdriver, remove the two 3.0 mm screws.

  4. IowDeAiPnoNW3qOw
    IowDeAiPnoNW3qOw
    Mbq4bVaj1Xwxjg2T
    B61OlTUCQVTCbMAT

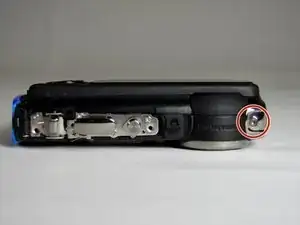

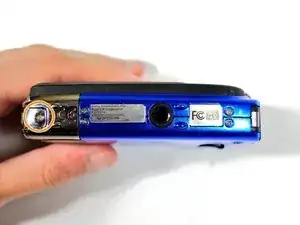

    • Using 1.5mm Hex screwdriver, remove 3.0 mm hex screw on top edge of silver panel.

    • Using Phillips #00 screwdriver, remove 3.0 mm screw on bottom edge.

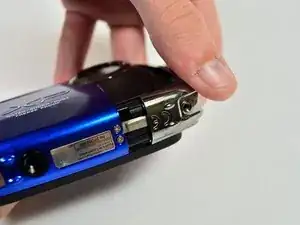

    • Once both screws are removed the silver side casing will slide off.

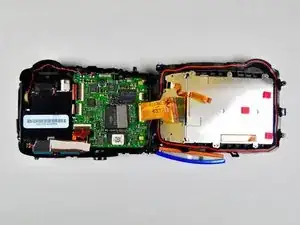

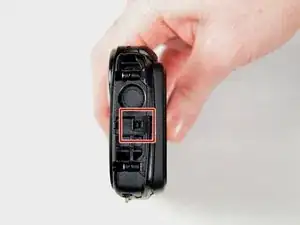

  5. KolM1cE1ZIdVMwxC
    KolM1cE1ZIdVMwxC
    gYASRhtmmGSDkQkp
    SvTIl2WGRJviHkKS

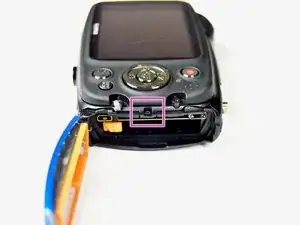

  6. PTUC4bFfICFeETjU
    PTUC4bFfICFeETjU
    rYOlNxT1pL2f1gML
    yUgAGNbjwMCys3rV

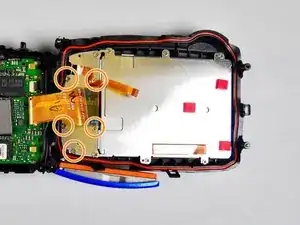

    • Using Phillips #00 screwdriver, remove seven 3.0 mm screws.

    • Remove the remaining five 3.0 mm screws which hold the rear case and the control panel together.

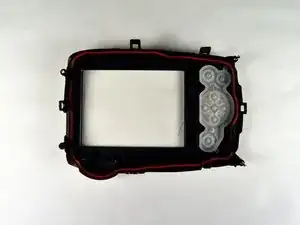

    • The rear panel is now free from the camera.

  7. ZTaeXHOTnbBuL6Yy
    ZTaeXHOTnbBuL6Yy
    3jIy2aUL2Xhb4uuj
    DJZNSmMeQsyf1mbM

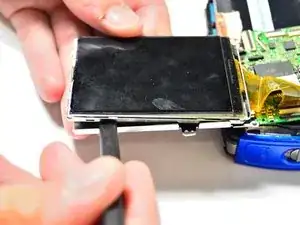

    • Take the spudger and wedge it in between the screen and the frame.

    • Slowly make your way around the screen with the spudger just enough to separate the screen from the frame.

  8. XXRNlBHSAu5upwMI
    XXRNlBHSAu5upwMI
    qFKYYJNSesrHrUq3

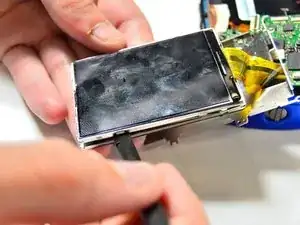

    • Take the spudger again and wedge it in the thinner frame to pry the LCD screen from the frame.

    • Make your way around with the spudger just enough to separate the screen and frame once again.

  9. k1aUFrNIxdKaJFj6
    k1aUFrNIxdKaJFj6
    UR1c2LaYjc2kjvKq

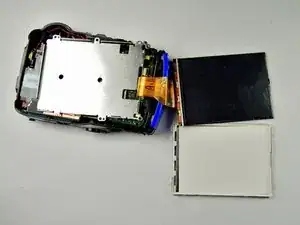

    • Take the spudger and wedge it very carefully between the LCD screen and the very thin and fragile frame.

    • Very carefully make your way around the frame with the spudger, while making sure not to use too much force. Otherwise the screen will be damaged.

  10. 4ghIBuHiXqoM5GtZ
    • Detach the LCD screen from the motherboard by detaching the orange ribbon.

Abschluss

To reassemble your device, follow these instructions in reverse order.
