Fujifilm FinePix Z90 Lens cover/case Replacement

Geschrieben von: Sam Clark
  • Kommentare: 0
Fujifilm FinePix Z90 Lens cover/case Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

If your camera case has scratches or dents, it can be replaced by unscrewing the case of it. You need to take out some screws on the left side, right side and bottom part.

  1. ffHFMLvYJecGA5K2
    ffHFMLvYJecGA5K2
    Le2pAlU2SklZwxxm

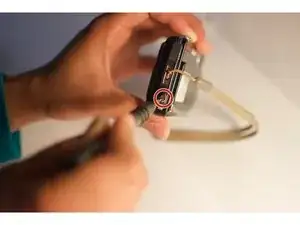

    • Use a small #000 Phillips screwdriver to take the screws out. Keep all the screws in a container and the two different types separate.

    • Remove the two screws on the right side.On the same side there is USB connector, open that little door and unscrew the little screw inside of it.

  2. xf5O3NhXvevssNyA
    xf5O3NhXvevssNyA
    lItJLobvMDPiIkfW

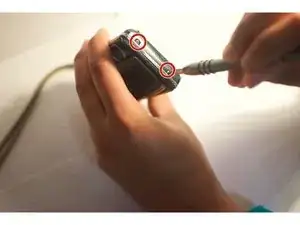

    • Take the two screws on the left side and the two screws on the bottom of the camera.

  3. IYLAQenBrjrfs2HA
    IYLAQenBrjrfs2HA
    BvZwXdT3dYKnrCmb

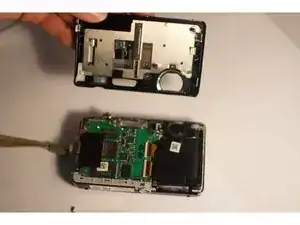

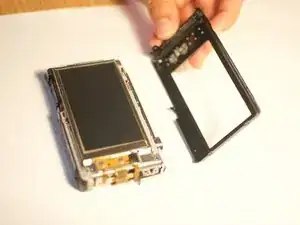

    • By now you will have the front case and the back case separated from each other.

Abschluss

To reassemble your device, follow these instructions in reverse order.
