Use this guide to replace the battery door.
Werkzeuge
-
-
Locate and remove two 6.4mm screws on the bottom of the camera with a Phillips #00 screwdriver.
-
-
-

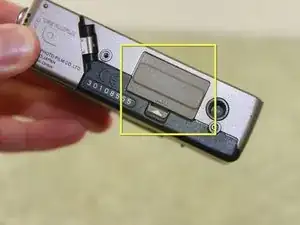

Locate the latch on the battery door.
-
Use your finger pry to it open where it says "BATT."
-
-
-

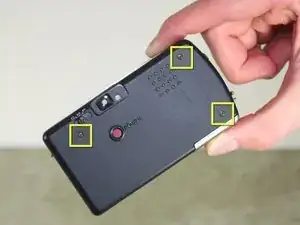

Locate and remove three black 3.80mm screws on the back of the black casing with the Phillips #00 screwdriver.
-
-
-

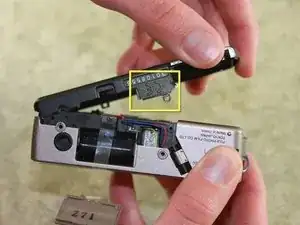

Squeeze the camera placing a thumb on the tab marked CE.
-

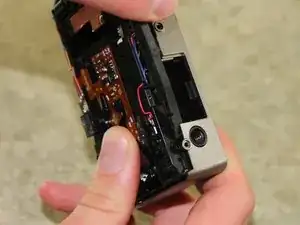

Pull the back half of the camera firmly away from the camera body.
-
-
-

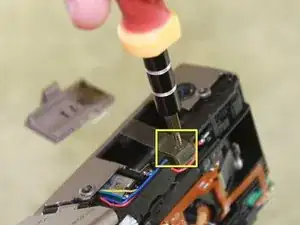

Locate and remove the 3.80mm screw that holds the plastic strip to the camera body with a Phillips #00 screwdriver.
-

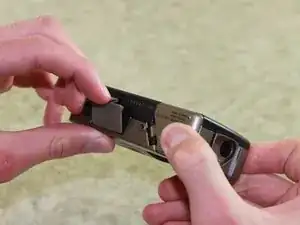

The plastic strip will now come off the camera body.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
