Fujifilm FinePix 4700 Zoom Back Cover Replacement

Geschrieben von: Sarthak Patel
  • Kommentare: 0
Fujifilm FinePix 4700 Zoom Back Cover Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

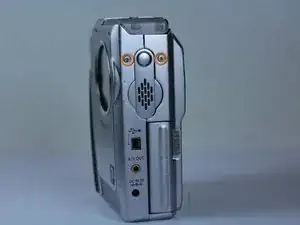

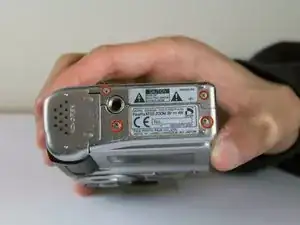

  1. wsYj1rAy1Mqy3gox
    wsYj1rAy1Mqy3gox
    oORaXMlagnkxVfhd
    JLK4wZiN2gIRbSVT

    • Use the Phillips #00 screwdriver to remove the 7 screws on the sides of the camera:

    • Four 3.95mm Phillips screws located on the bottom of the camera

    • Two 3.95mm Phillips screws located on the right side of the camera

    • One 3.95mm Phillips screw located on the left side of the camera

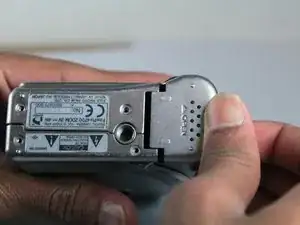

  2. moFRFNJiWPWTPUKU

    • Slide open the battery compartment cover with your thumb.

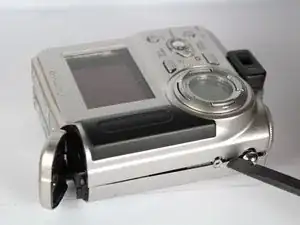

  3. iEiOyCa2Hy4STTvD
    iEiOyCa2Hy4STTvD
    i4kS5paLl6RbBHa2
    OT4El5UHDoVhICFe

    • Wedge the edge of the spudger between the front and back case, near the corner of the flash.

    • Carefully run the spudger along the right edge of the camera, creating an opening.

    • Insert the spudger into the left side of the camera, above the screwhole. Then carefully run it along this edge.

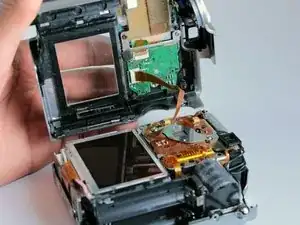

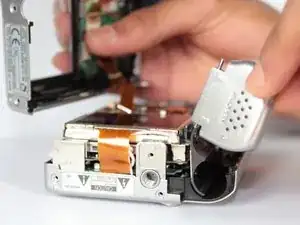

  4. FgdipjLB2EnZW13F
    FgdipjLB2EnZW13F
    KBvUw1H5ivfLdqvV

    • Watch out for the orange ribbon that is still attached to the back cover when you lift it up. It is very delicate and might rip.

    • Slowly lift the back cover straight up, lightly jiggling it if necessary.

    • Remove the battery compartment cover.

  5. nxHQCj55ExpoNrmw

    • Gently insert the spudger under the clip holding the orange ribbon. The clip should lift up and the ribbon will slide out.

    • This step will free the back cover from the rest of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
