Fujifilm FinePix 4700 Zoom Button Circuit Board Replacement

Use the Phillips #00 screwdriver to remove the 7 screws on the sides of the camera:

Four 3.95mm Phillips screws located on the bottom of the camera

Two 3.95mm Phillips screws located on the right side of the camera

One 3.95mm Phillips screw located on the left side of the camera

Slide open the battery compartment cover with your thumb.

Wedge the edge of the spudger between the front and back case, near the corner of the flash.

Carefully run the spudger along the right edge of the camera, creating an opening.

Insert the spudger into the left side of the camera, above the screwhole. Then carefully run it along this edge.

Slowly lift the back cover straight up, lightly jiggling it if necessary.

Remove the battery compartment cover.

Gently insert the spudger under the clip holding the orange ribbon. The clip should lift up and the ribbon will slide out.

This step will free the back cover from the rest of the camera.

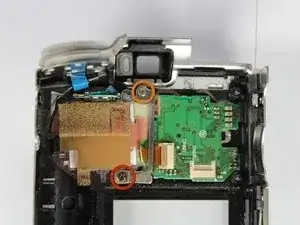

Use the Phillips #00 screwdriver to remove the two screws on the bracket holding the right side of the button circuit board.

One 3.85mm Phillips #00 screw

One 3.4mm Phillips #00 screw

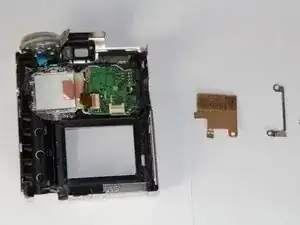

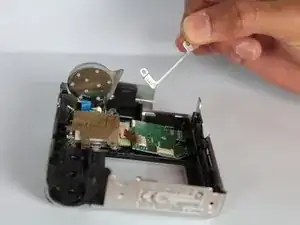

Use your fingers to remove the metal bracket and brown colored film.

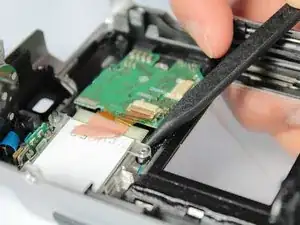

Use the spudger to pry up the clear plastic tab.

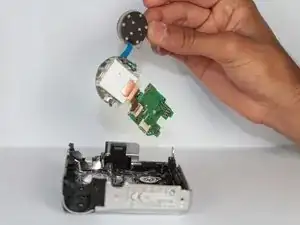

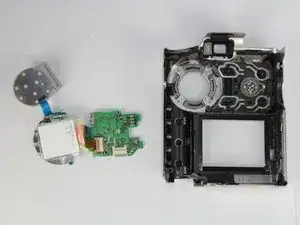

Pull the button receiver, button circuit board, and swivel button out as a single unit.
