Einleitung

  1. wsYj1rAy1Mqy3gox
    wsYj1rAy1Mqy3gox
    oORaXMlagnkxVfhd
    JLK4wZiN2gIRbSVT
    • Use the Phillips #00 screwdriver to remove the 7 screws on the sides of the camera:

    • Four 3.95mm Phillips screws located on the bottom of the camera

    • Two 3.95mm Phillips screws located on the right side of the camera

    • One 3.95mm Phillips screw located on the left side of the camera

  2. moFRFNJiWPWTPUKU
    • Slide open the battery compartment cover with your thumb.

  3. iEiOyCa2Hy4STTvD
    iEiOyCa2Hy4STTvD
    i4kS5paLl6RbBHa2
    OT4El5UHDoVhICFe
    • Wedge the edge of the spudger between the front and back case, near the corner of the flash.

    • Carefully run the spudger along the right edge of the camera, creating an opening.

    • Insert the spudger into the left side of the camera, above the screwhole. Then carefully run it along this edge.

  4. FgdipjLB2EnZW13F
    FgdipjLB2EnZW13F
    KBvUw1H5ivfLdqvV
    • Watch out for the orange ribbon that is still attached to the back cover when you lift it up. It is very delicate and might rip.

    • Slowly lift the back cover straight up, lightly jiggling it if necessary.

    • Remove the battery compartment cover.

  5. nxHQCj55ExpoNrmw
    • Gently insert the spudger under the clip holding the orange ribbon. The clip should lift up and the ribbon will slide out.

    • This step will free the back cover from the rest of the camera.

  6. L416umfdFVvfxcR6
    • Pull gently when removing the speaker so you don't rip the wire attached to it.

    • Use the tweezers to grab the speaker (located on left side of the camera) and pull straight up.

    • The speaker will still be connected to the motherboard, but it will not be attached to the front case.

  7. CJOBGwLDRhQ2Oe2X
    • Use the tweezers to pull gently on the small orange ribbon, located in upper left hand corner near the flash, to remove the square insert.

  8. vBRdsFD4QUEYqYYY
    • Use your fingers to slowly pull the flash straight up.

    • The step may take a little jiggling.

  9. UfZtQUpl24SDa3OM
    UfZtQUpl24SDa3OM
    TqHN3EIclxy5vObG
    • Do not fully separate the motherboard unit from the front cover. There is still a ribbon attached and it will rip.

    • Slightly separate the front cover from the motherboard unit (which consists of the motherboard, speaker, screen, and battery compartment).

    • Rotate the bottom portion of the motherboard unit (the screen and battery compartment) over the lens unit.

  10. kSYgpMT5WtihZAsc
    • Use your fingers to remove the tripod mount.

  11. LWbkntWYPVQdJPWi
    LWbkntWYPVQdJPWi
    jQPeRjPmARiLGrvm
    mxXhmbbxAmwM4Uu4
    • Be gentle when undoing the ribbon clips. They break easily.

    • Gently stick the spudger under the ribbon clips and lift them up.

    • Use the tweezers to pull both ribbons out of the ribbon clips.

    • The motherboard unit should now be free from the rest of the camera.

  12. rviZ1NNdT5IMjjG6
    rviZ1NNdT5IMjjG6
    lJ4Hvaj6pfp63lsW
    2uPsVWTXMpyBMGqe

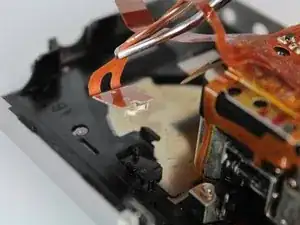

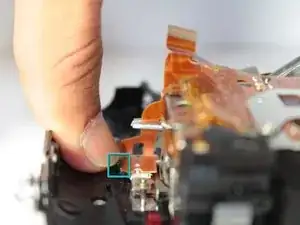

    • Use the spudger to push in the white tab on the square circuit board attached to the front case.

    • Use your finger to pull back the black plastic mount on the right side of the circuit board.

    • While holding back the black plastic mount, use the tweezers to gently lift the ribbon attached to the circuit board.

    • The ribbon and circuit board should both detach from the front case.

  13. MUOxNvKLWAELNuXE

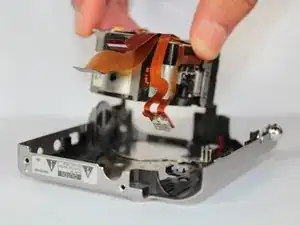

    • Use your fingers to pull the lens unit straight up from the front case.

  14. ICxGFXpyRuOe5gw6
    ICxGFXpyRuOe5gw6
    B6QXNkjAuf21EwGx

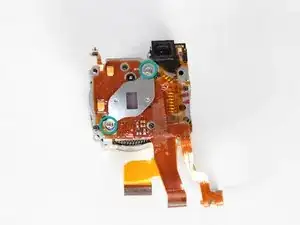

    • Use the Phillips #00 screwdriver to remove the two 4.4mm screws holding the metal bracket on the lens.

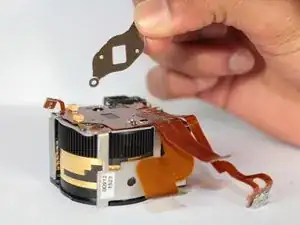

    • Use your fingers to remove the bracket.

  15. BYjRJQiXdFTnKTbj

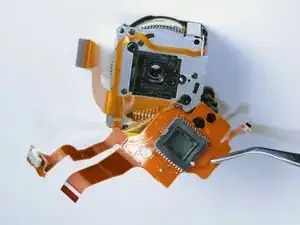

    • Use the tweezers to lift the orange plastic plate from the upper left hand corner.

Abschluss

To reassemble your device, follow these instructions in reverse order.
