Fujifilm FinePix 4700 Zoom Speaker Replacement

Geschrieben von: Lawrence Yang
  • Kommentare: 0
Fujifilm FinePix 4700 Zoom Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

In order to access the speakers, the back cover of the camera needs to first be removed and the lens needs to be taken out.

  1. wsYj1rAy1Mqy3gox
    wsYj1rAy1Mqy3gox
    oORaXMlagnkxVfhd
    JLK4wZiN2gIRbSVT

    • Use the Phillips #00 screwdriver to remove the 7 screws on the sides of the camera:

    • Four 3.95mm Phillips screws located on the bottom of the camera

    • Two 3.95mm Phillips screws located on the right side of the camera

    • One 3.95mm Phillips screw located on the left side of the camera

  2. moFRFNJiWPWTPUKU

    • Slide open the battery compartment cover with your thumb.

  3. iEiOyCa2Hy4STTvD
    iEiOyCa2Hy4STTvD
    i4kS5paLl6RbBHa2
    OT4El5UHDoVhICFe

    • Wedge the edge of the spudger between the front and back case, near the corner of the flash.

    • Carefully run the spudger along the right edge of the camera, creating an opening.

    • Insert the spudger into the left side of the camera, above the screwhole. Then carefully run it along this edge.

  4. FgdipjLB2EnZW13F
    FgdipjLB2EnZW13F
    KBvUw1H5ivfLdqvV

    • Watch out for the orange ribbon that is still attached to the back cover when you lift it up. It is very delicate and might rip.

    • Slowly lift the back cover straight up, lightly jiggling it if necessary.

    • Remove the battery compartment cover.

  5. nxHQCj55ExpoNrmw

    • Gently insert the spudger under the clip holding the orange ribbon. The clip should lift up and the ribbon will slide out.

    • This step will free the back cover from the rest of the camera.

  6. L416umfdFVvfxcR6

    • Pull gently when removing the speaker so you don't rip the wire attached to it.

    • Use the tweezers to grab the speaker (located on left side of the camera) and pull straight up.

    • The speaker will still be connected to the motherboard, but it will not be attached to the front case.

  7. CJOBGwLDRhQ2Oe2X

    • Use the tweezers to pull gently on the small orange ribbon, located in upper left hand corner near the flash, to remove the square insert.

  8. vBRdsFD4QUEYqYYY

    • Use your fingers to slowly pull the flash straight up.

    • The step may take a little jiggling.

  9. UfZtQUpl24SDa3OM
    UfZtQUpl24SDa3OM
    TqHN3EIclxy5vObG

    • Do not fully separate the motherboard unit from the front cover. There is still a ribbon attached and it will rip.

    • Slightly separate the front cover from the motherboard unit (which consists of the motherboard, speaker, screen, and battery compartment).

    • Rotate the bottom portion of the motherboard unit (the screen and battery compartment) over the lens unit.

  10. kSYgpMT5WtihZAsc

    • Use your fingers to remove the tripod mount.

  11. LWbkntWYPVQdJPWi
    LWbkntWYPVQdJPWi
    jQPeRjPmARiLGrvm
    mxXhmbbxAmwM4Uu4

    • Be gentle when undoing the ribbon clips. They break easily.

    • Gently stick the spudger under the ribbon clips and lift them up.

    • Use the tweezers to pull both ribbons out of the ribbon clips.

    • The motherboard unit should now be free from the rest of the camera.

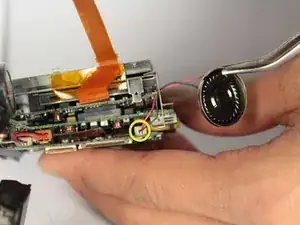

  12. BiwOkK5QYCWMHkLk

    • Locate the wire running from the speaker unit to the motherboard.

    • This is where the power plug for the speaker is located.

  13. Tsu2mI2WxMJlfwab
    Tsu2mI2WxMJlfwab
    MKyUbafqVunmYohg

    • Use the tweezers to grab the speaker wires close to the motherboard.

    • Pull speaker wire straight out.

    • The speaker should now be free from the rest of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
