Fujifilm FinePix AX665 Lens Assembly and Gears Replacement Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

The camera can not take a proper picture if the gears in the lens are broken or worn out. The replacement of the gears will ensure the proper movement of the lens and the quality of the pictures. If the lens of your camera sticks or will not move when you try zooming in or out, follow this guide to safely replace the lens assembly and gears.

The camera will be completely open during this repair. Follow the pictures carefully to make sure you are working with the correct parts

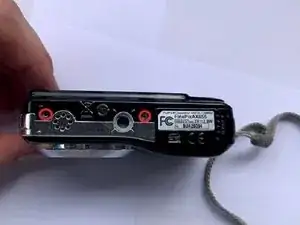

  1. phJHrWJOnDV2hiqS
    phJHrWJOnDV2hiqS
    ylDVofcLHYfxeNTE
    GHWCTXcXWIKZKoKP

    • Use a #00 screwdriver to remove all six screws holding the camera case together.

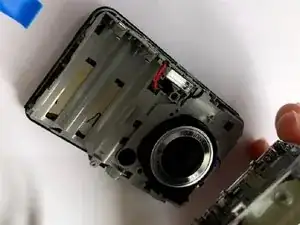

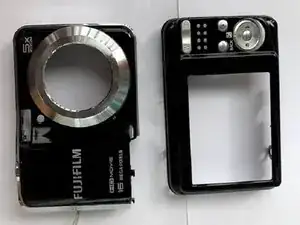

  2. ixBLJY1CeUHsbBOX
    ixBLJY1CeUHsbBOX
    cWaHg2GcJilJsrWl
    XekxoNICVJRdjIOH

    • Use a plastic pick to separate the two sections of the camera.

  3. VKvW411TXMZcrWDJ
    VKvW411TXMZcrWDJ
    W1wBpRCY6kI4Y1Dt

    • Remove the ribbon cable from the side of logic board.

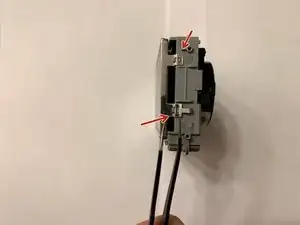

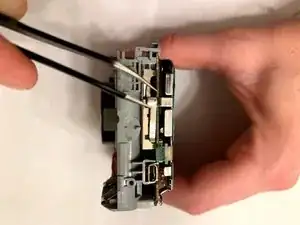

  4. B45xYsm3FMWqFBhc
    B45xYsm3FMWqFBhc
    Spa5aOj5cAqJo3NI

    • Remove the four metal clips around the camera until you can feel the metal bracket that holds the screen pop off.

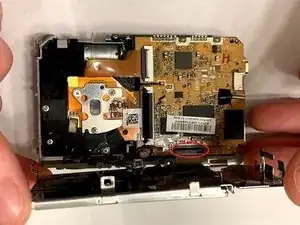

  5. QKNOCsUYRRKnUwYn
    QKNOCsUYRRKnUwYn
    fDTCxrvheW6uTmuQ

    • Carefully flip the screen and remove the ribbon cable attaching it to the logic board.

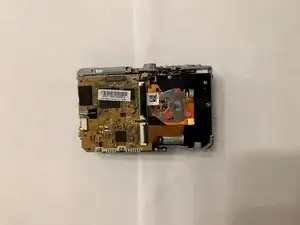

  6. DkC6la4g2BYFTWCS

    • Remove the three screws holding the sensor.

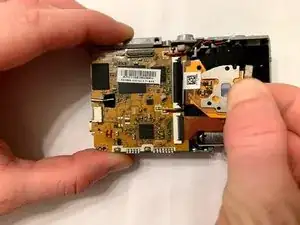

  7. Dx2UodDcwMiqkvko

    • Remove the sensor ribbon cable from the logic board.

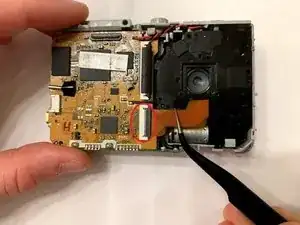

  8. 5iApcpANqsyPDPBs

    • Remove the lens housing ribbon cable.

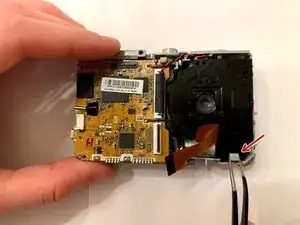

  9. k3BxZNgYU21HMxjp

    • Remove the lens housing by moving the gray clip holding the unit.

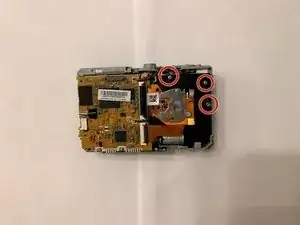

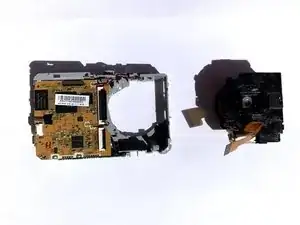

  10. wusLXduYGOywCRWa
    wusLXduYGOywCRWa
    2PIWmlKMDQGKmekW
    GIdu6CrJF2rgKITL

    • Remove the three screws holding the cover of the lens housing.

    • Carefully remove the lens housing top cover.

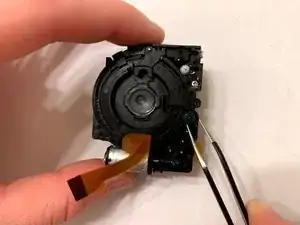

  11. BGJs3ZeyevXjc1dD

    • Inspect all the gears and make sure they are functioning correctly.

    • Replace the gears as needed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
