Einleitung

  1. d1o5PLWpeYGyQ2Uf
    d1o5PLWpeYGyQ2Uf
    HXEURXfC2Bvy1ToT
    TPqMgIxTl2CLEYQb

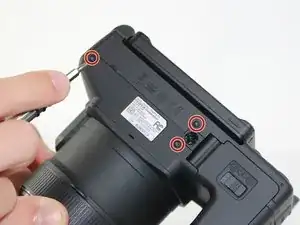

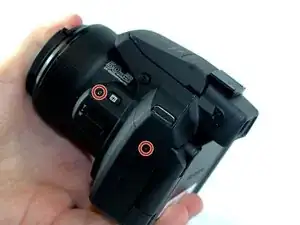

    • Remove the 7 screws on the perimeter of the camera body.

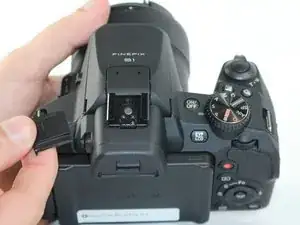

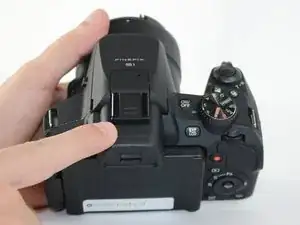

  2. GVIXWYLrntRW1KYC
    GVIXWYLrntRW1KYC
    OjaUJvAwbnIUW2lc
    Hq5kP3ZduxKtIA5u

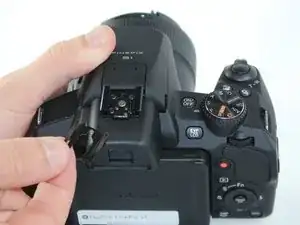

    • Remove the flash accessory cap.

    • Remove the spacer covering the screws under the flash accessory cap.

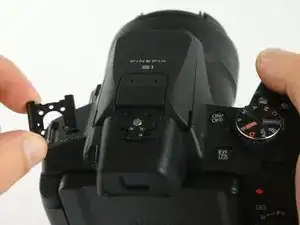

  3. hRudAFfPdSpUY3bg
    hRudAFfPdSpUY3bg
    iCLJuVZG1s3LyO1Z
    3cf1C6oGXkShMQe6

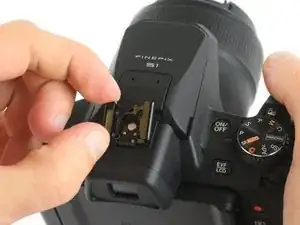

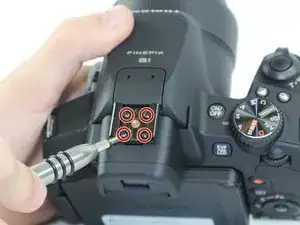

    • Remove the 4 screws from the inside of the flash accessory slot.

    • Pull off the flash accessory slot.

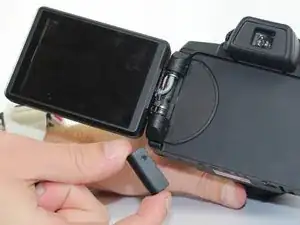

  4. PdSi5BRnAwDnTuDY
    PdSi5BRnAwDnTuDY
    J4UrDNC6y3EMNLKC

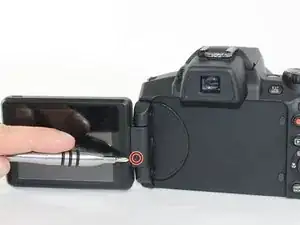

    • Remove the screw from LCD Screen hinge cover.

    • Remove the LCD Screen hinge cover.

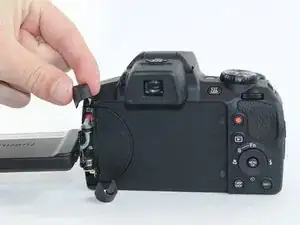

  5. FNmma5QsatCnoe3x
    FNmma5QsatCnoe3x
    M6JbVe2AdjdvFkaN
    GPGeGVoYLljYffJH

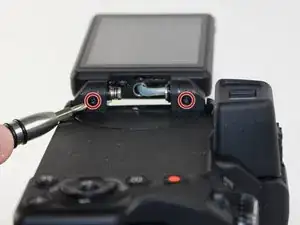

    • Remove the 3 screws located on the LCD screen hinge.

    • Remove the caps from both ends of the LCD screen hinge by lifting them off.

  6. 2Goengke4bjPSHiG

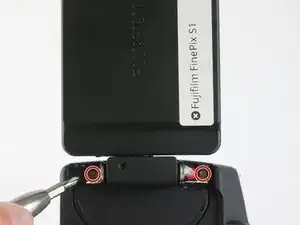

    • Remove the 2 screws from under the LCD hinge caps.

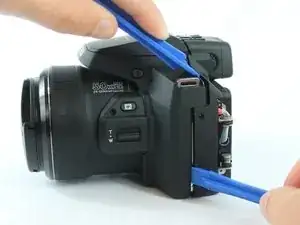

  7. nkvnTJ5nCFvesJxC
    nkvnTJ5nCFvesJxC
    3CUUGSYwFblHuYlP
    Ew6gRpDShqYhXeuQ

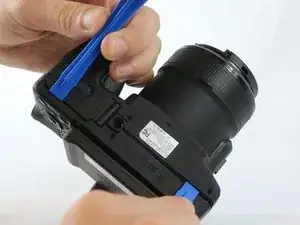

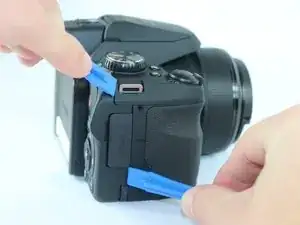

    • Pry apart the back body from the rest of the camera.

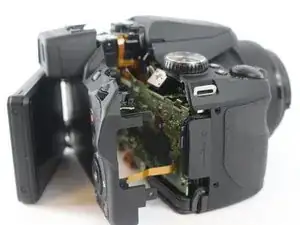

  8. vVsBZck6Ru2OVmyO
    vVsBZck6Ru2OVmyO
    XT4BcBuRA5LPBNIV

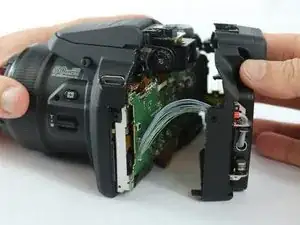

    • Carefully pull the back body off of the camera.

    • Make sure to not yank off the connections from the body to the motherboard.

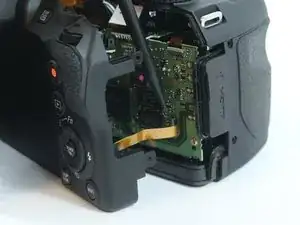

  9. EBEP6OVkGw5X4E6x
    EBEP6OVkGw5X4E6x
    2IwwSrF2GFBavh4p
    GOnlfOgG53rWJOAL

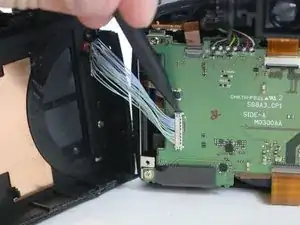

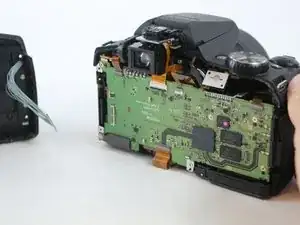

    • Use a spudger to lift up on the tab, releasing the yellow wire strip.

    • Use a spudger to lift up on the side tab, releasing the blue wire connection.

Abschluss

To reassemble your device, follow these instructions in reverse order.
