Fujifilm FinePix S1 LCD Screen Replacement

Geschrieben von: Brandon Benavente
  • Kommentare: 0
Fujifilm FinePix S1 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

Following this guide involves the Fujifilm FinePix S1 and is moderately difficult.

  1. cxF4EvM1OZFKl2As
    cxF4EvM1OZFKl2As
    EPHxkoArHJRtPYYj
    Sv6vbLQ21VulELCC

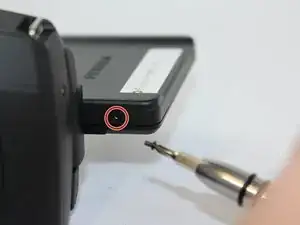

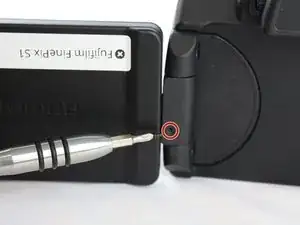

    • Remove the 4 screws surrounding the LCD screen.

  2. R6AGMrjdIYdQhSII

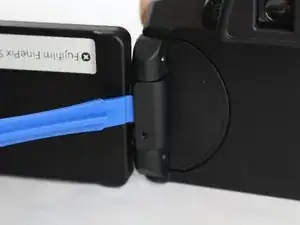

    • Use an opening tool to remove the casing on the hinge of the LCD screen.

  3. MeZPDDAJJeokDTSU
    MeZPDDAJJeokDTSU
    BJWcq4FhBHW1kjXO

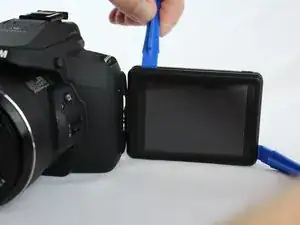

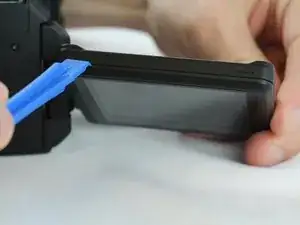

    • Use an opening tool to pry apart the LCD screen casing and remove the casing.

  4. NhIn2cSGTbLcq514

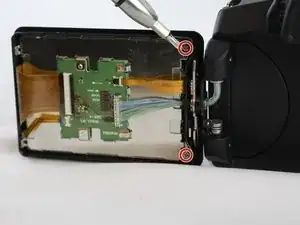

    • Remove the 2 screws located on the inner corners of the inside of the LCD screen.

  5. GgurQTkA5qkS6Z45
    GgurQTkA5qkS6Z45
    BZCstGjwhegJ2vjL

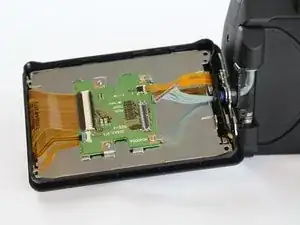

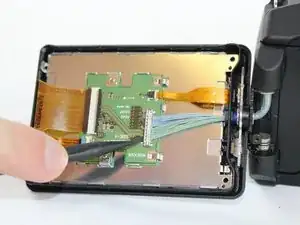

    • Disconnect the blue cable set by carefully prying it off with a spudger.

  6. AHCyTAkkyTXFYnxj
    AHCyTAkkyTXFYnxj
    STkAwYlAOy1marEy

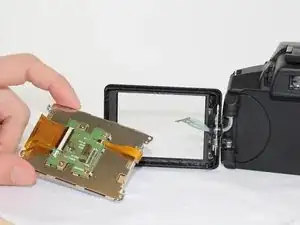

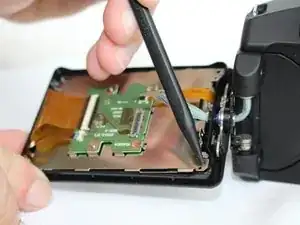

    • Use a spudger to lift the LCD screen out of its placement and remove it from the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
